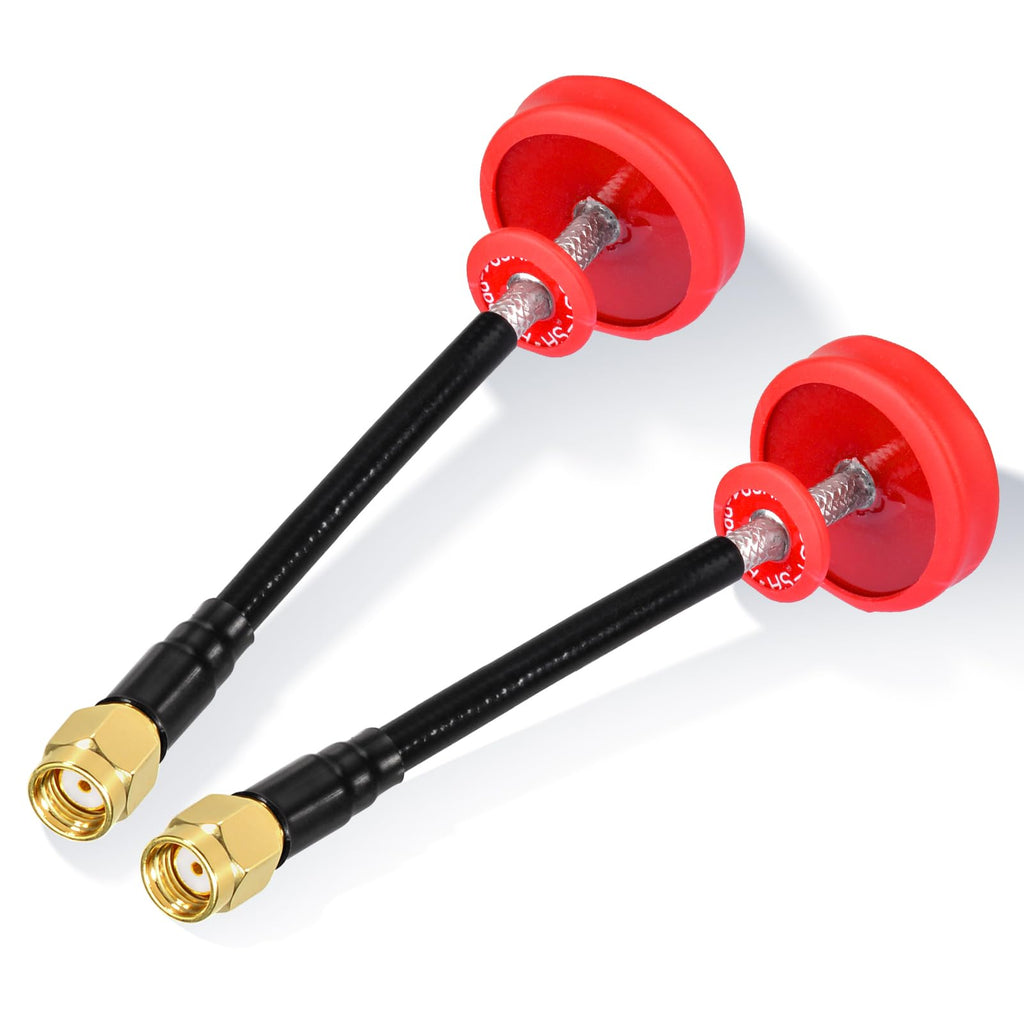

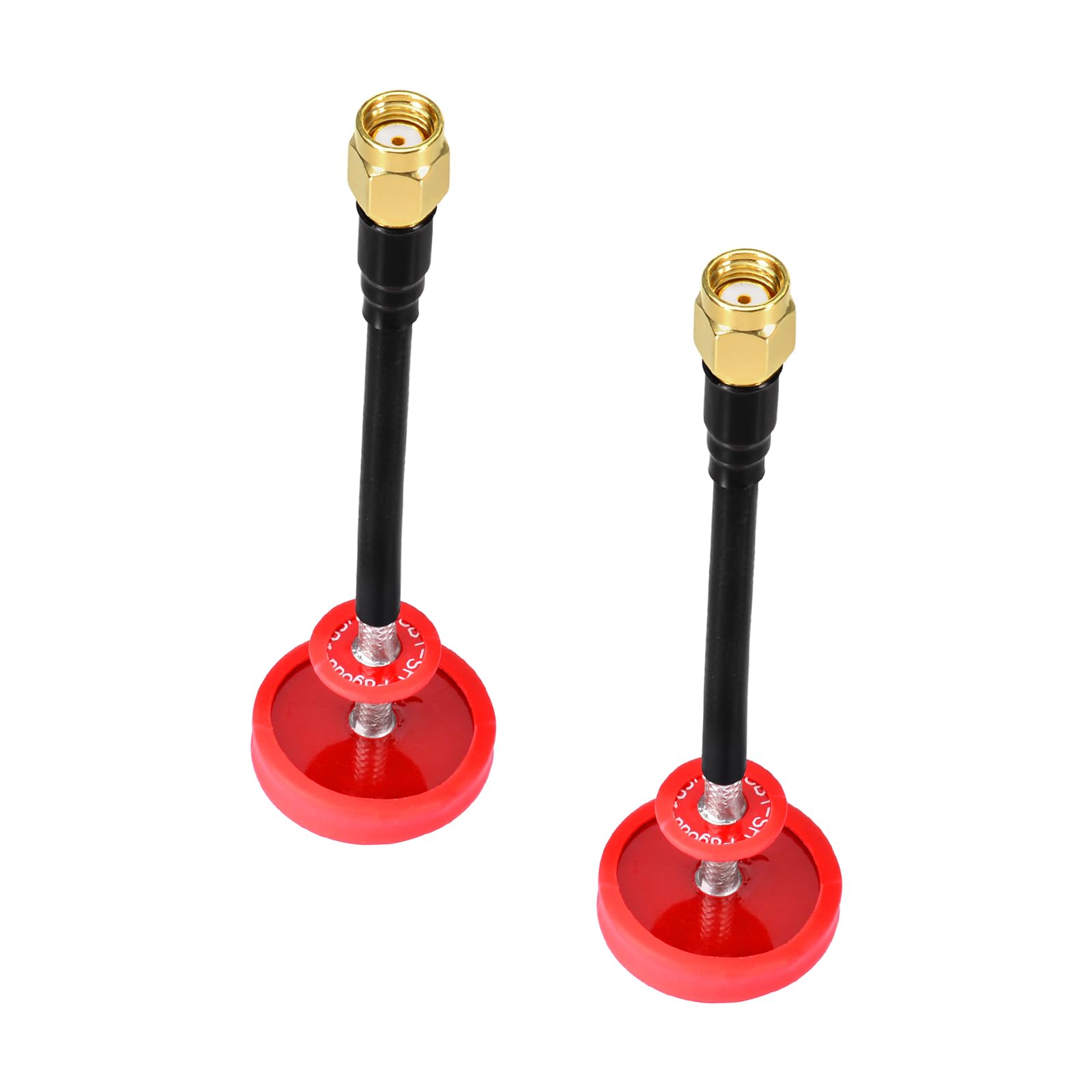

- Flat Panel PHCP Omnidirectional Pagoda Antennas, 5.8GHz, 2.6dbi
- Stable 5.8GHz Signal: Operating on the 5150-5850MHz band, this antenna provides a reliable video link by reducing interference and maintaining a stable connection over distance

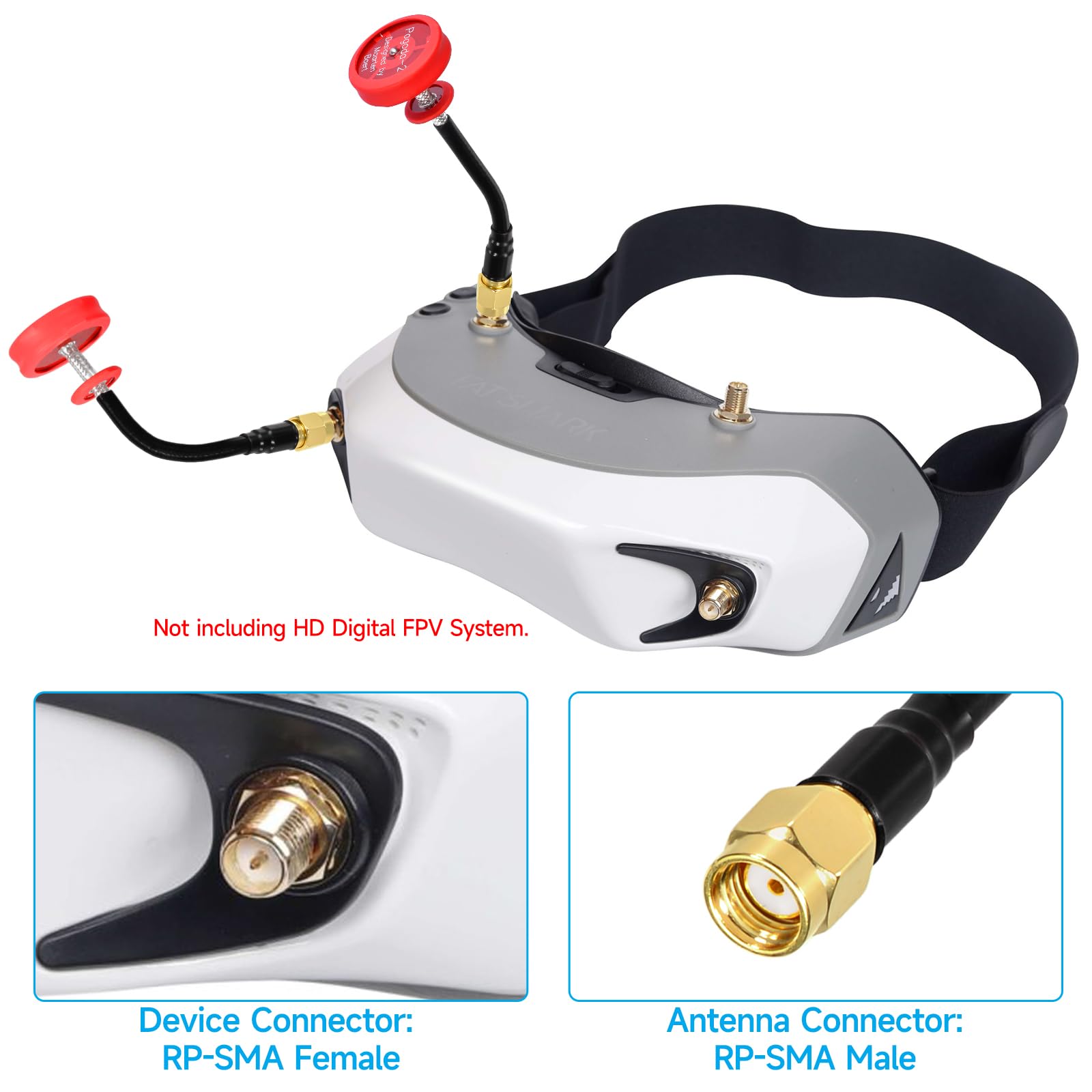

- Application: Designed for most 5.8Ghz FPV system with a RP-SMA female port, including video transmitters (VTX), goggles, and receivers. A practical upgrade for drones and other RC vehicles

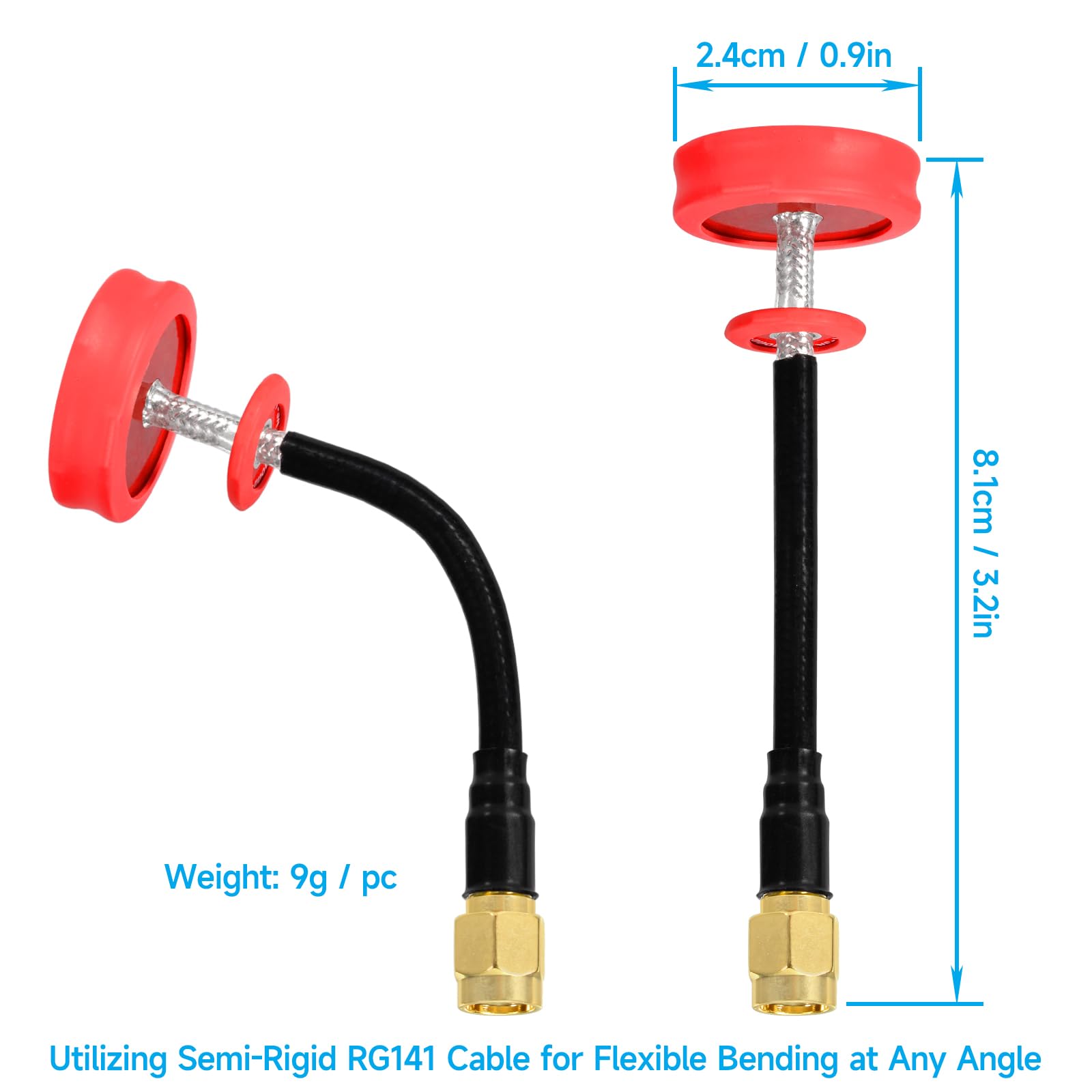

- Durable & Adjustable Build: The weather-resistant ABS housing ensures durability, while the semi-rigid RG141 cable can be bent to the perfect angle and will hold its position for a stronger signal
- Lightweight Design: At 81mm long and weighing 9g per piece, this antenna adds minimal weight and bulk to your FPV setup
--------------------------------------------------
Specification:
Center frequency:5.8GHz
Bandwidth:500MHz(5.5–6.0GHz)
Gain:2.6dBi
Matching:VSWR<1.5
Axial ratio:<3db
Radiation efficiency:98%
Polarization:RHCP

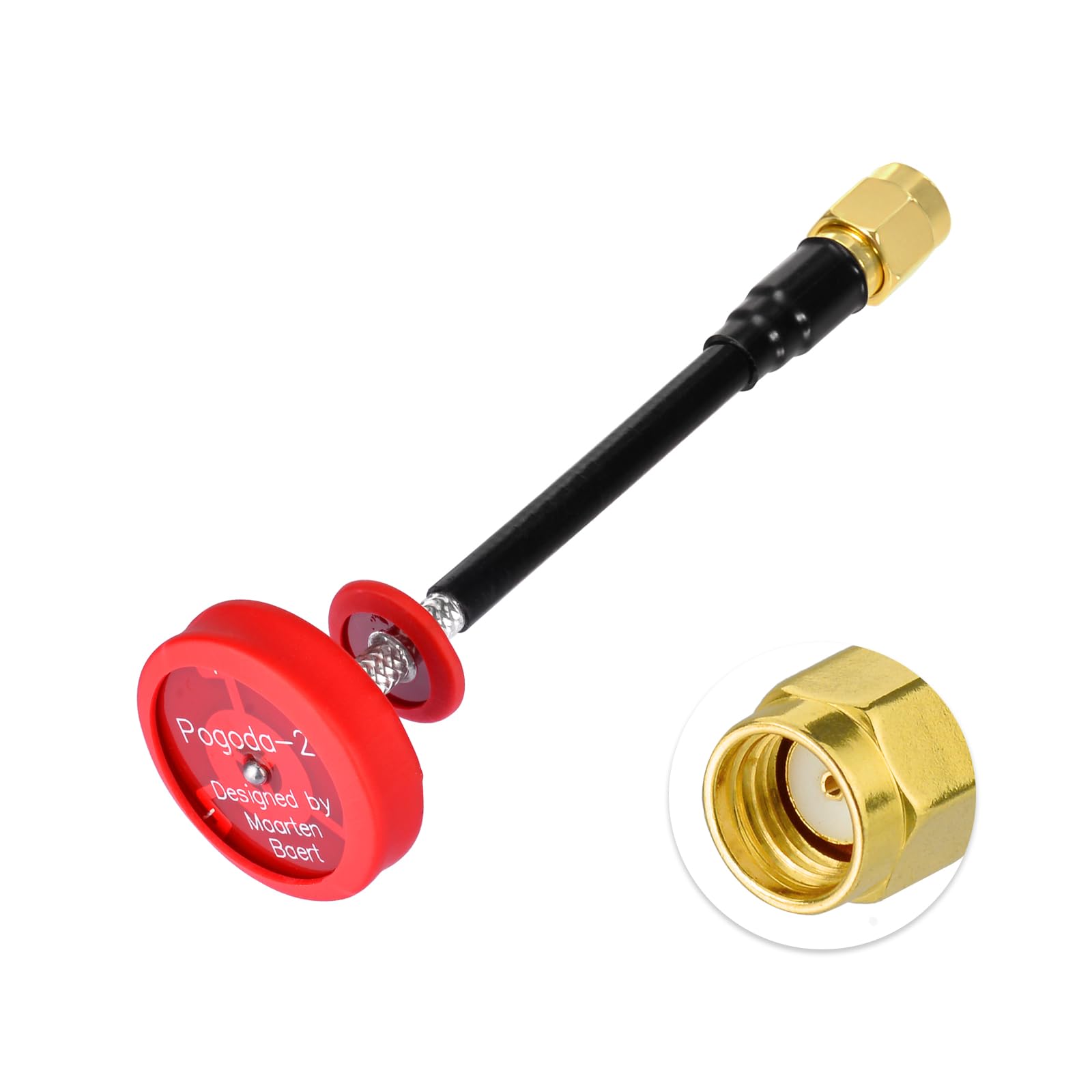

Antenna Connector:RP-SMA male
Shell material:Imported PC+ABS
Antenna Weight:9g/pc
Antenna length:80mm
Package Includes:
2pcs 5.8G RHCP FPV Antennas
