- The 2.4GHz 5GHz short WiFi antennas will assist network device get a stronger reception and a stable connection, no signal dropouts when use them
- Application: PCI PCIe network card, PC desktop computer gaming motherboard, external WiFi USB adapter,wireless network router, WLAN AP & Hotspot wireless range extender

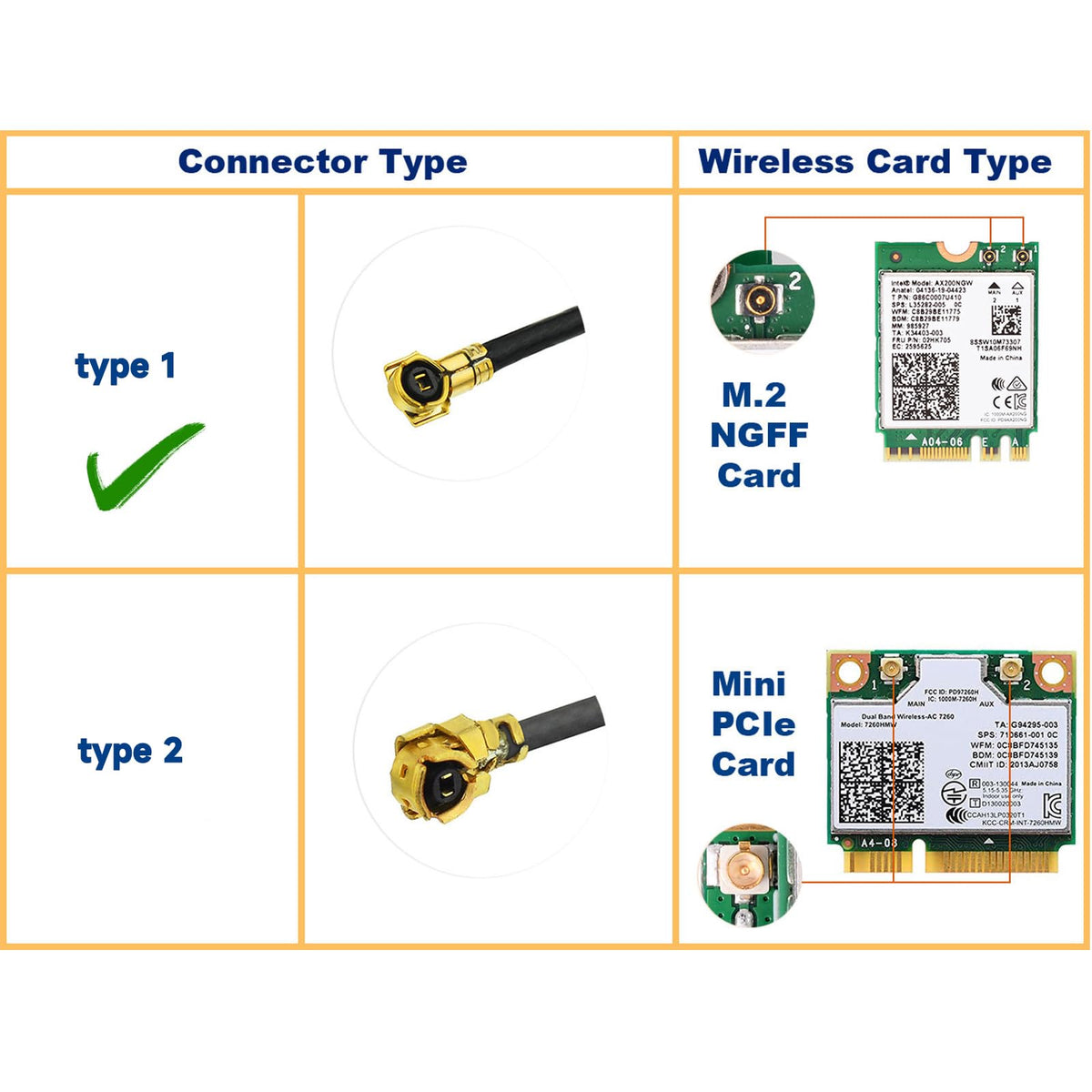

- With the pigtails, the kit is compatible with M.2 NGFF WiFi card like AX201NGW, AX200NGW, AC 9560, AC 9260, AC 8265, AC 8260, AC 7265, etc
- Save Space: the antenna is short, 1.9 inch when rotated by 90 degrees. With no base, just screw them into the port of device, don't need space on the floor or on top of the PC

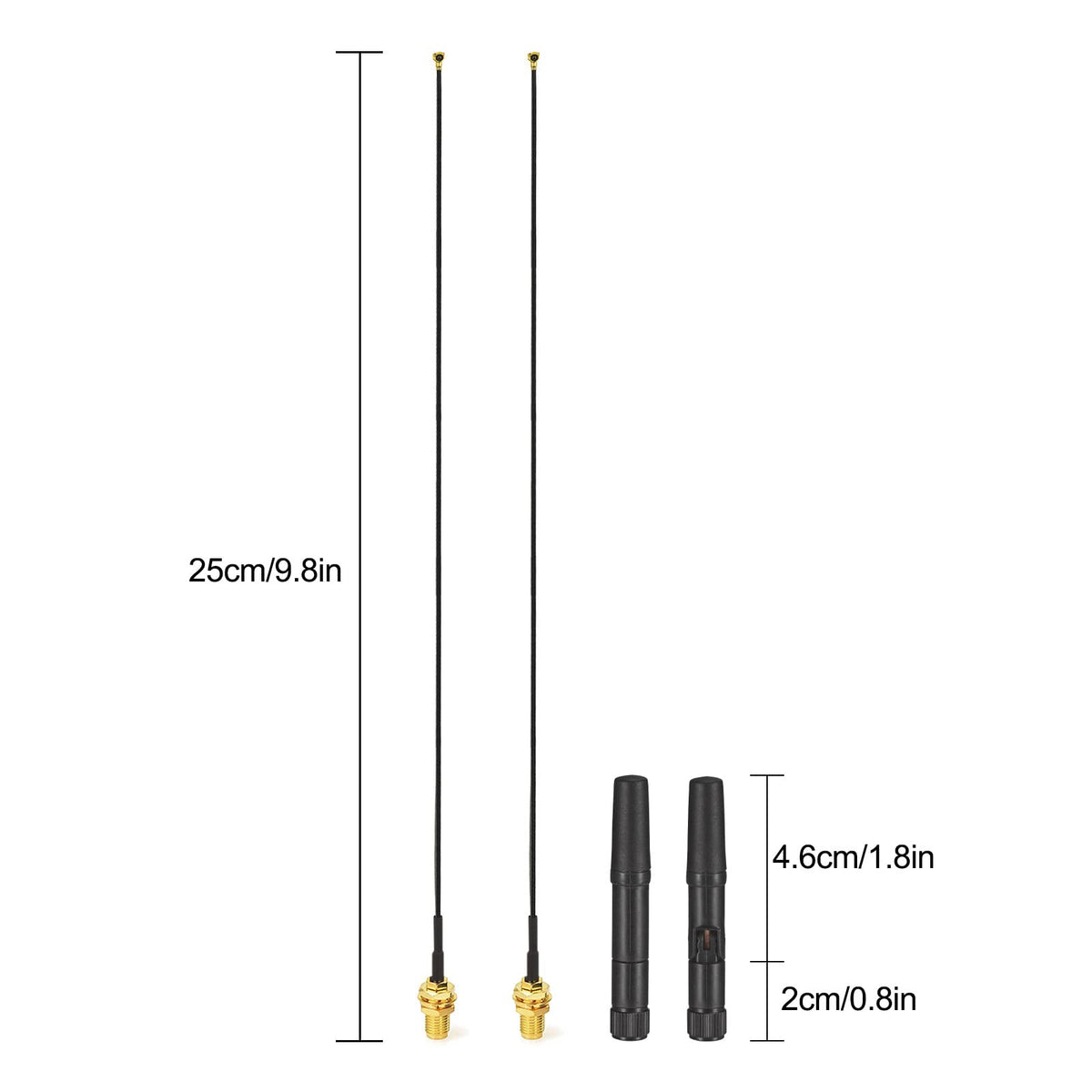

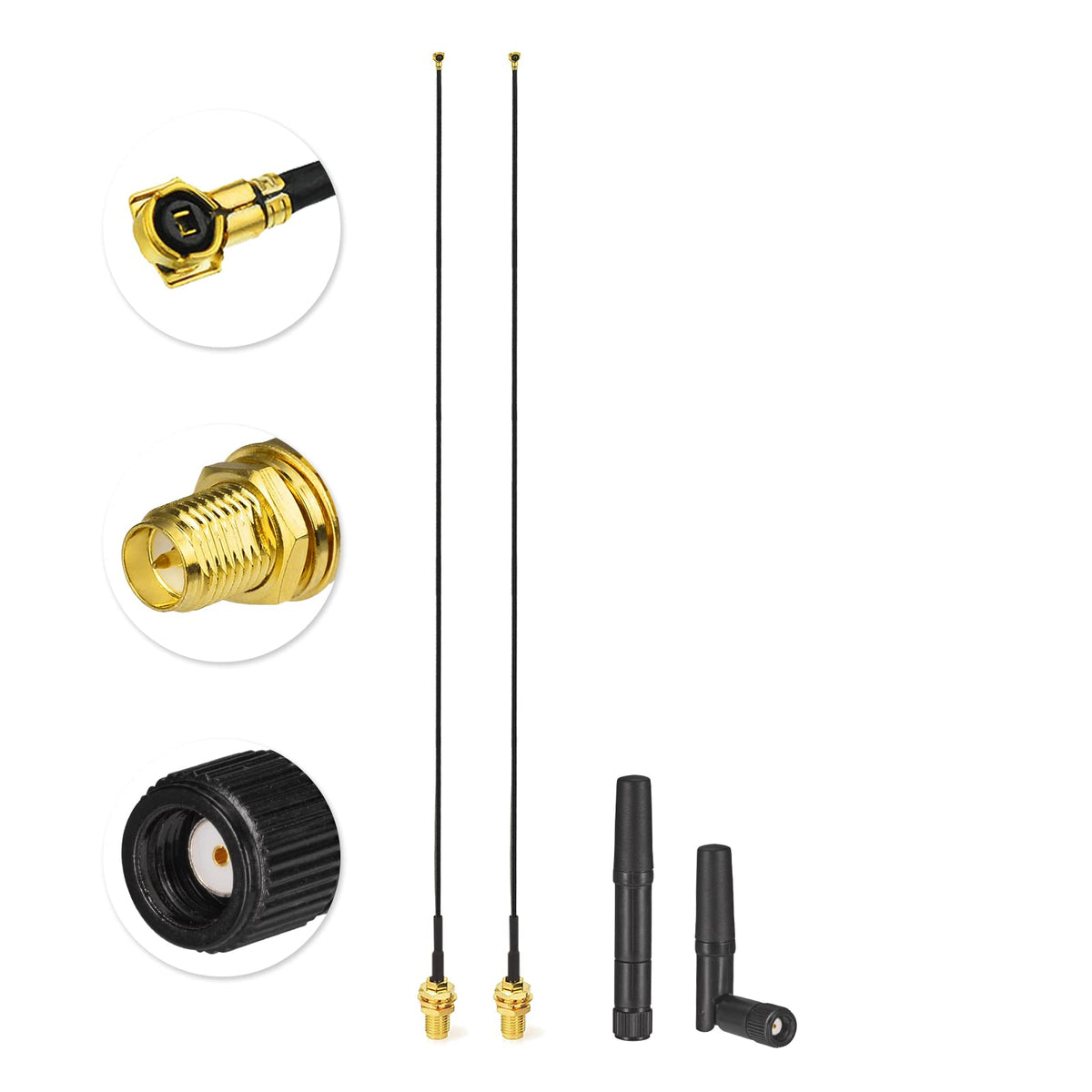

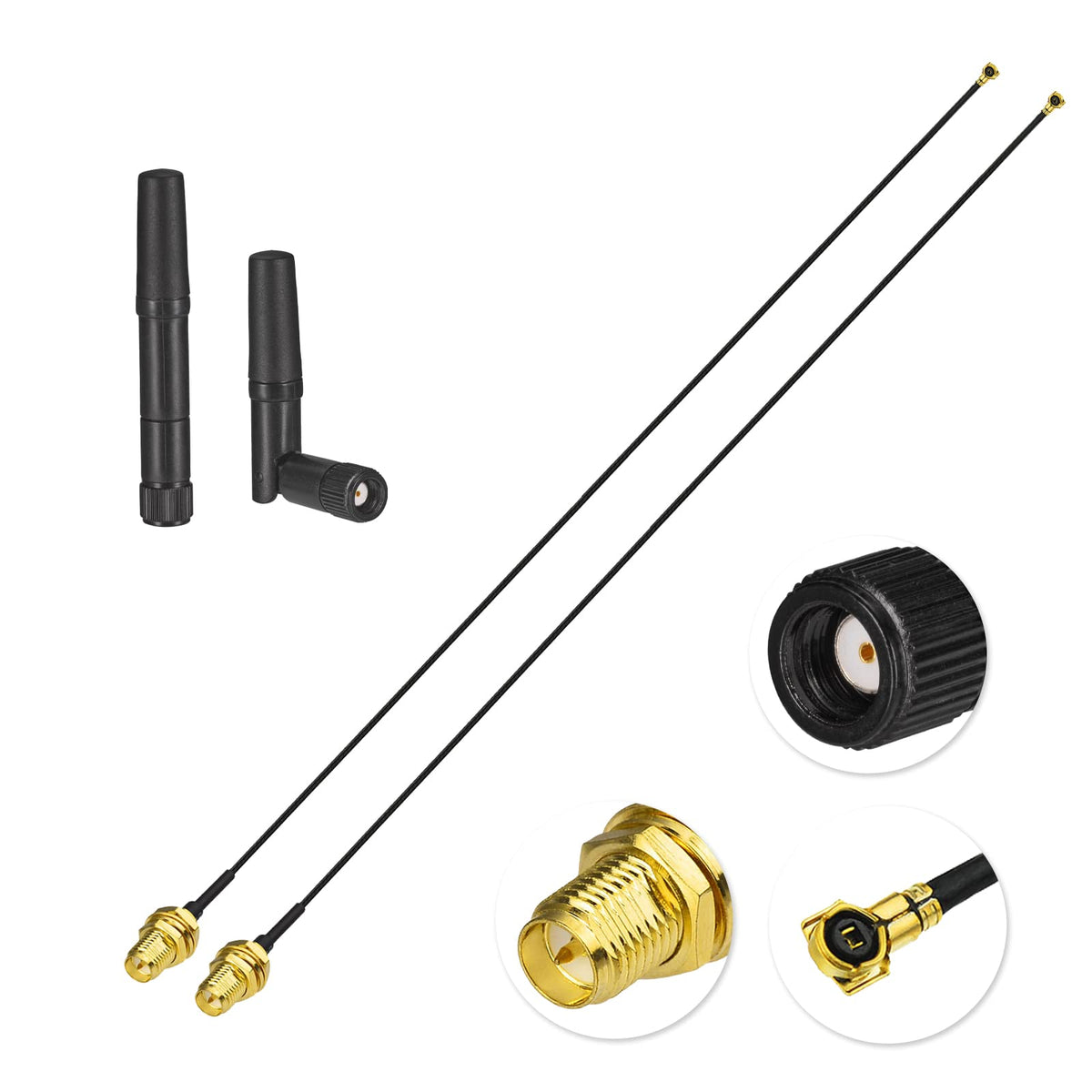

- Package Includes: 2pcs 2.4GHz 5GHz wifi antennas + 2pcs RP-SMA pigtail cables 25cm/9.8in
--------------------------------------------------
Specification
Frequency:2.4Ghz 5.8GHz
VSWR<1.8
Gain:2.15 dBi
Polarization:Vertical
Impedance:50 Ohm
Direction: Omnidirectional
Antenna Connector: RP-SMA Male ( NO Male Pin)

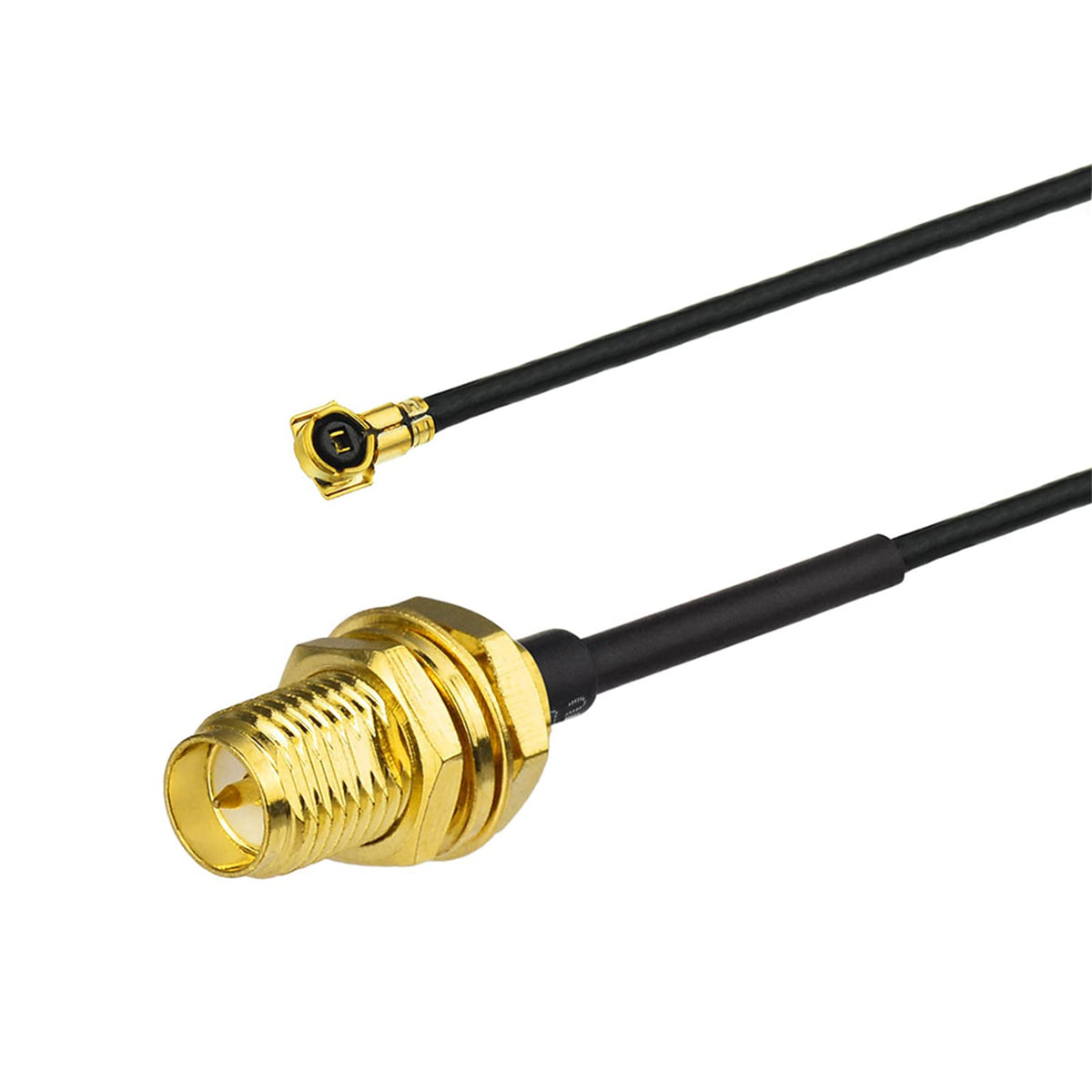

Pigtail Cable Connector:M.2 NGFF to RP-SMA female
Antenna height: 47mm / 1.85 inch ( rotated by 90 degree); 67mm /2.6 inch (straight)
Maximum input Power:50W
Feature
-Perform well with both 2.4Ghz and 5Ghz.
-Suited for 802.11a/b/g/n, 802.11ac, 802.11ax, wireless LANs, Bluetooth.
-Assist to get reliable Wi-Fi& Bluetooth connection.
-Short WiFi antenna,only 1.9 inch in length, clean and save space compared with wired antenna.
