Description
Features

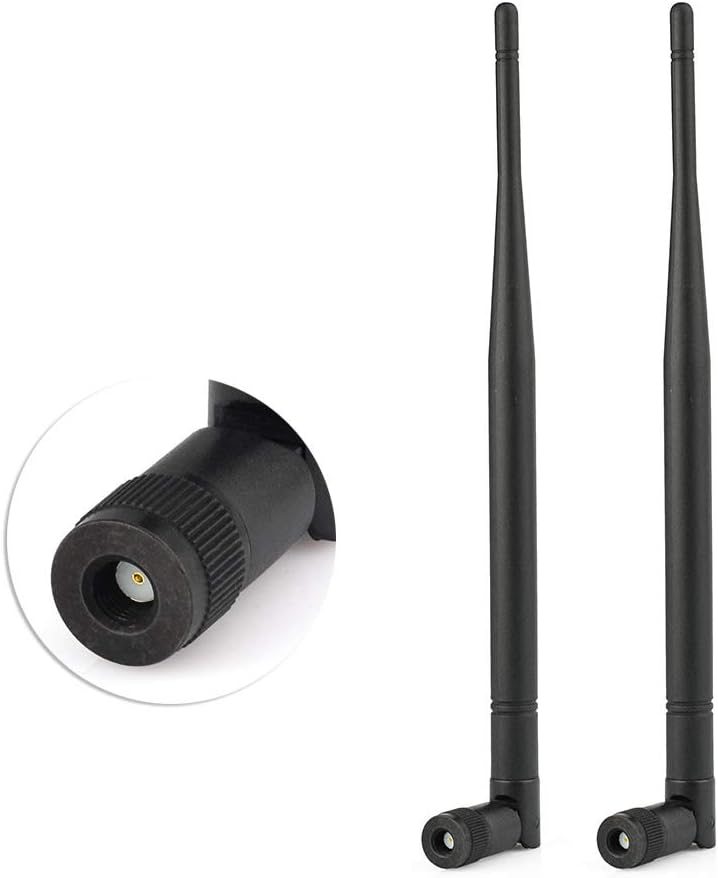

-This compact GSM900 omnidirectional "rubber-duck" GSM antenna provides broad coverage and 3.5dBi gain.
-It is a coaxial sleeve design with an omni-directional pattern.
-It is designed to transmit on the 900mhz frequencies with a top end transmission not to exceed 25 watts.Works for the current digital MOBIL systems.
Specifications
Frequency: 824-960MHz
VSWR : ≤1.5
Gain: 3.5dBi
Polarization:Vertical
Directionality: omnidirectional
Horizontal Beam Width:360°
vertical panel Beam Width:90°
Power:50W
Color:Black
Diameter:12mm
Height:243mm /9.6"
Product Overview
- Antenna: Radio
- Brand: Eightwood
- Color: 2-pack
- Impedance: 50 Ohm
- Product Dimensions: 0.47"L x 0.47"W x 9.57"H
- UPC: 607841575454
- Manufacturer: Eightwood
- Number of Items: 2
Product Features

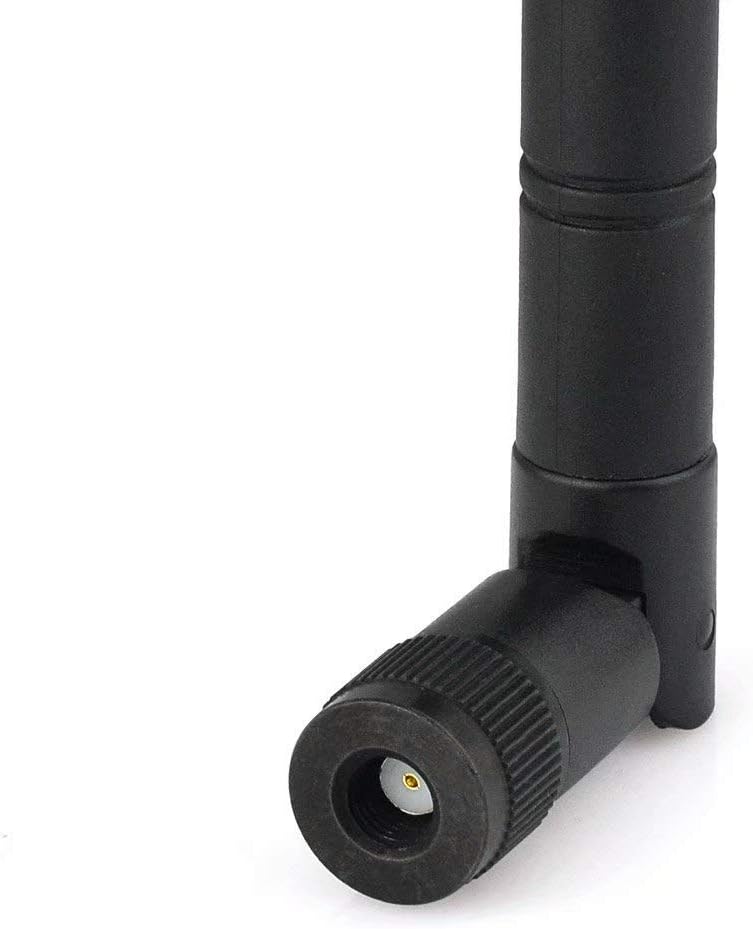

- Antenna Frequency:824-960MHz; Gain:3.5dBi; Directionality:omnidirectional; Antenna Connector:RP-SMA male (no center pin)
- Connector with tilt-and-swivel design allows the antenna to be used at different angles for getting more reception
- Application: LoRa, IoT, ISM, RFID, Zigbee
- RF antenna replacement for many access points and radios that are equipped with RP-SMA connectors including mobile, GSM wireless pay phone, fixed commercial phone, PCMCIA card, navigation device
- Package includes: 2pcs 900MHz RP-SMA antennas 50ohm
Product Information
| Wireless Type | 900 MHz Radio Frequency |
| Brand | Eightwood |
| Item model number | EWUA0066 |
| Item Weight | 2.68 ounces |
| Package Dimensions | 11.06 x 2.72 x 0.47 inches |
| Color | 2-pack |
| Manufacturer | Eightwood |
| ASIN | B07H5C5PM9 |
| Country of Origin | China |
| Is Discontinued By Manufacturer | No |
| Date First Available | September 7, 2018 |
