Superior Connectivity for Industrial IoT
4-in-1 MIMO High-Performance Antenna: Bridge the gap between cellular and local networks with this all-in-one solution. Designed for mission-critical deployments, this antenna integrates 4G LTE and the latest WiFi 6E technologies into a single, ruggedized IP65 housing.
🚀 High-Speed Data
2x Cellular & 2x WiFi 6E leads provide a complete MIMO solution for maximum throughput.
🛡️ Industrial Durability
IP65-rated waterproof and dustproof housing built for harsh outdoor environments.
📡 Future-Proof

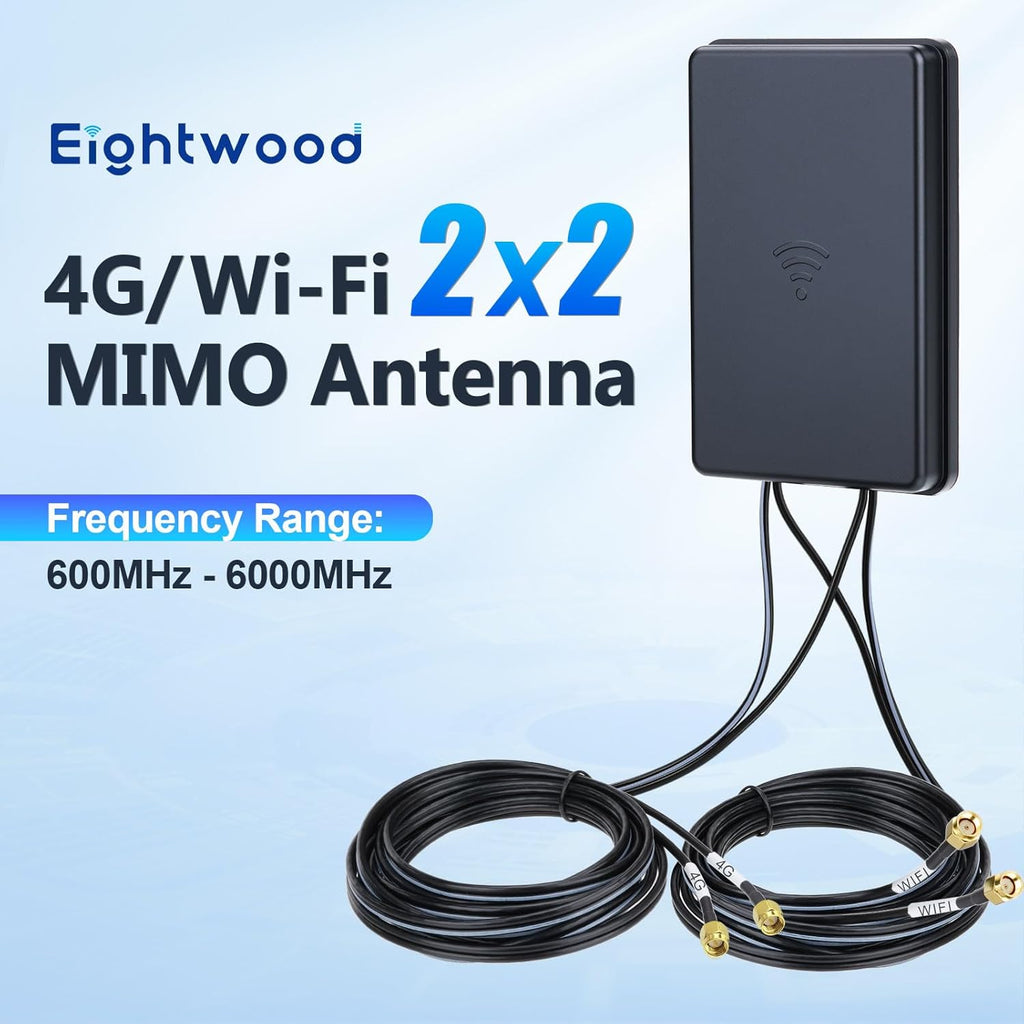

600MHz to 6000MHz wide-band support, including 5G Sub-6GHz and WiFi 6E spectrum.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 600-6000MHz (Sub-6GHz, 4G LTE, WiFi 6E) |

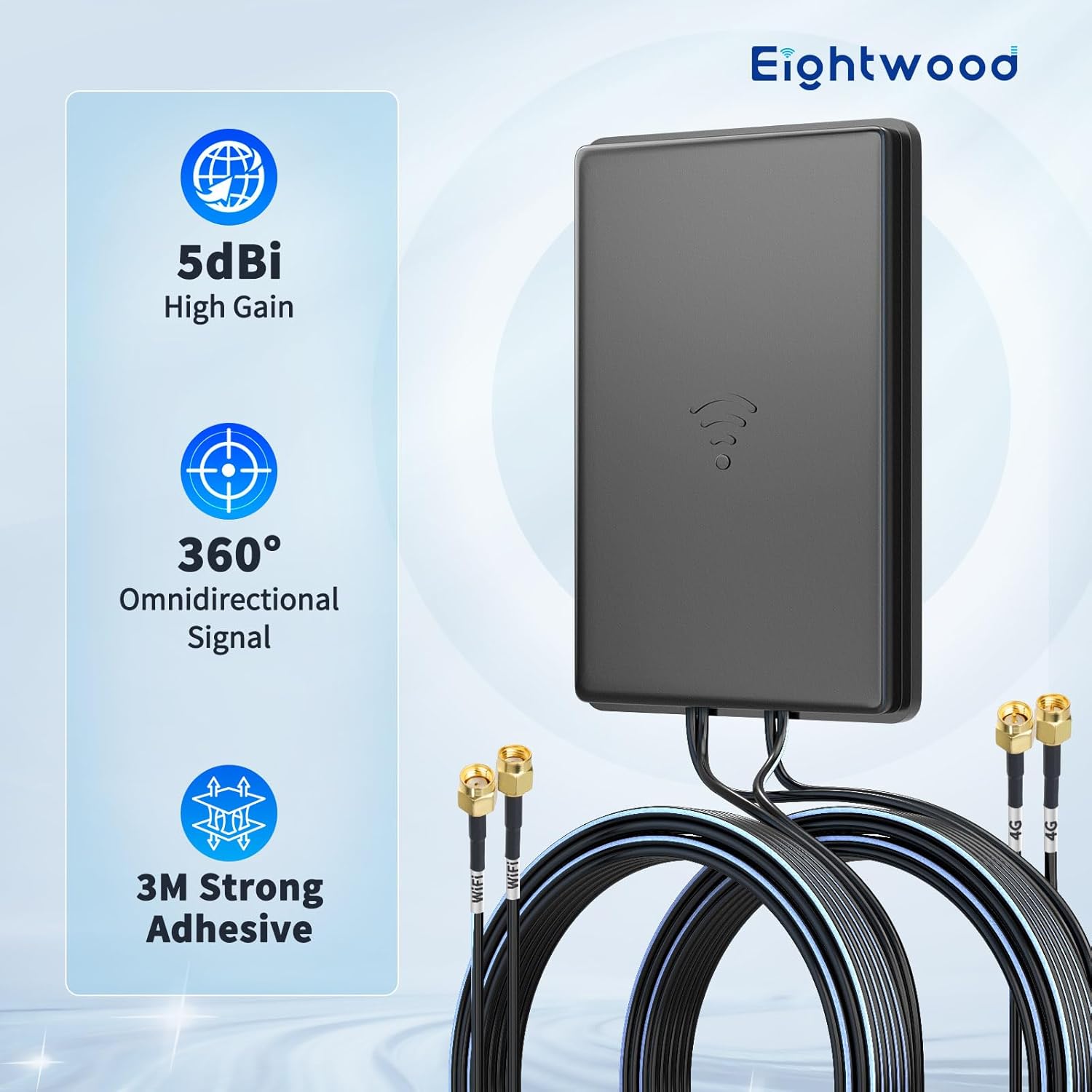

| Gain / VSWR | 5 dBi / ≤ 2.0 |
| Impedance | 50 Ohm |
| Connectors | 2x SMA Male (LTE), 2x RP-SMA Male (WiFi) |

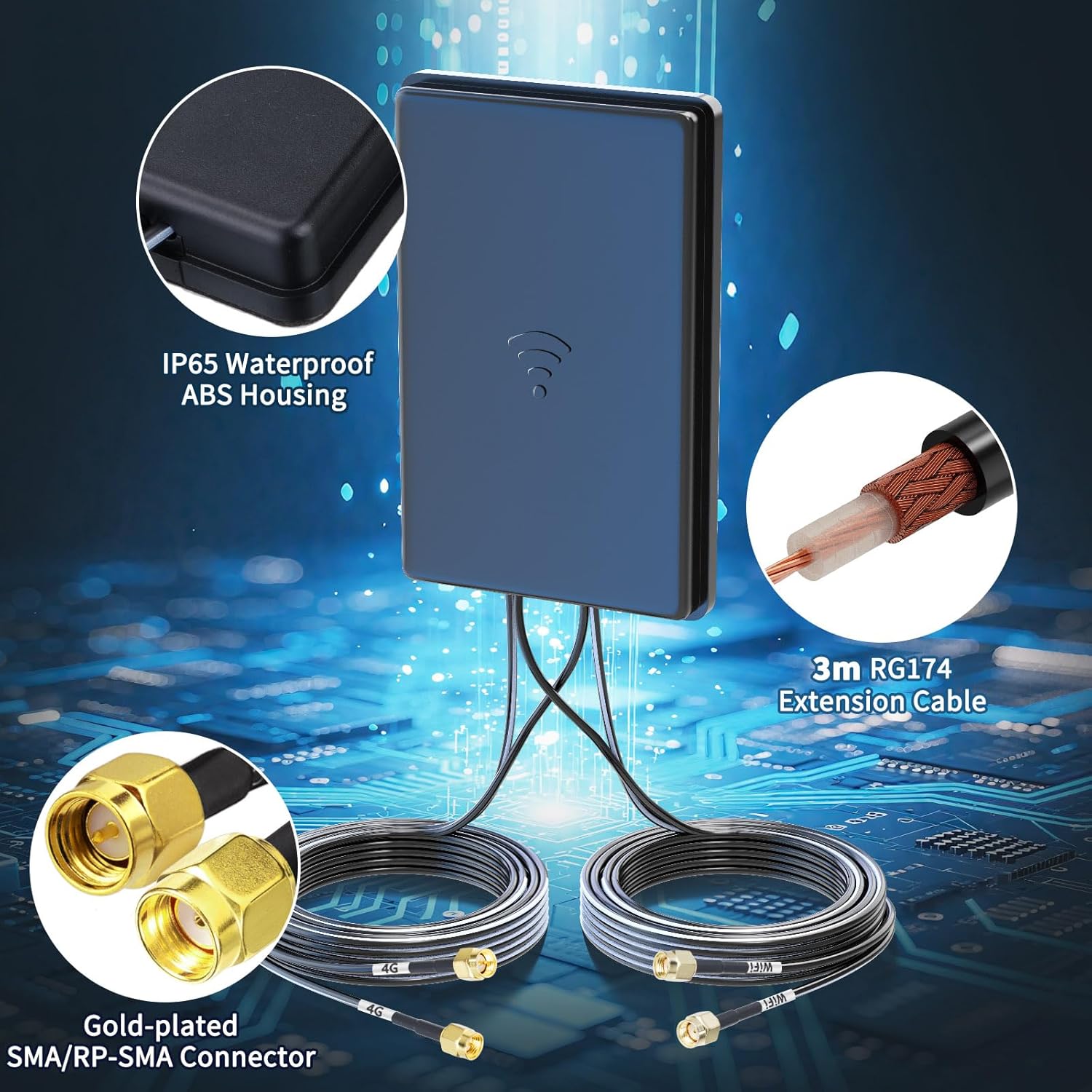

| Cable / Transmission | RG174 (Low Loss) with Gold-plated Connectors |
| Ingress Protection | IP65 Waterproof |
Universal Compatibility
Cellular: Compatible with 4G LTE/5G routers from Peplink, Cradlepoint, Sierra Wireless, and Teltonika.
WiFi: Designed for WiFi 6E Access Points and IoT Gateways (using RP-SMA ports).
* Not suitable for BNC or N-Type connector devices without an adapter.
Package Includes

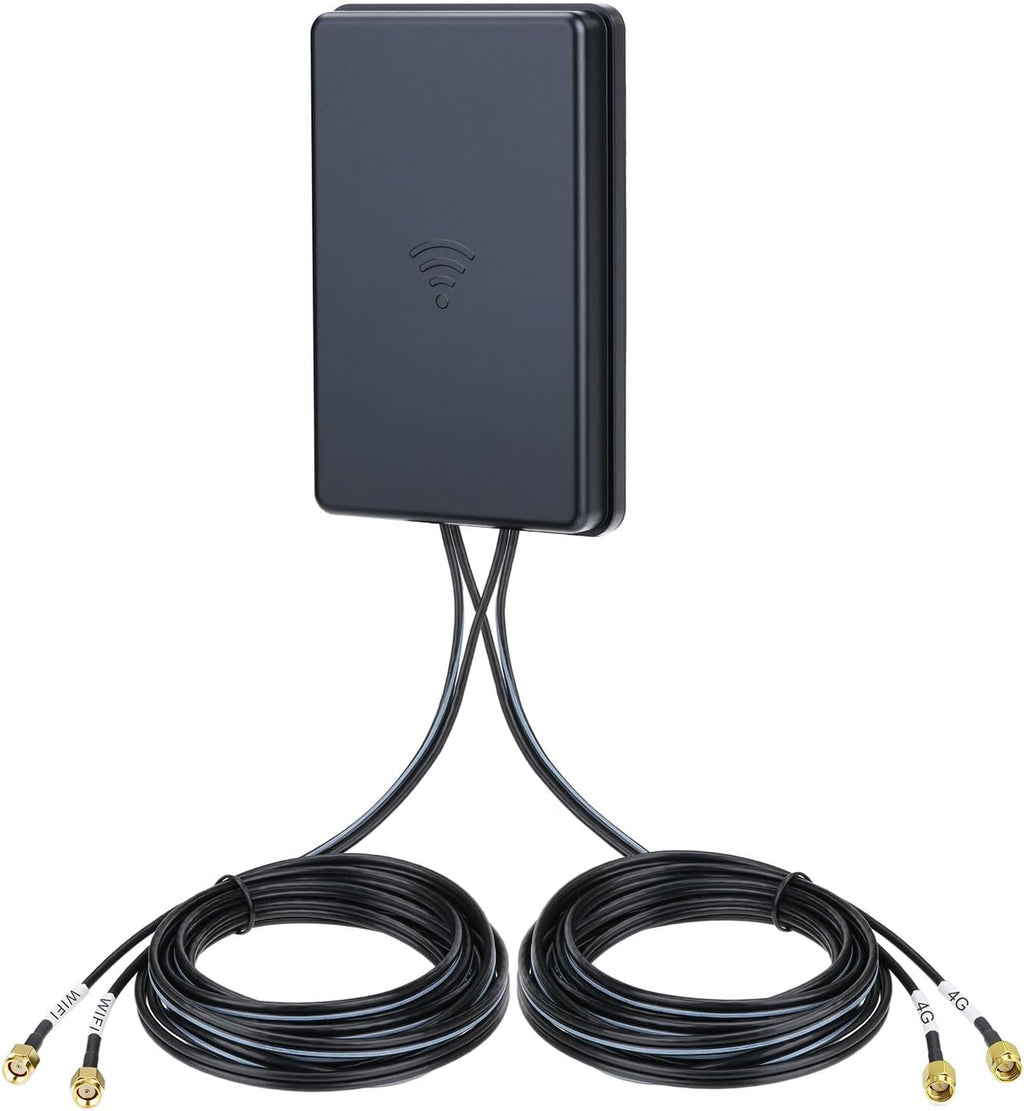

- 1 x 4-in-1 MIMO Combo Antenna
- Integrated Low-Loss Cables
- Essential Mounting Hardware
