Description
About this item

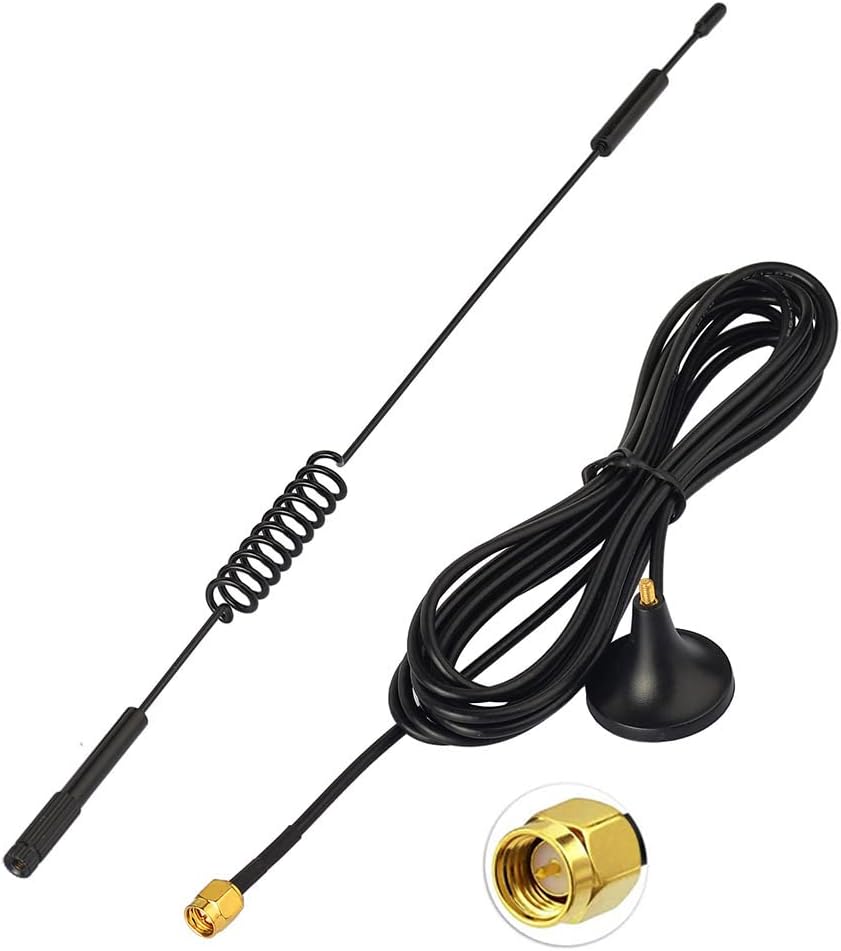

- Frequency range: 868 MHz, antenna connection: SMA plug, gain: 7 dBi, radiation: omnidirectional
- Antenna length: 12.25 inches/31.12 cm, cable length: 300 cm, input impedance: 50 ohm, material: nickel-plated brass
- 868 MHz Antenna for Use in Smart Home Raspberry Pi HM MOD RPI PCB Kit ELV Kit RaspberryMatic PiVCCU NFC RFID Module ISM Band LTE GSM Wlan Ham Radio Raspberrymatic Homematic-mann
- Applications: Arduino SIM868 GSM GPRS GPS Module Homematic CCU3,CCU2,CCU1,Charly,Wireless Module from ELV,RaspberryMatic Raspberry Pi CC1101 Dimmer 2 Bypass 2 Motion Flood Smoke Door/Window Sensor Home Intelligence

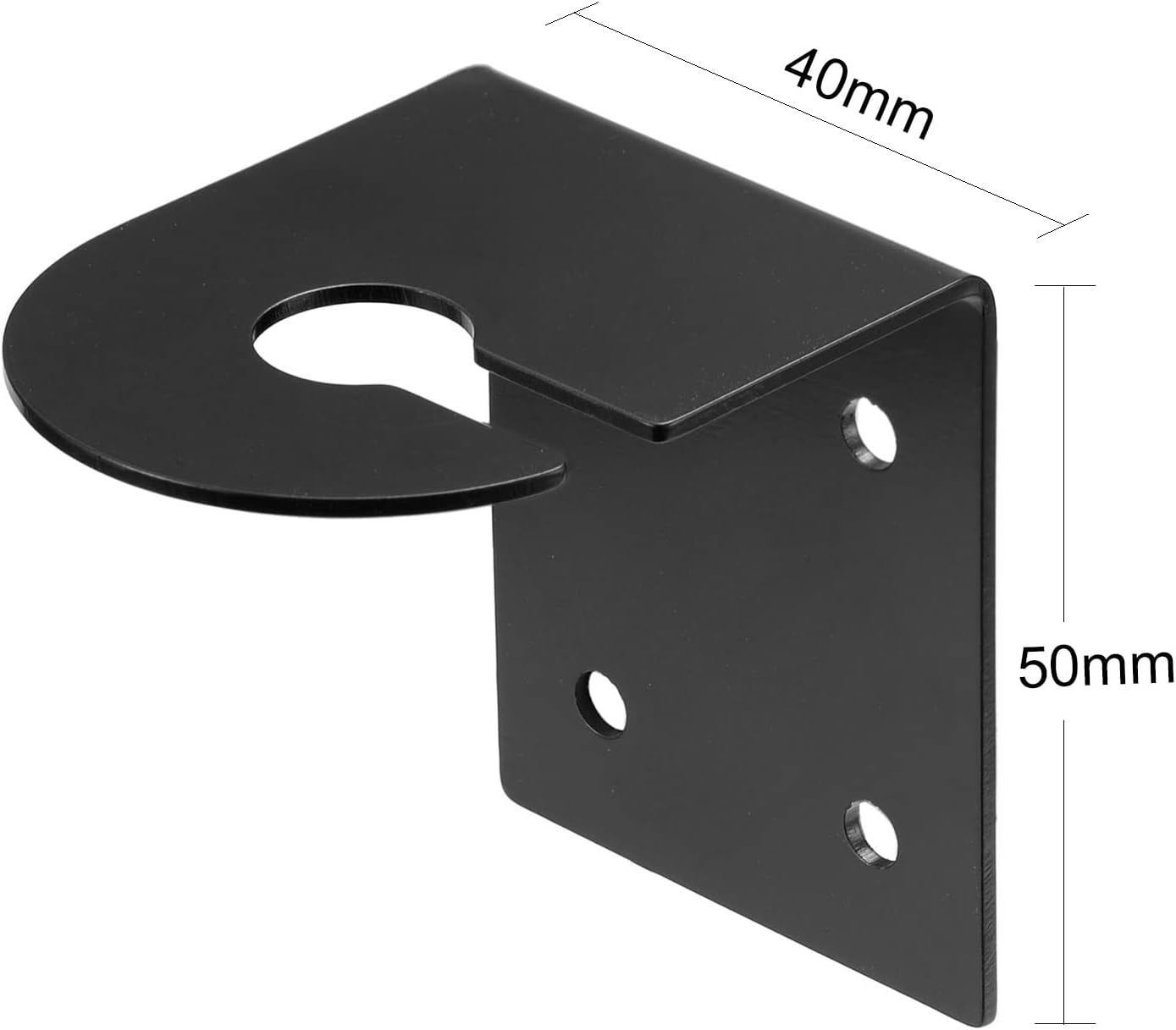

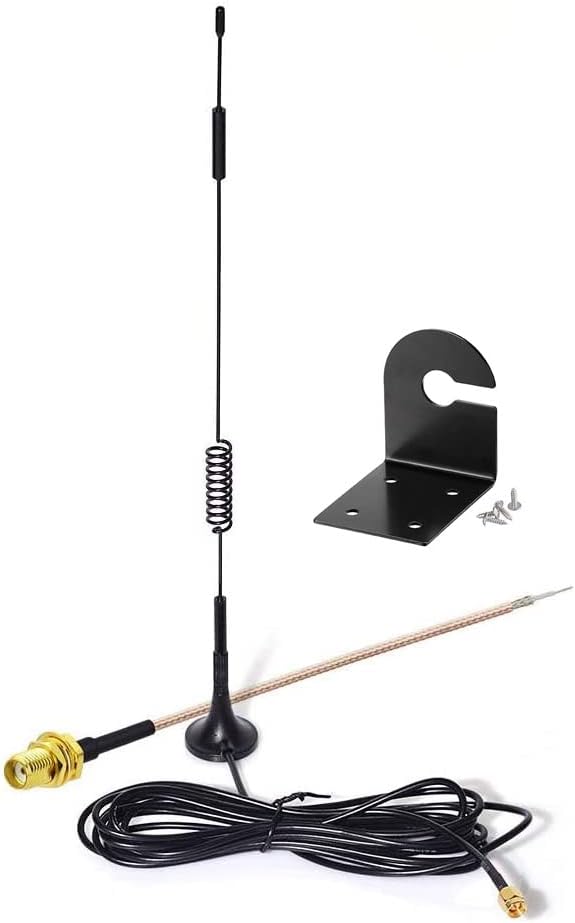

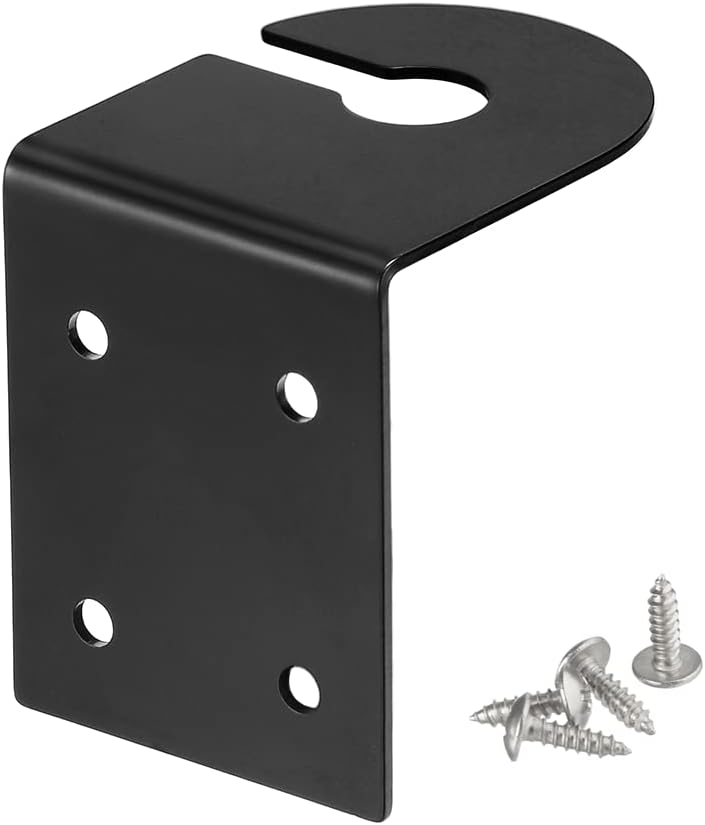

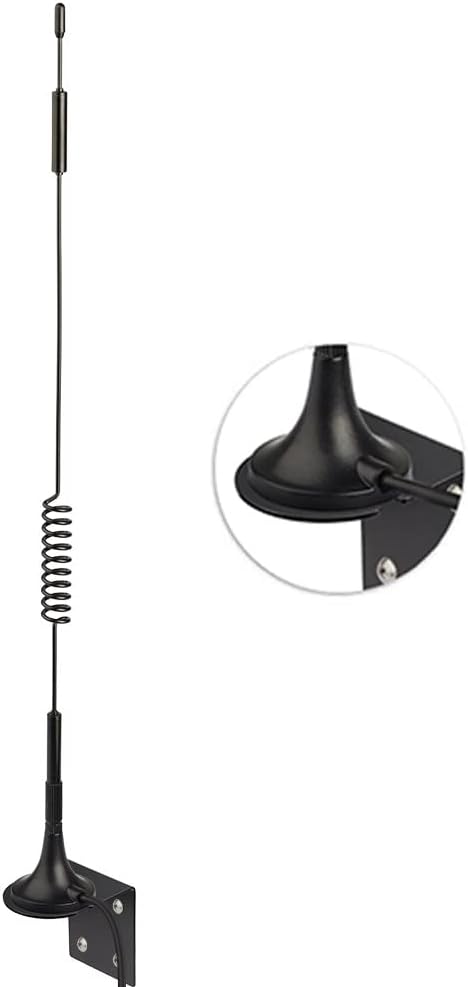

- Package: 1 x 868 MHz SMA antenna + 1 x SMA cable + 1 x portable base (movable fixed metal base for different locations)
Product description
Product Features:
With this antenna the range of the Homematic CCU1, CCU2, CCU3, CHARLY radio module and RaspberryMatic can be increased. For all devices that work with the 868 MHz frequency. The pigtail is already stripped and prepared for soldering.
The antenna is designed for the signal band terminal. After optimising the design and tuning carefully, it has good VSWR. The small dimension and lightweight structure make it easy to install. It also has good shock and anti-ageing performance
SMA male or adjustable plug, suitable for everything the most demanding applications. The antenna is tuned for 868MHz with 7dBi gain. Housed in a robust low profile rubber, the antenna is compact and very durable.

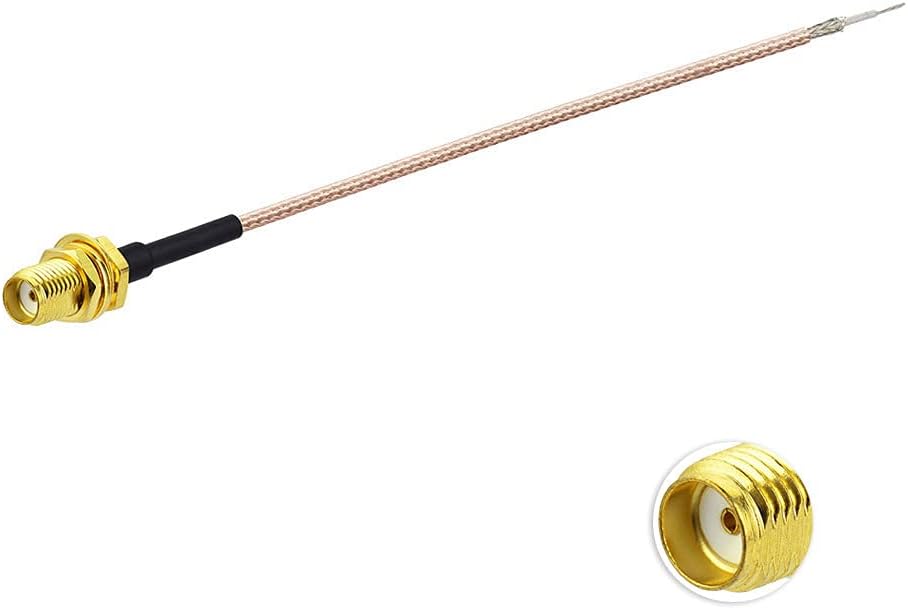

Coaxial cable is professionally adapted to connect the antenna to the device. RG178 cable length 6 inches (15 cm). One end is SMA plug. The other end is not connected, the purpose is to weld the cable more easily to the board.
Product details
- Is Discontinued By Manufacturer : No
- Package Dimensions : 39.5 x 11.1 x 3.2 cm; 120 g
- Date First Available : 5 Dec 2018
- Manufacturer : RFSolution
- ASIN : B07L4KVHW6
- Item model number : EWAN548-1GE
