Description
About this item
- AM/FM frequency: 522-1710 kHz (AM), 87.5-108 MHz (FM) | Gain: 13±3 dB (AM), 16±3 dB (FM) | Connector: Fakra B Adapter | Cable: 5 m RG174
- DAB frequency: 170MHz-240MHz (Band III), 1452MHz~1492MHz (L-Band) | Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) | Connector: Fakra A Adapter | Cable: 5m RG174
- GPS frequency: 1575.42±1.023MHz | Gain: 28dB±3dB | Connector: Fakra C Adapter | Cable: 5m RG174
- Applications: TechniSat Pioneer Panasonic AiliTech Clarion and for Kw Alpine Pure Revo Sony for Jc Blaupunkt PP16DAB PP15DAB RXD10 RXD34 RXD35 RXD50 RXD120 IRD30 BD400 CLRD30

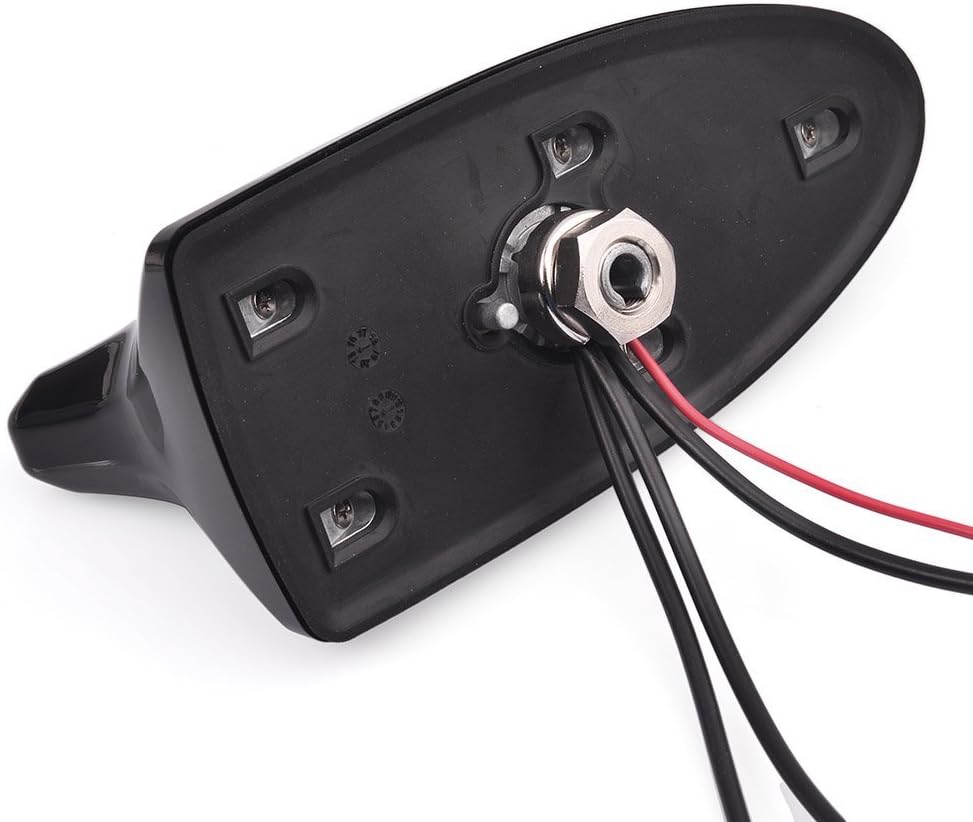

- Package: 1 x antenna (power supply cable 12 V + including mounting nut). Roof mounting: drill hole diameter 10.5 mm. Dimensions (length x width x height): 138 mm x 65 mm x 63 mm
Product description

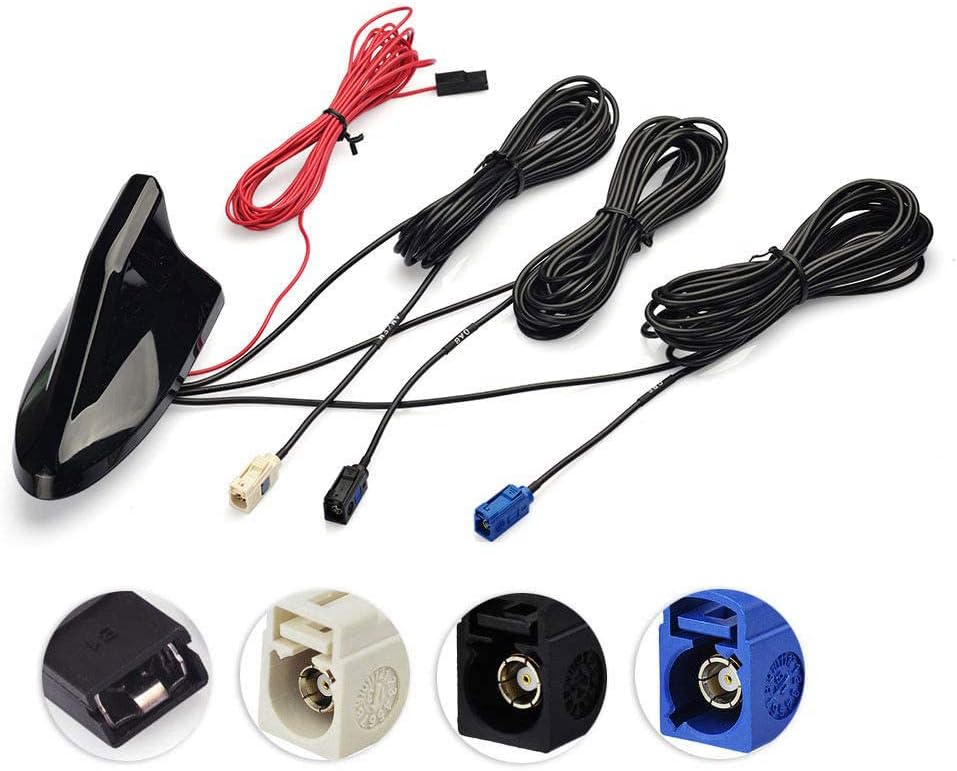

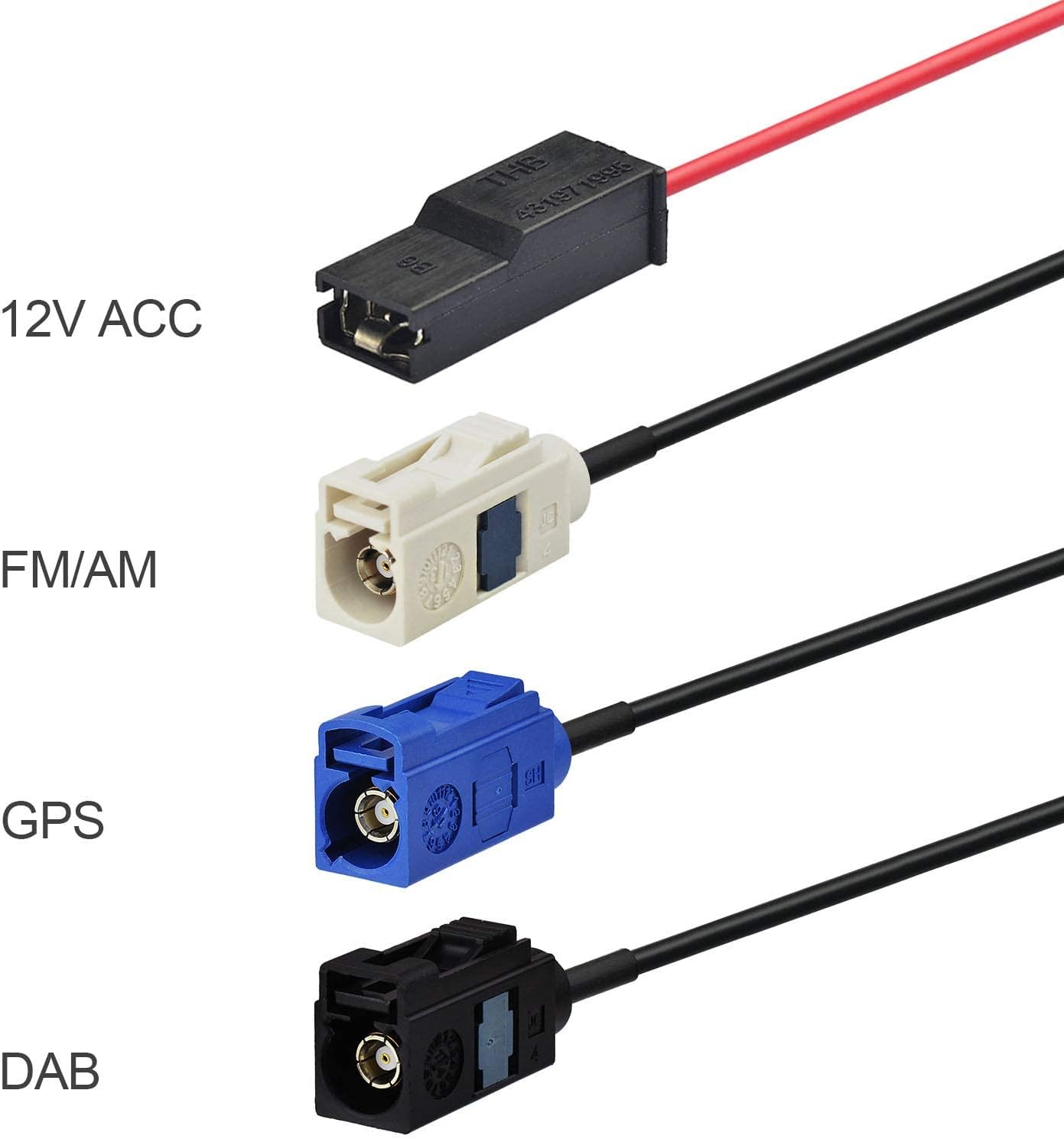

Feature: 1) Combine GPS,DAB and FM/AM antenna application. 2) Car roof roof with hole mounting. 3) 5 metres of antenna adapter cable and signal amplifier power supply cable. 4) Apply to the original navigation system and the In Dash DAB digital radio station. FM/AM/DAB radio antennas specification: Operating voltage: DC 9V-16V DAB frequency: 170 MHz ~ 240 MHz (Band III), 1452 MHz ~ 1492 MHz (L-Band) FM/AM Frequency: 522 ~ 1710 kHz (AM), 87.5 ~ 108 MHz (FM) output amplifier. ::18 dB ± 3 dB (band III), 8 dB ± 3 dB (L-Band), 13 ± 3 dB (AM), 16 ± 3 dB (FM) Output impedance: 50 ohm Cable length: 5 m Cable connector: Fakra B white female (FM/AM radio) Fakra A Black Female (DAB digital radio) GPS navigation antenna specification: Operating voltage: DC 3V-5V frequency frequency : 1575.42 ± 1.023 MHz Output Gain: 28 dB ± 3 dB Output Impedance: 50 ohm Cable Length: 5 m Cable Connector: Fakra C Blue Female (GPS) Package List: 1x Antenna (including mounting nut) Roof Mounting: Hole Diameter 10.5 mm Dimensions (Length x Width x Height): 138.4 mm x 6 cm 5 mm * 6 3 mm. Net weight: 505 g
Product details
- Is Discontinued By Manufacturer : No
- Product Dimensions : 6.5 x 6.3 x 13.84 cm; 500 g
- Date First Available : 30 July 2018
- Manufacturer : RFSolution
- ASIN : B07FZS9DFG
- Item model number : EWAN4609-1GE
- Country of origin : China
- Guaranteed software updates until : unknown
