Description
About this item
- AM/FM frequency: 522-1710 kHz (AM), 87.5-108 MHz (FM), gain: 13±3 dB (AM), 16±3 dB (FM), plug: DIN adapter, cable: 5 m
- GPS frequency: 1575.42±1.023MHz | Gain: 28dB±3dB | Connector: SMA adapter | Cable: 5m
- Eightwood shark fin antenna is equipped with a signal booster that can better receive signals in urban or rural areas. It can effectively reduce air resistance and help cars save energy
- Applications: TechniSat Pioneer Panasonic AiliTech Clarion and for Kw Alpine Pure Revo Sony for Jc BP PP16DAB PP15DAB RXD10 RXD34 RXD35 RXD50 RXD120 IRD30 BD400 CLRD30

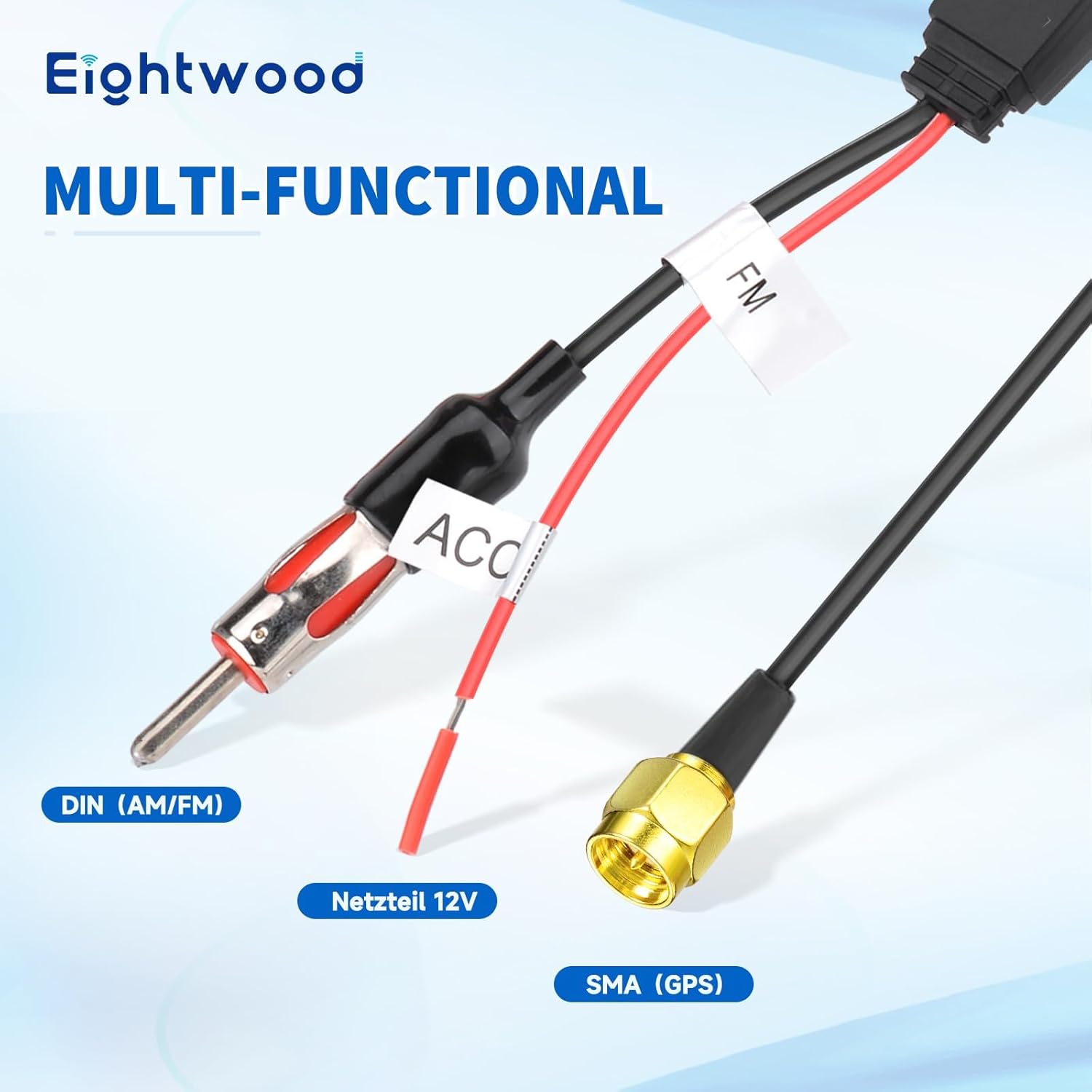

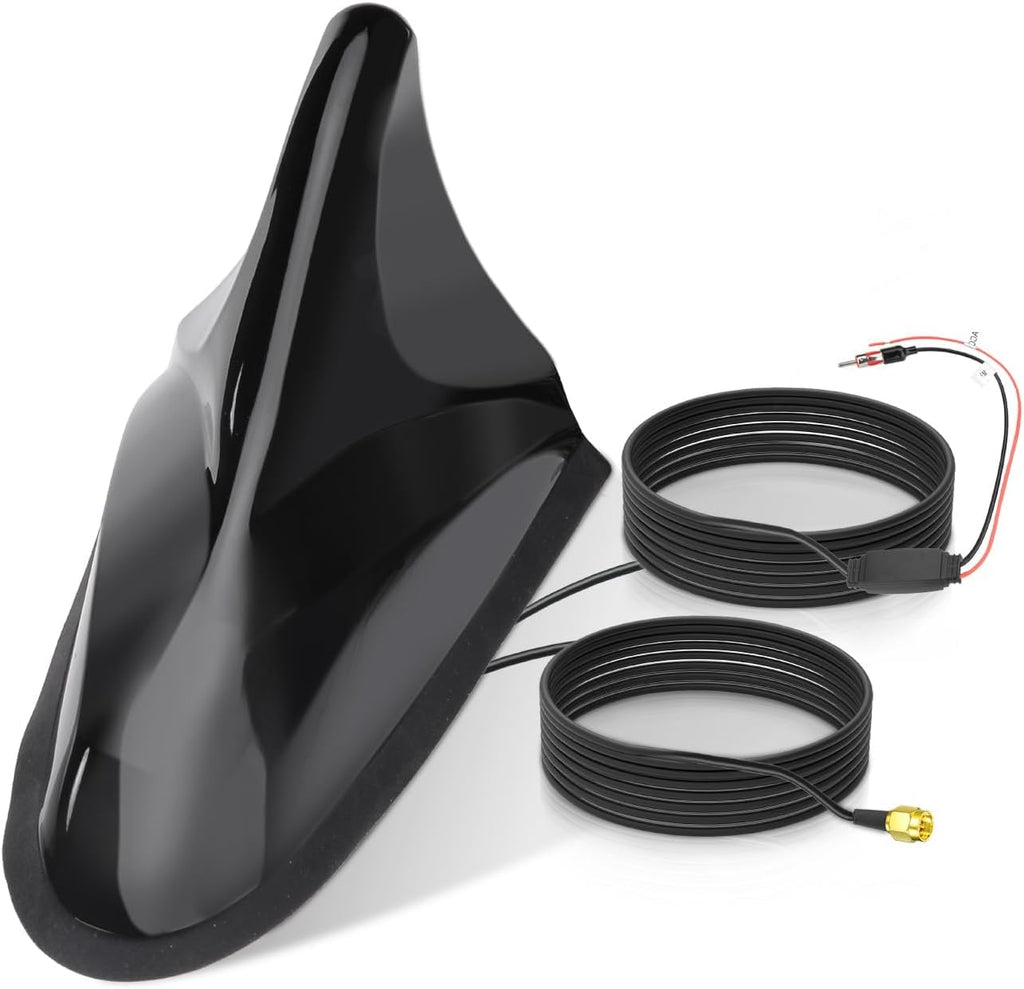

- Package: 1 x FM/AM/GPS antenna car shark car radio antenna (SMA plug + DIN plug + power supply cable for switched 12 V/with cable lug, opening size: 14.6 mm x 17.9 mm)
Spezifikation
| FM/Am Frequenz: | 522-1710 kHz (AM), 87.5-108 MHz (FM) |
| FM/Am Verstärkung: | 13±3 dB (AM), 16±3 dB (FM) |
| Arbeitsstrom: | ≤100mA |
| Betriebsspannung: | DC 9V-16V |
| FM V.S.W.R: | ≤2.5:1 |
| FM Anschluss: | DIN-Stecker, Kabel: RG174, 5m |
| GPS Frequenz: | 1575.42±1.023MHz |
| GPS Verstärkung: | 28dB±3dB |
| Gehäusematerial: | Wetterfestes ABS |

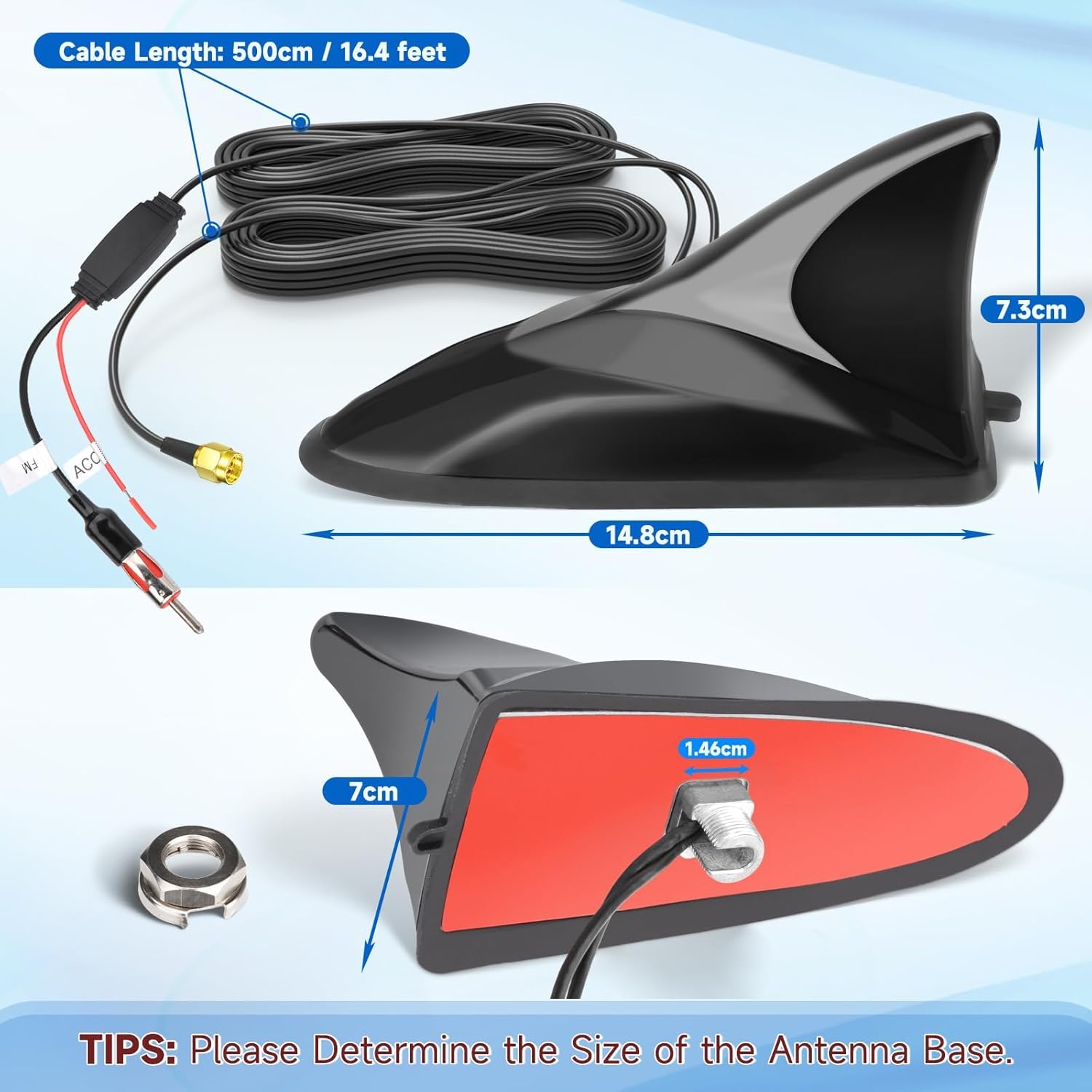

| Abmessungen der Antenne: | 148*73*70mm |

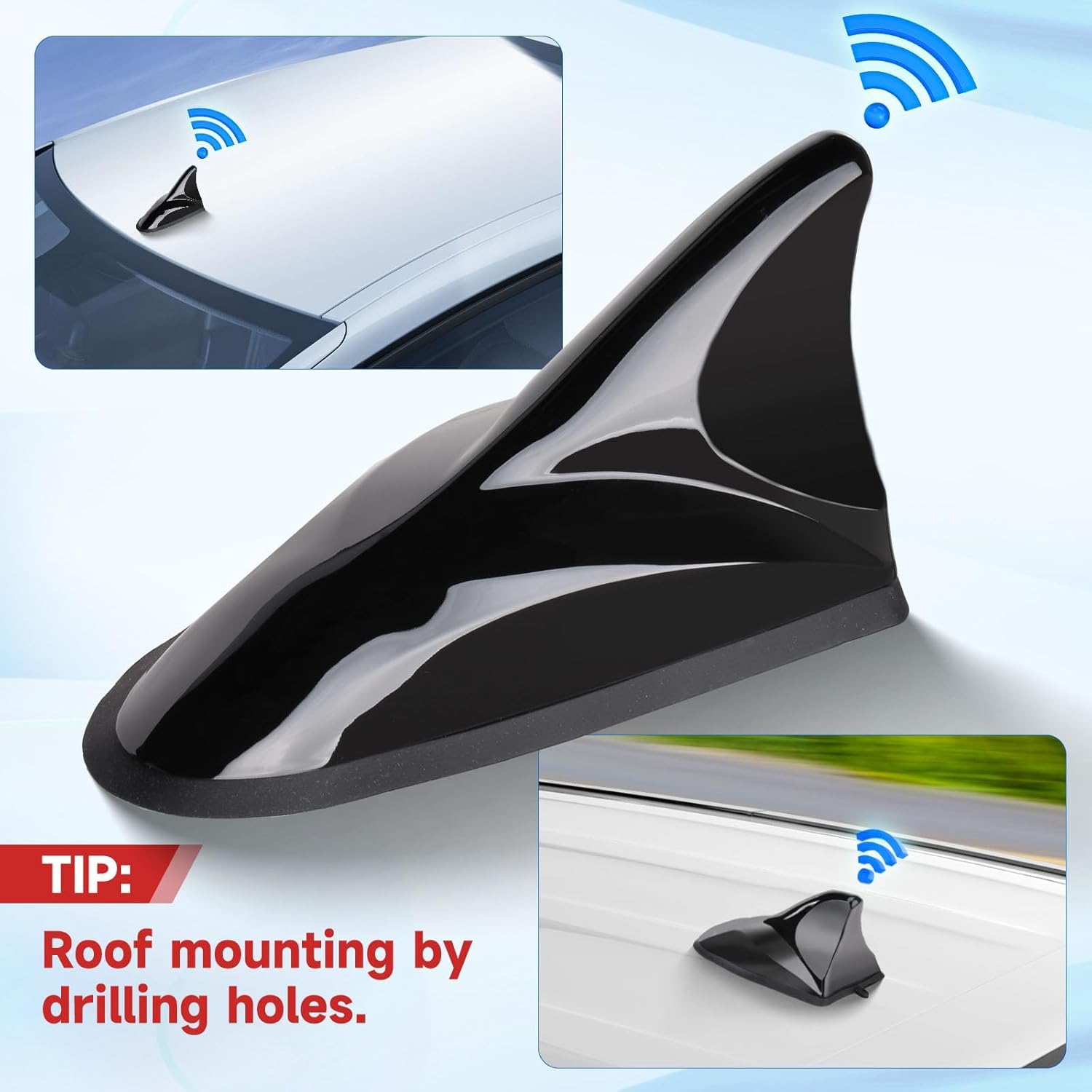

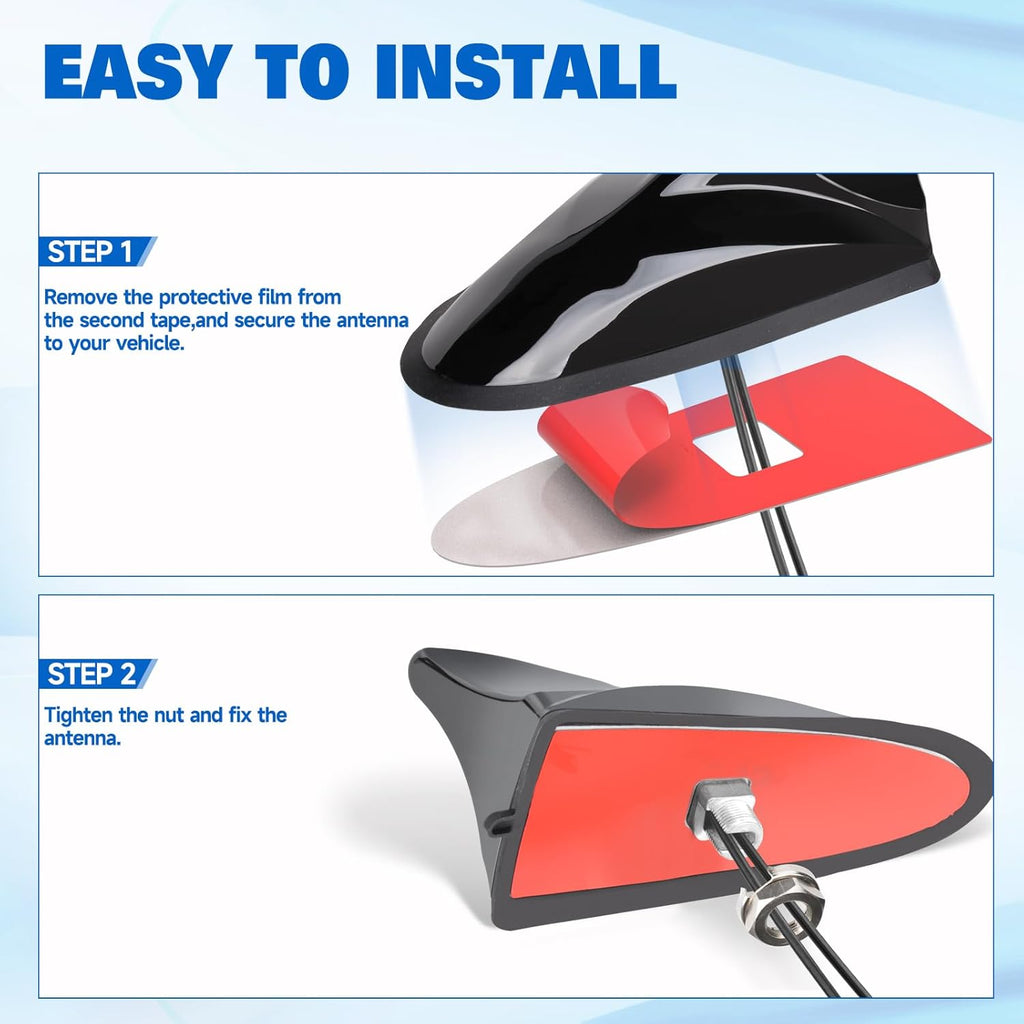

| Installation: | Verschraubung durch Löcher |
| GPS Anschluss: | SMA Stecker, Kabel: RG174, 5m |
Product details
- Product Dimensions : 10 x 4 x 18 cm; 200 g
- Date First Available : 23 Dec 2024
- Manufacturer : Eightwood
- ASIN : B0DR8BLWFG
- Item model number : 2224
- Guaranteed software updates until : unknown
