Description
Specification
Impedance:50 Ohm
Connector1:SMA male-brass material, gold plated
Connector2:SMA male-brass material, gold plated
Cable type:RG-400
Cable length:50cm/1.6 feet
Features:
-Made from gold-plated brass, the SMA connector features durability, allows repeated connects and disconnects.
It is easy to install, the SMA connector is threaded type, just screw on or screw off from the SMA-female port of the network device.
-RG400 coaxial cable: MIL-C-17 compliant, low loss, low VSWR, good shielding performance
-The SMA male jumper cable can be widely used in 50 Ohm RF system, including SMA-female antennas/WiFi routers/ radios/ backup cameras, etc.
Product Overview
- Brand: Eightwood
- Connector Type: RF Connector
- Cable Type: Coaxial
- Compatible Devices: Router, Modem
- Special Feature: Braided, Low Loss
Product Features

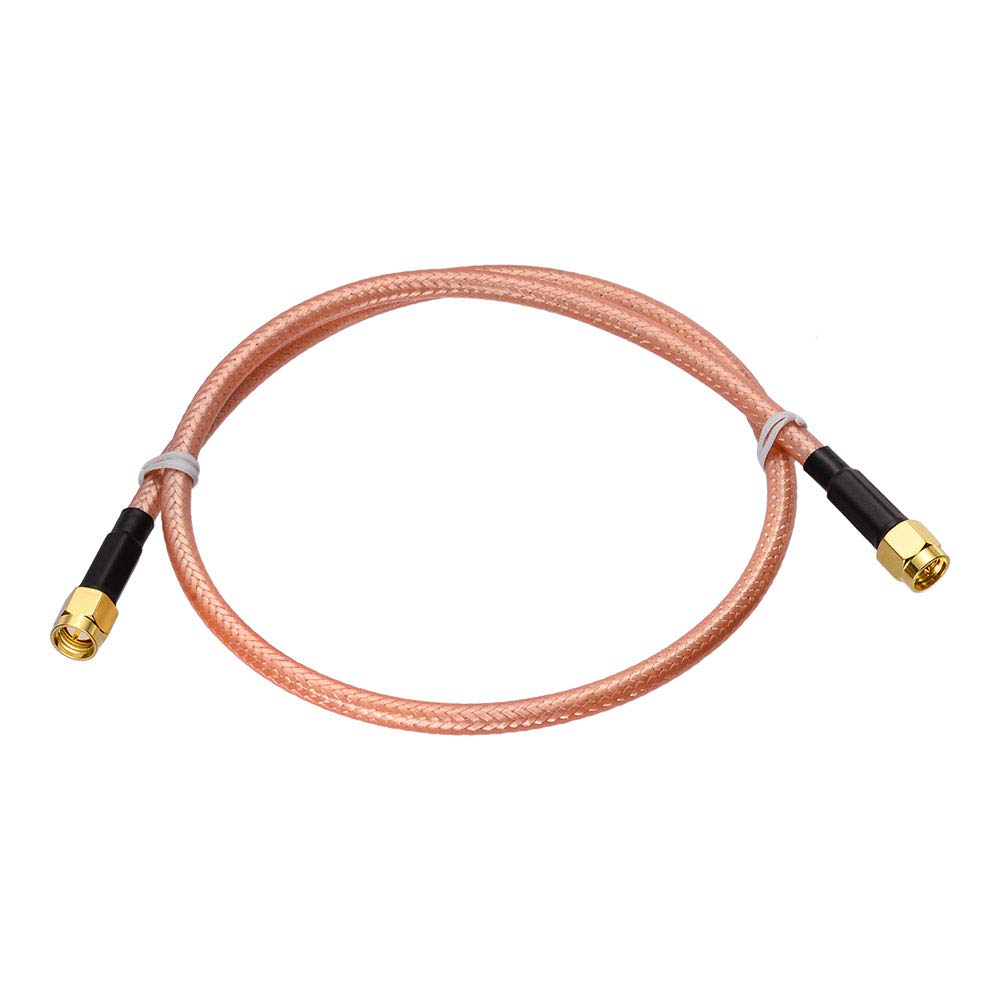

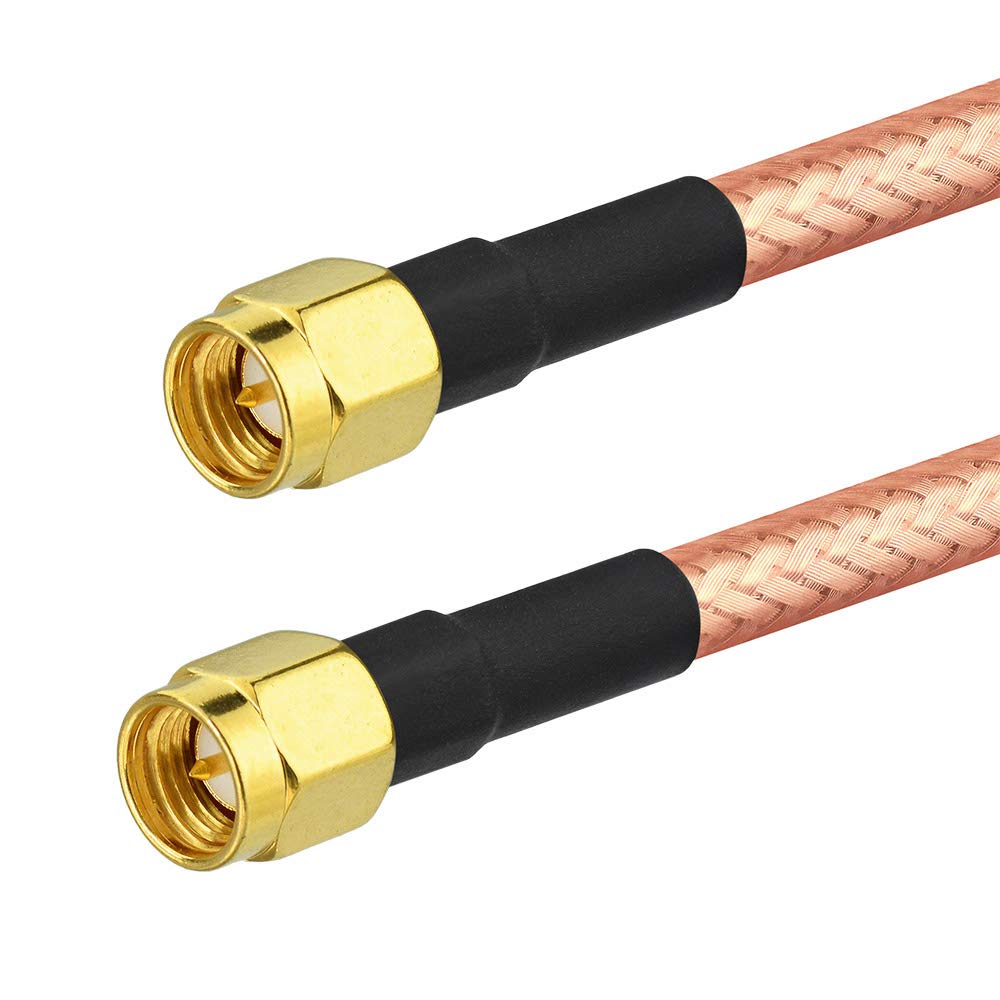

- SMA to SMA jumper cable; Connector 1: SMA male plug straight; Connector 2: SMA male plug straight; Impedance:50 Ohm

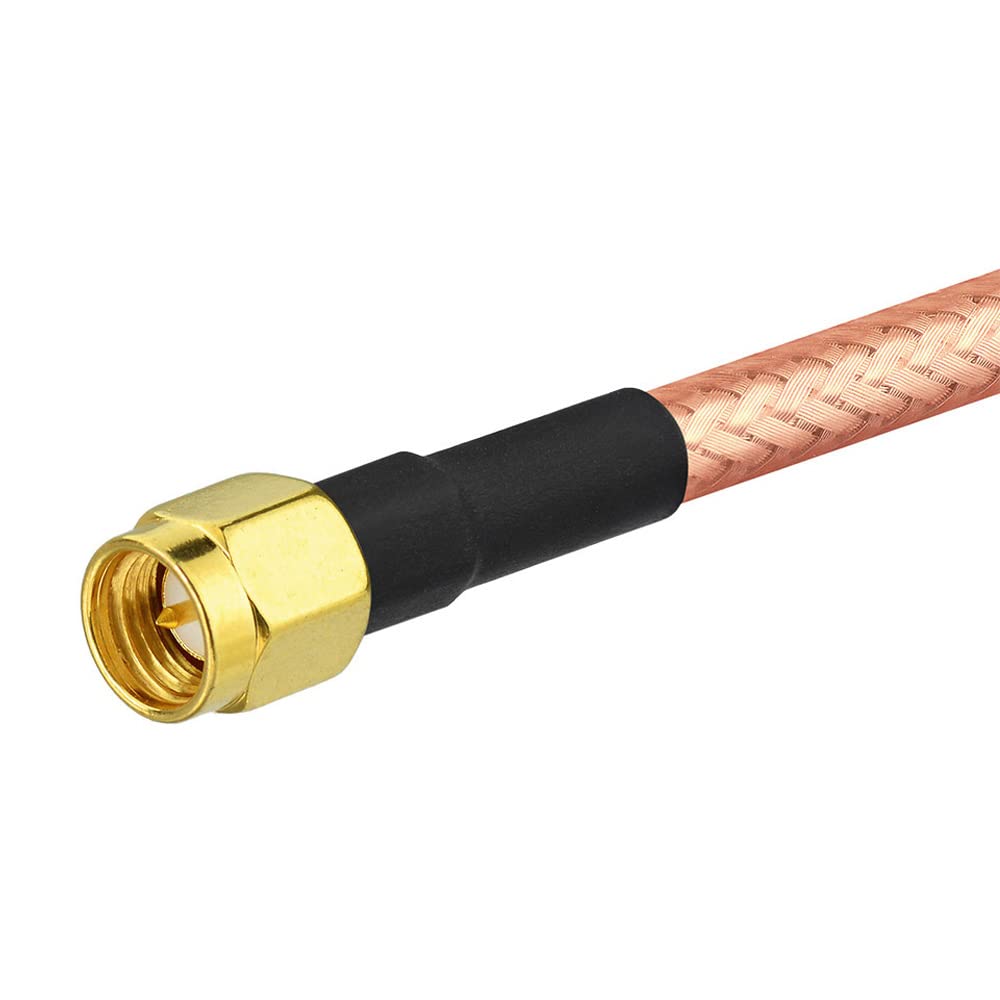

- Well built connectors: Connectors made from brass and plated with gold for mechanical durability and reliable signal transmission

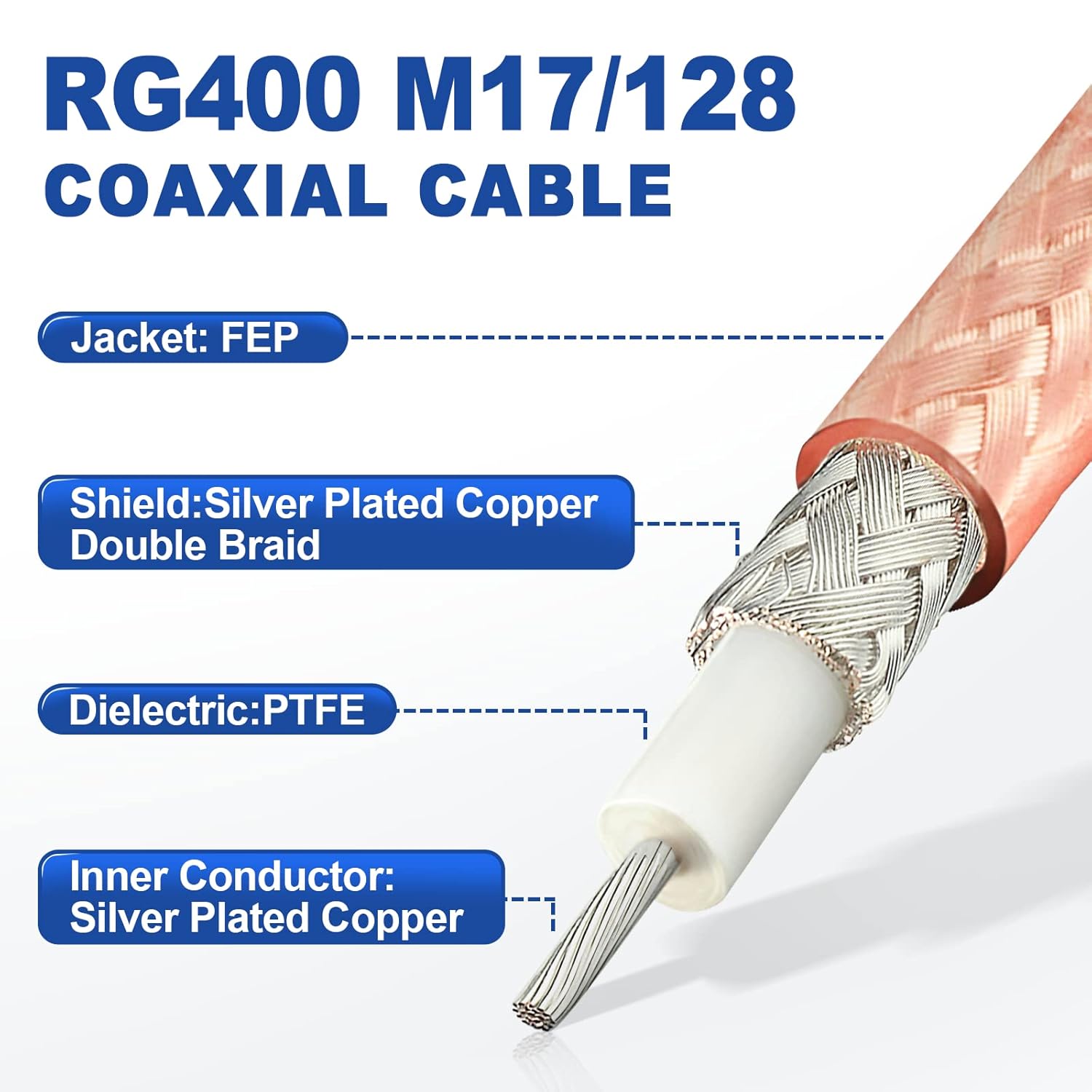

- Low loss coax RG400: in compliance with MIL-C-17, the RG400 is double shielded, supports interrupted transfer of signals from devices with minimum loss
- Application: 3G 4G LTE WiFi antennas, wireless router, ham radio, handheld radio,VSWR meter, SDR devices, LMR, wireless LAN devices, microwave applications and digital communication system, etc
- Package includes: 1pc SMA male to male RG400 cable 1.6 feet, heat shrink on both ends
