- Antenna Frequency: 1575.42MHz + -3 MHz; V.S.W.R < 2.0; LNA Gain:28 + -3dB

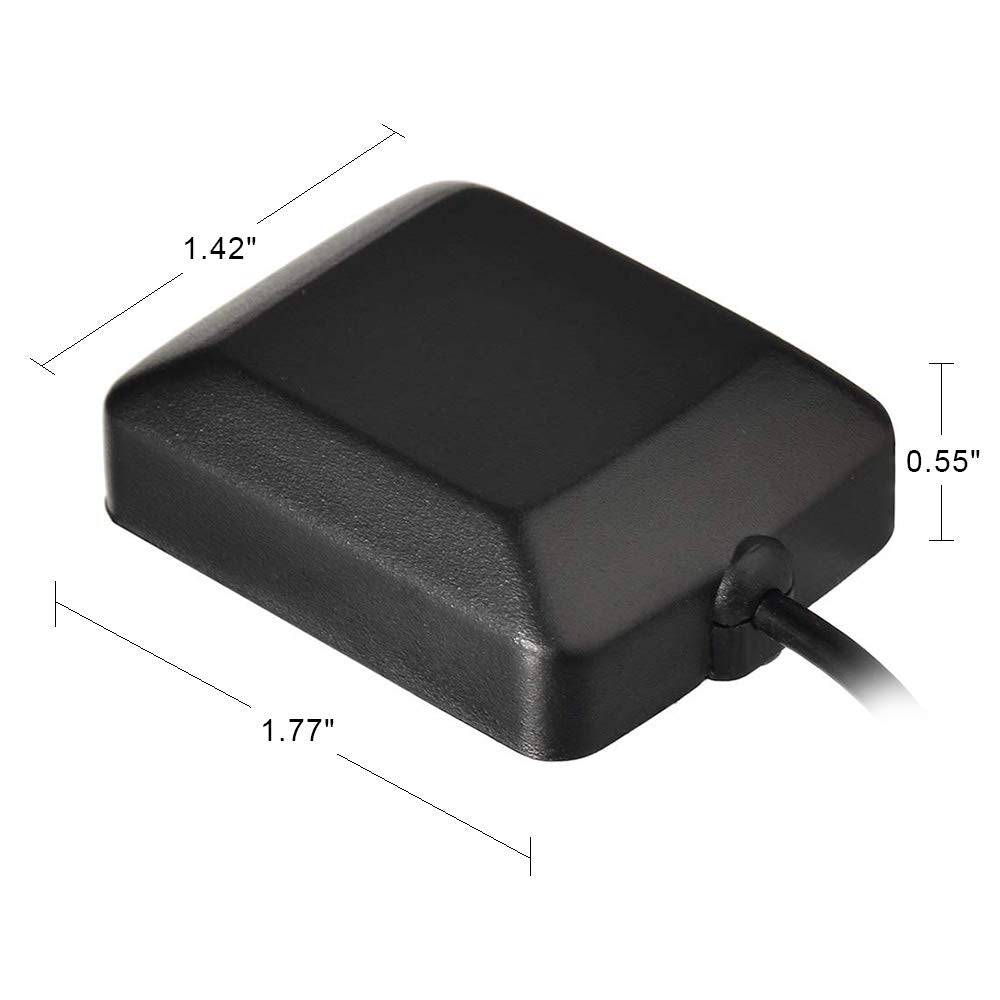

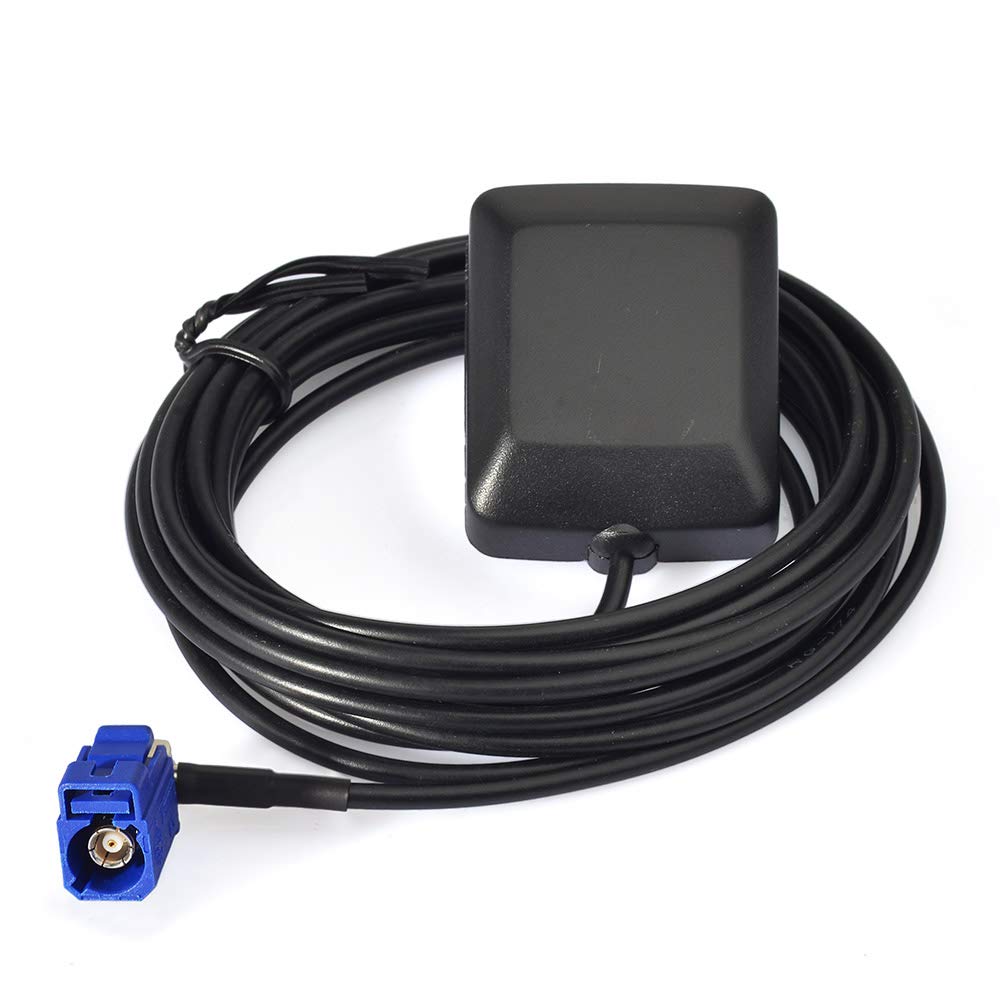

- Antenna Connector: Fakra c blue female right angle; Antenna Extension Cable: 9.8 feet,RG174 ; Magnetic Base Size: 1.77"x1.42"x0.55"
- Compatible with navigation unit that has a fakra blue female connector
- Features: Strong magnetic base mounting; Compact construction/ Low profile; Fully waterproof; Excellent temperature stability; Low noise figure
- Package Includes: 1pc Fakra gps antenna
--------------------------------------------------
Product description
Specification
Center Frequency: 1575.42MHz±3 MHz
V.S.W.R<2.0
Band Width:±5 MHz
LNA Gain(Without cable): 28+/-3dB
Noise Figure :1.5dB Typ.
Impendence:50 ohm
Polarization RHCP
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
Cable:RG174 3 meter/9.8 feet
Connector:Fakra C female right angle
Application
Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
