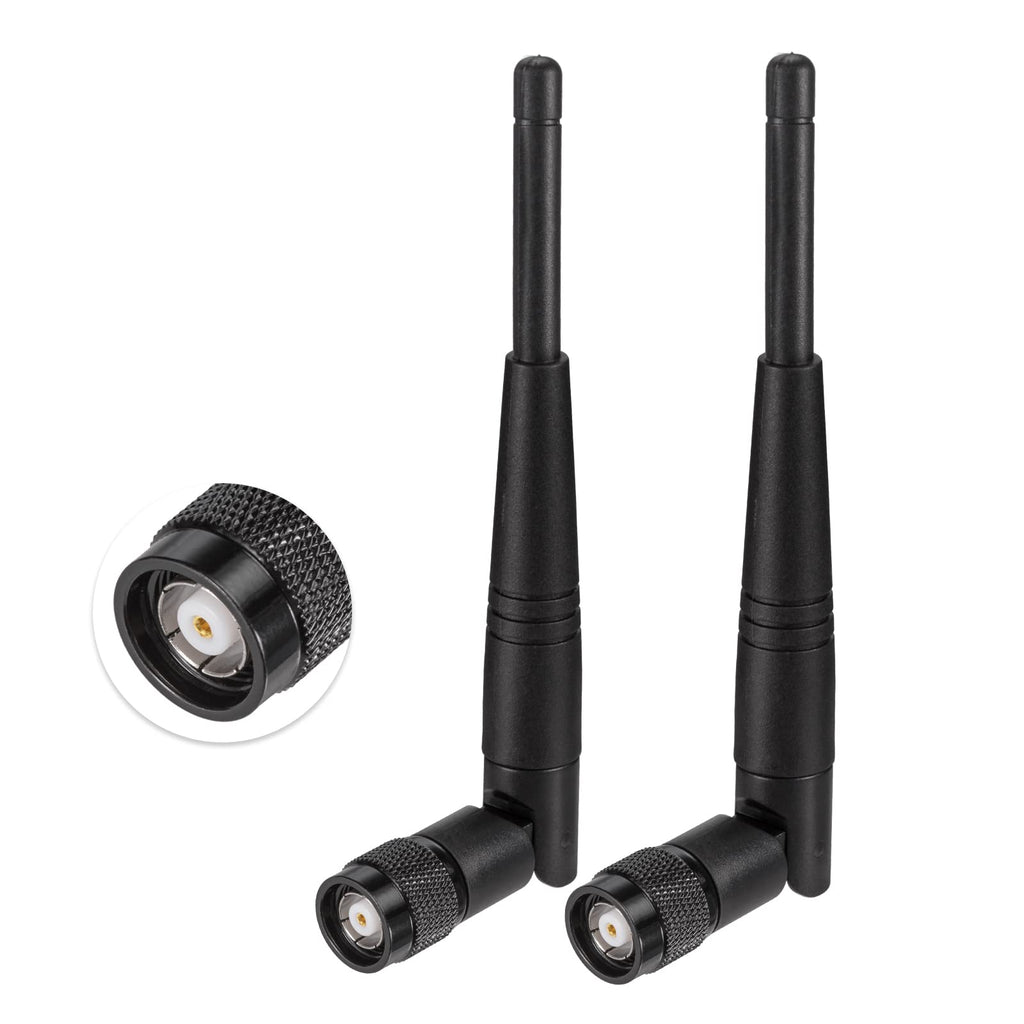

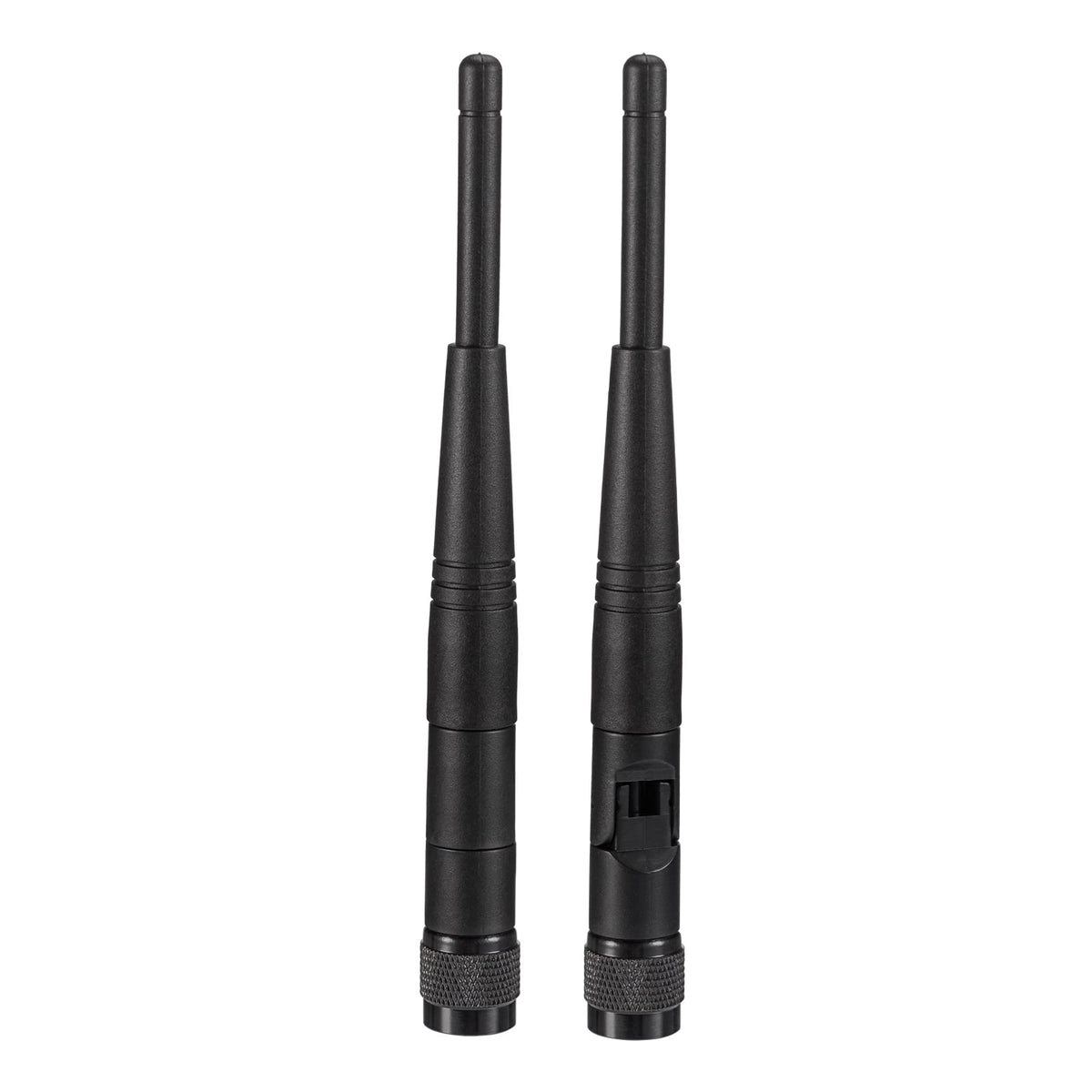

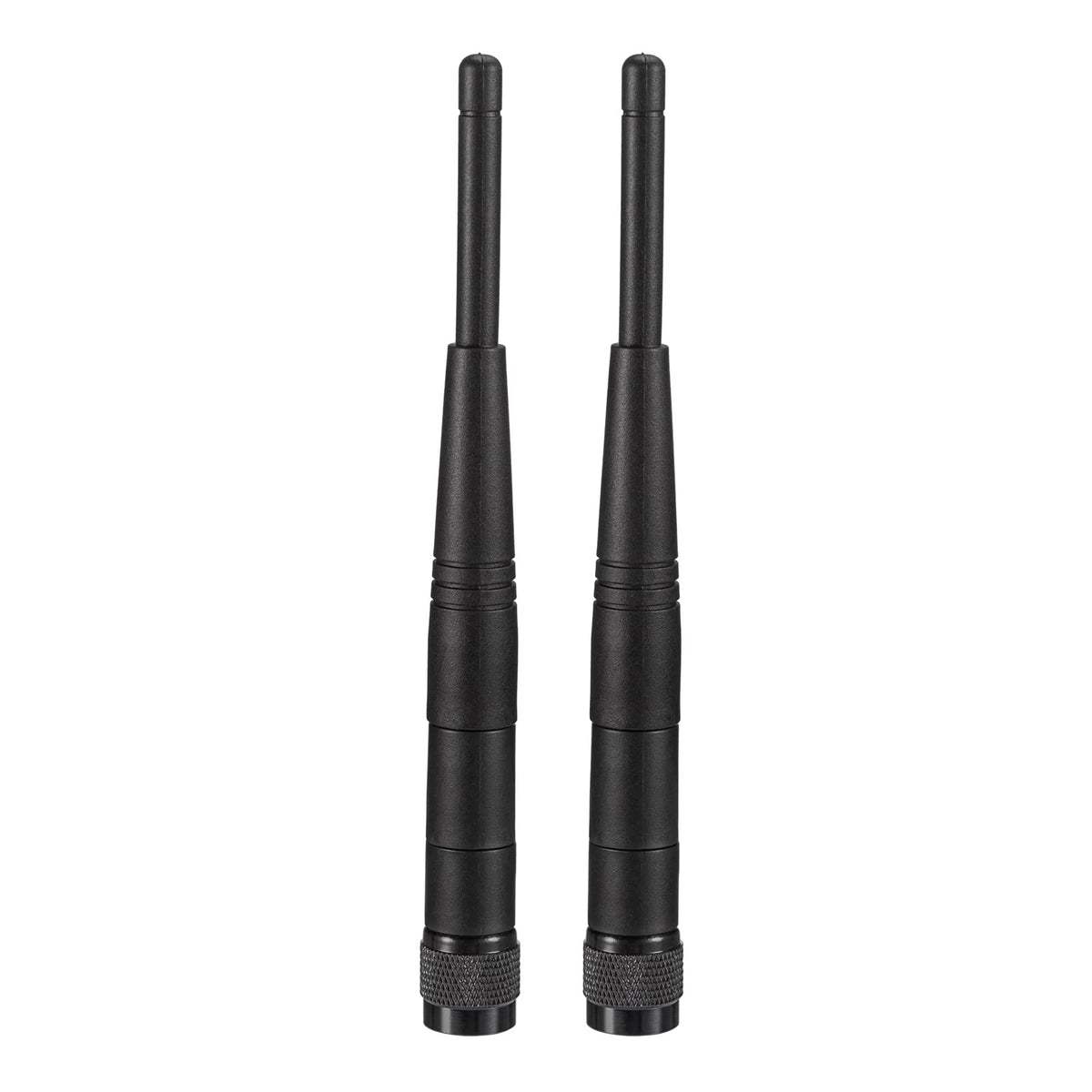

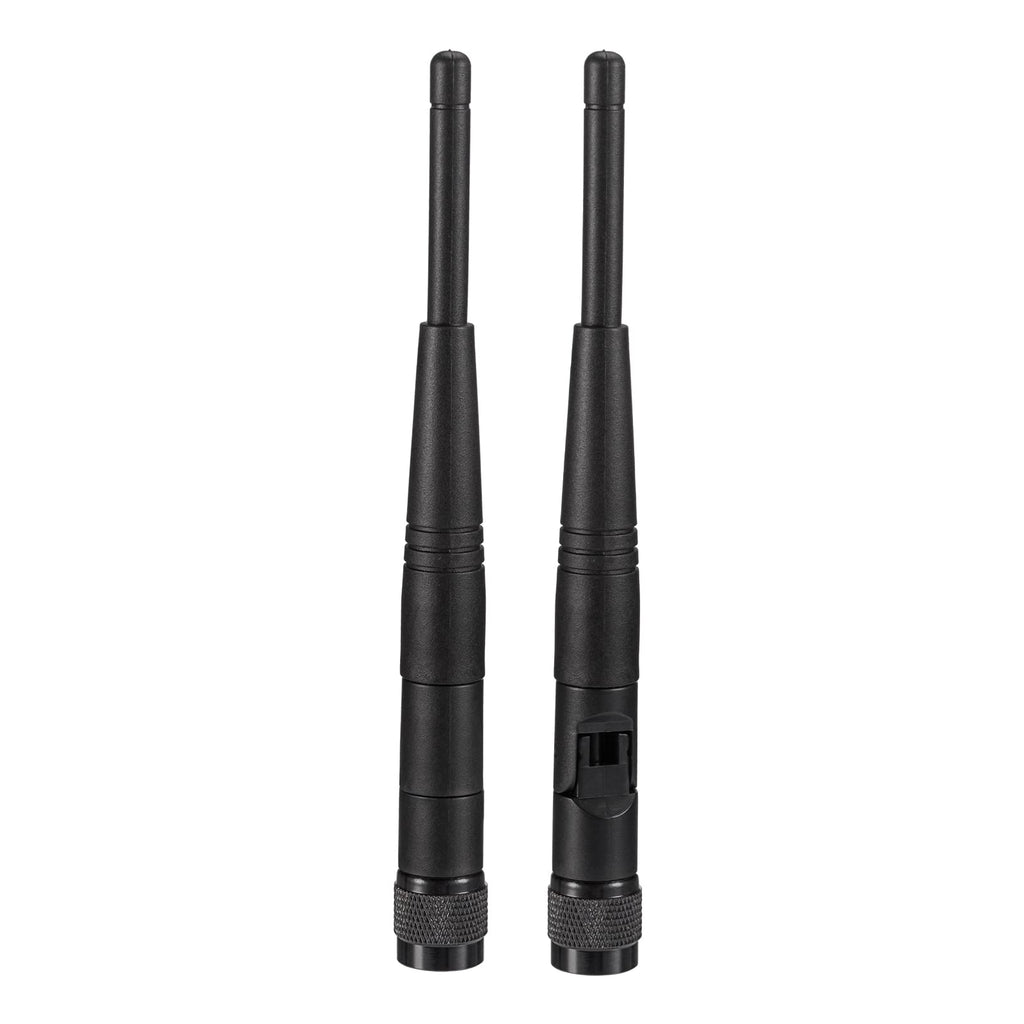

- Antenna Frequency:2.4GHz radio; Gain: 5dbi; VSWR< 1.5; Polarization:Vertical; Directionality: omni-directional

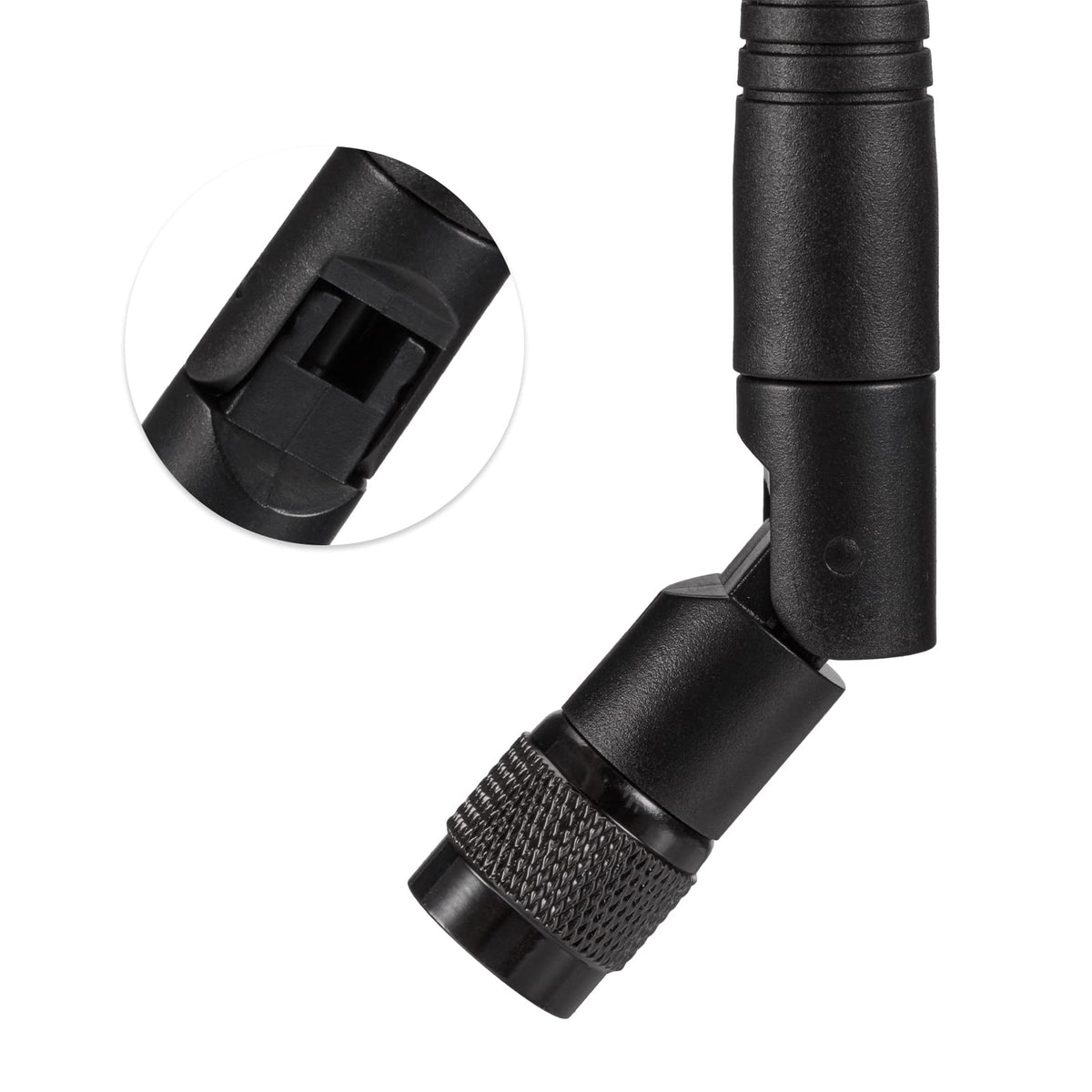

- Connector Type: tilt-and-swivel RP-TNC male ( reversed polarity, inside threads with female pin); In compliance with IEEE 802.11b and 802.11g Wireless LANS
- Compatible with Trimble S3 Total Station, S5 Total Station,S6 Total Station, S7 Total Station, S8 Total Station,VX Total Station, SPS610 Total Station,SPS620 Total Station,SPS700 Total Station,SPS710 Total Station,SPS720 Total Station,SPS730 Total Station,SPS930 Total Station,RTS633 Total Station,RTS655 Total Station, RTS773 Total Station,RTS873 Total Station,RTS573 Total Station,TSC2 Data Collector, TSC3 Data Collector,Spectra Precision Ranger 3
- Compatible with Linksys Wireless Router: BEFW1124, WAP11, WRT54G, WRT54GL, WRT54GS, WAP54G| Cisco:340, 350, 1200 AP, 1310, AIR ANT3338 ; Proxim:Stratum MP, Harmony AP
- Antenna Diameter:13.2mm/0.52"; Antenna height(straight):145mm/5.7 inches; Package includes: 2pcs RP-TNC WiFi antennas
--------------------------------------------------
Product description
Specification
Frequency: 2.4GHz; VSWR<1.5; Gain: 5dBi
Polarization:Vertical; Orientation: omni-directional

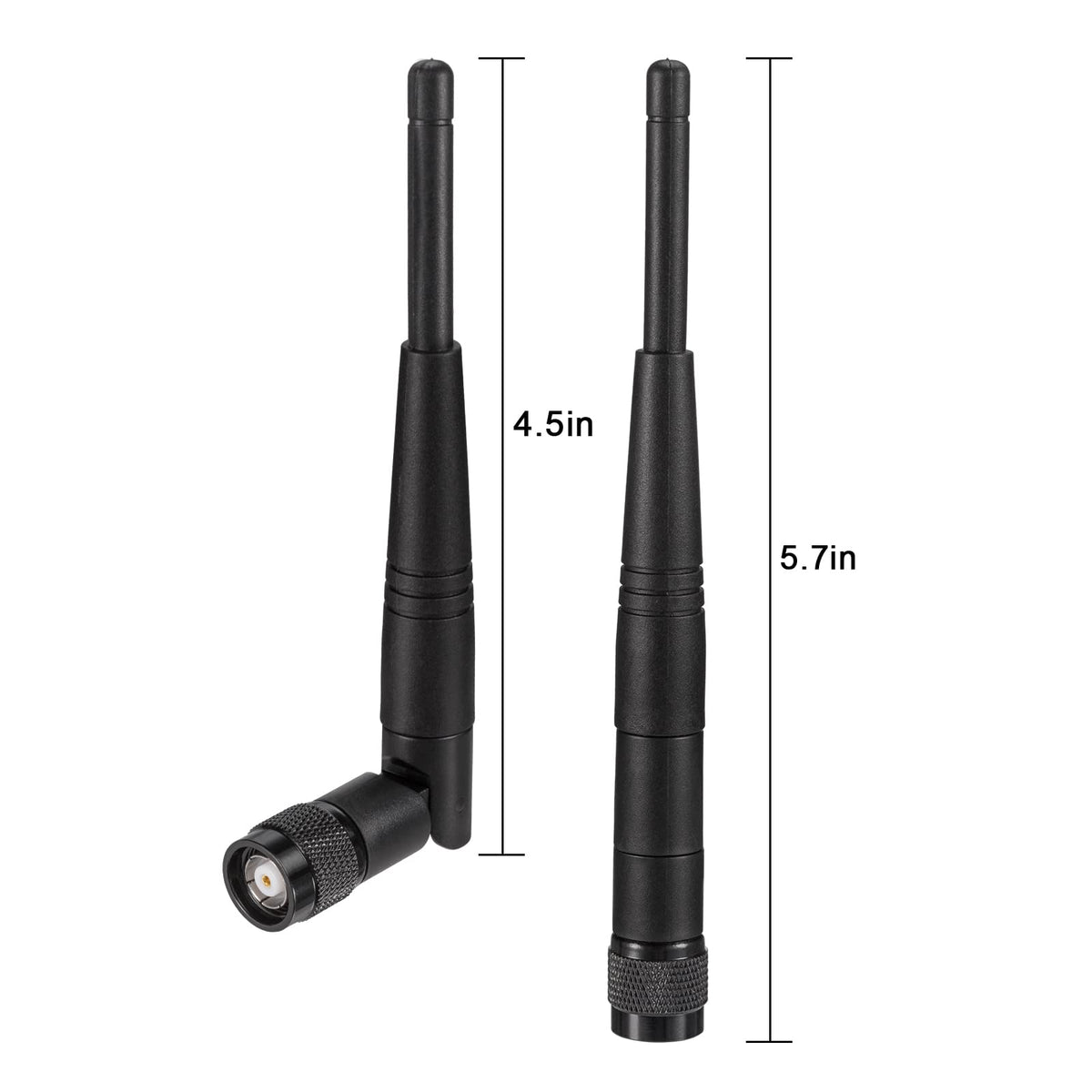

Antenna Height: 14.5cm/5.7 inches (straight); 11.5cm/4.5 inches (connector rotated by 90°)

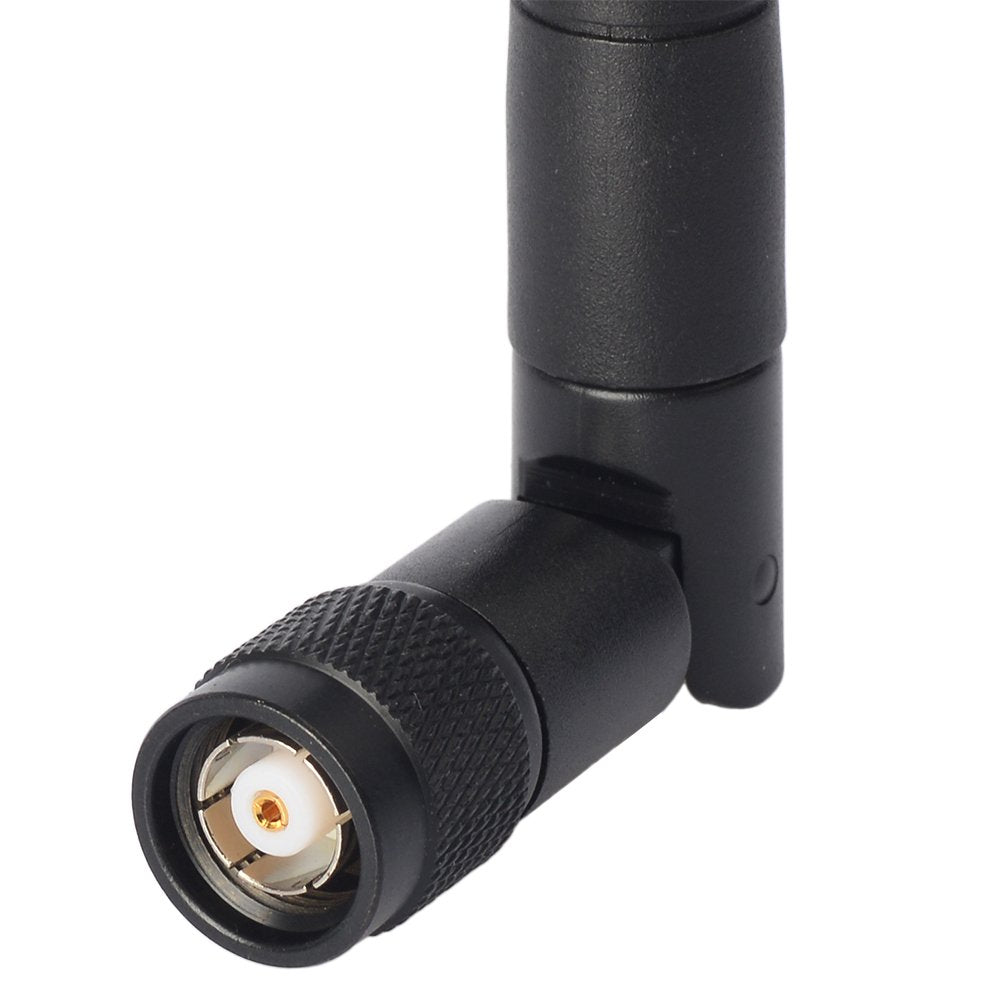

Connector Type:RP-TNC male Connector (inside threads with female pin )

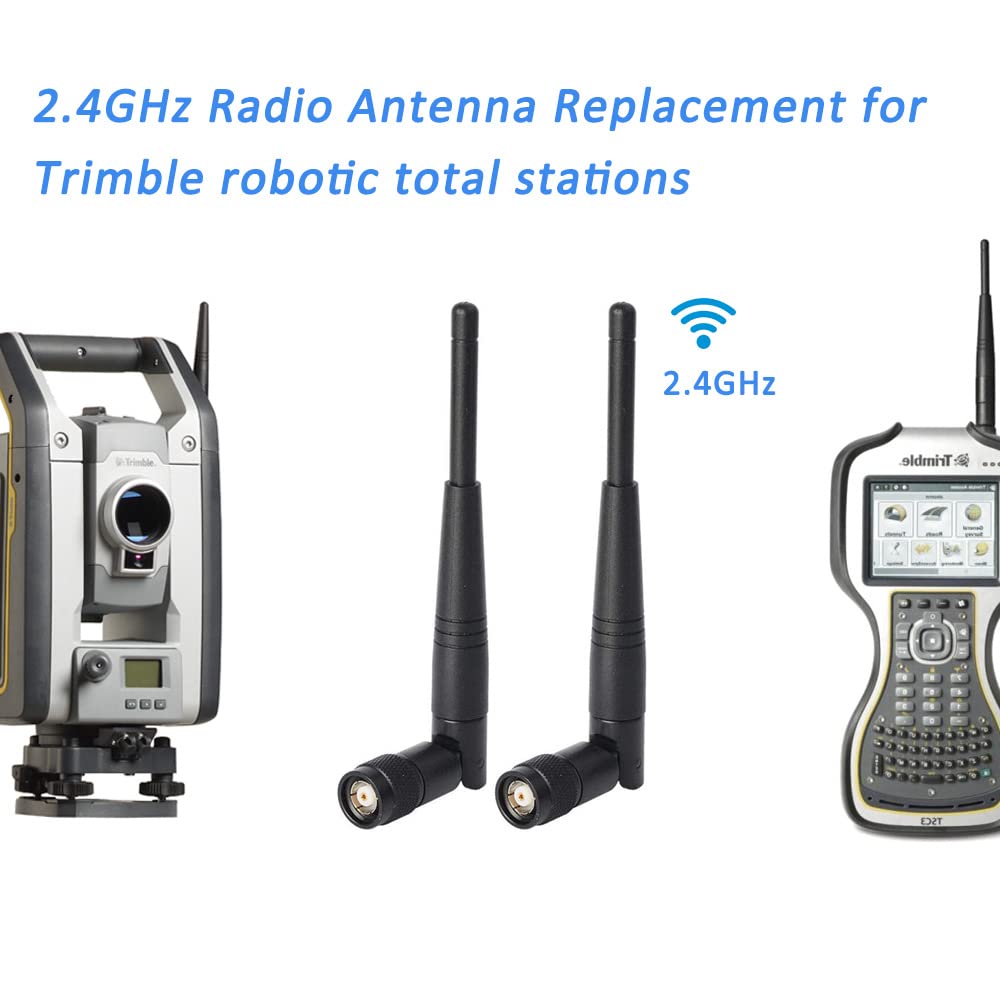

Replacement Radio Rubber Duck Antenna for Trimble Robotic Total Stations
