Description
Specification
Frequency:2.4Ghz 5.8GHz
VSWR<1.8
Gain:2.15 dBi
Polarization:Vertical
Impedance:50 Ohm
Direction: Omnidirectional
Antenna Connector: RP-SMA Male ( NO Male Pin)

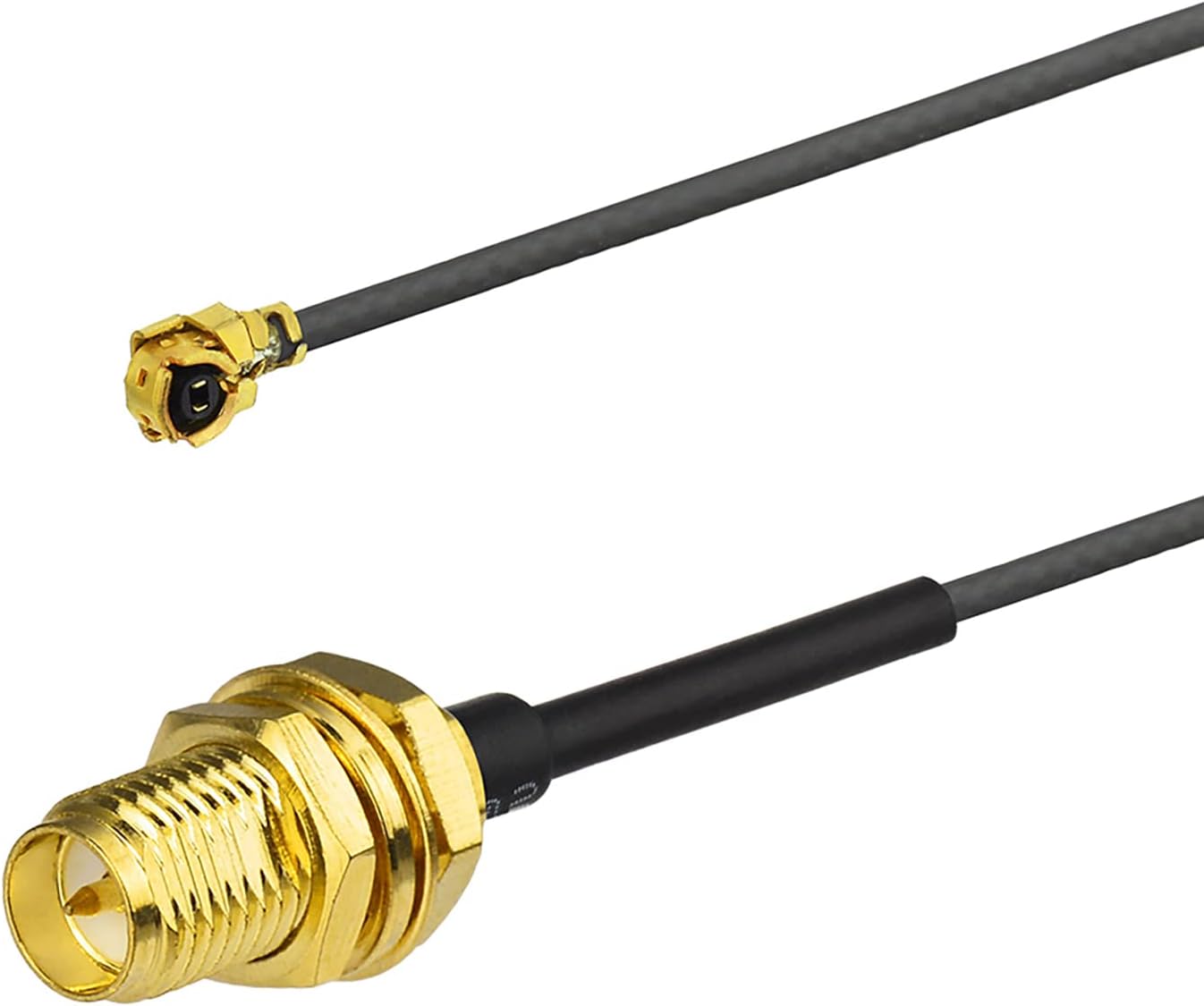

Pigtail Cable Connector: U.FL IPX to RP-SMA female (for Mini PCIe Card)
Antenna height: 47mm / 1.85 inch ( rotated by 90 degree); 67mm /2.6 inch (straight)
Maximum input Power:50W
Feature
-Perform well with both 2.4Ghz and 5Ghz.
-Suited for 802.11a/b/g/n, 802.11ac, 802.11ax, wireless LANs, Bluetooth.
-Assist to get reliable Wi-Fi& Bluetooth connection.
-Short WiFi antenna,only 1.9 inch in length, clean and save space compared with wired antenna.
Product Overview
- Antenna: Wi-Fi Antenna
- Brand: Eightwood
- Color: 2-pack antenna+mini pcie card cable
- Number of Channels: 8
- Impedance: 50 Ohm
- Maximum Range: 150 Feet
- Manufacturer: Eightwood
- Number of Items: 4
Product Features
- The 2.4GHz 5GHz short WiFi antennas will assist network device get a stronger reception and a stable connection, no dropouts when use them
- Application: PCI PCIe network card, PC desktop computer gaming motherboard, external WiFi USB adapter,wireless network router, WLAN AP & Hotspot wireless range extender

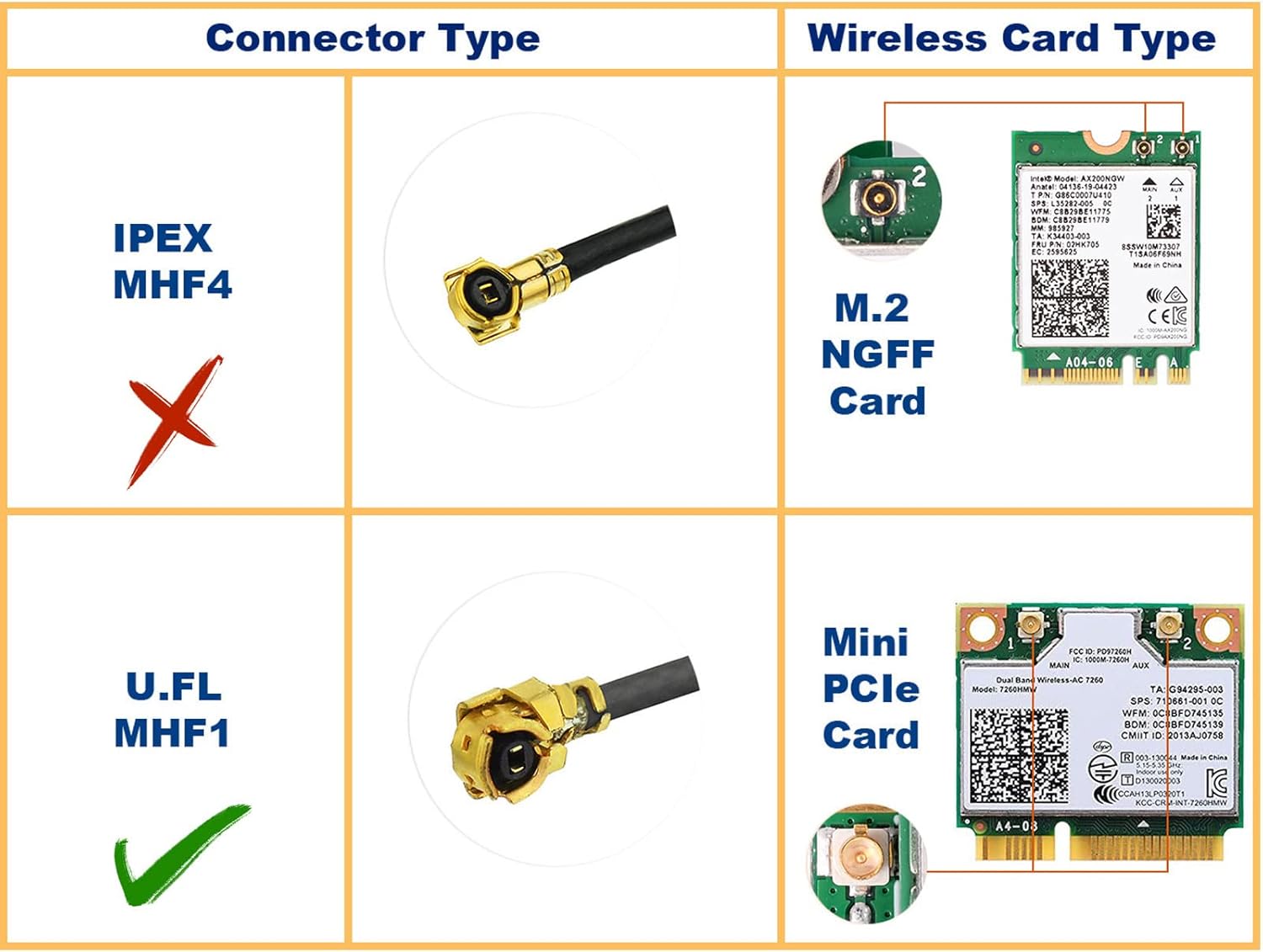

- With the pigtails, the kit is compatible with Mini PCIe network devices like wireless- AC 7260 card, and do NOT use for M.2 NGFF card
- Save Space: the antenna is short, 1.9 inch when rotated by 90 degrees. With no base, just screw them into the port of device, don't need space on the floor or on top of the PC

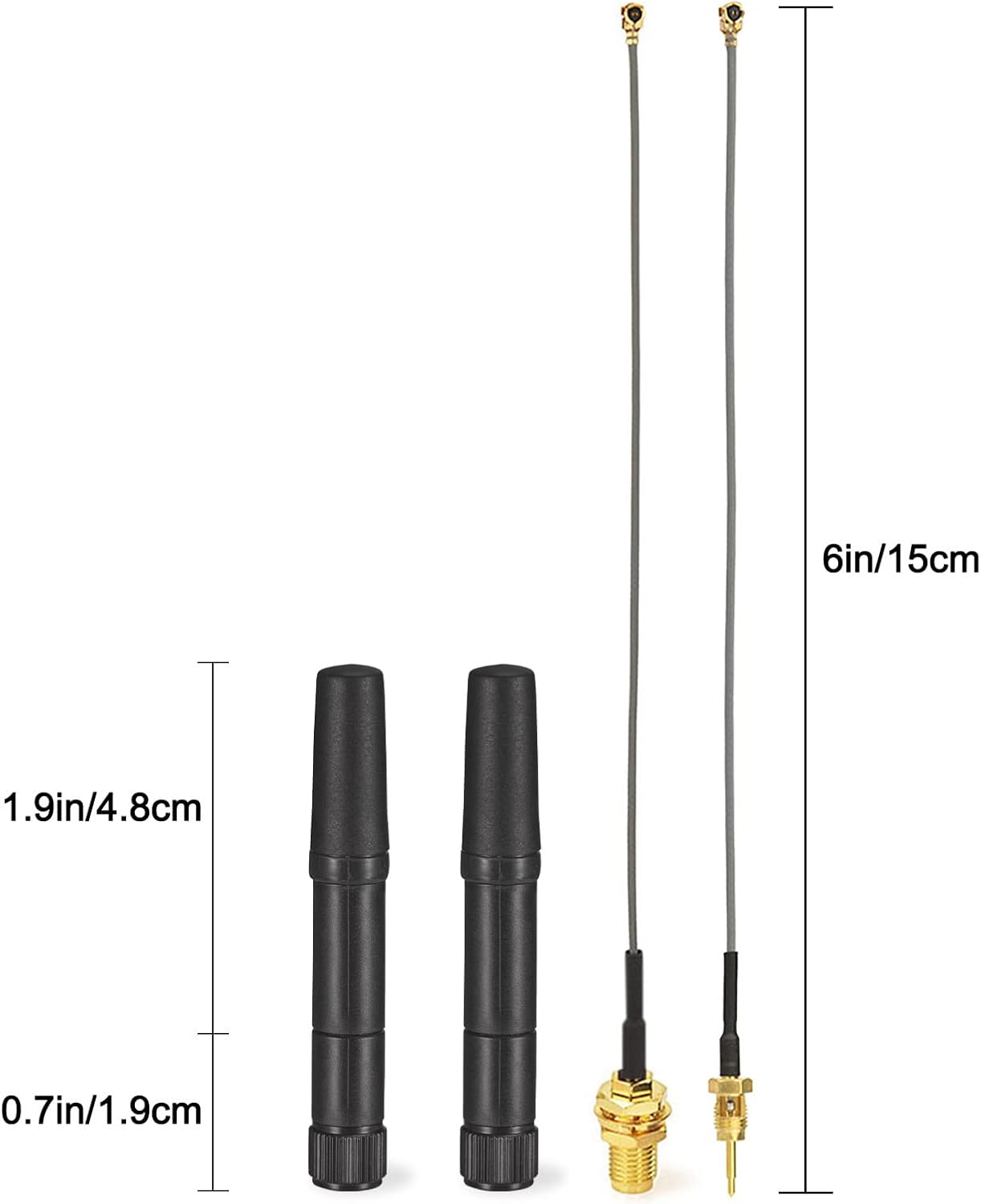

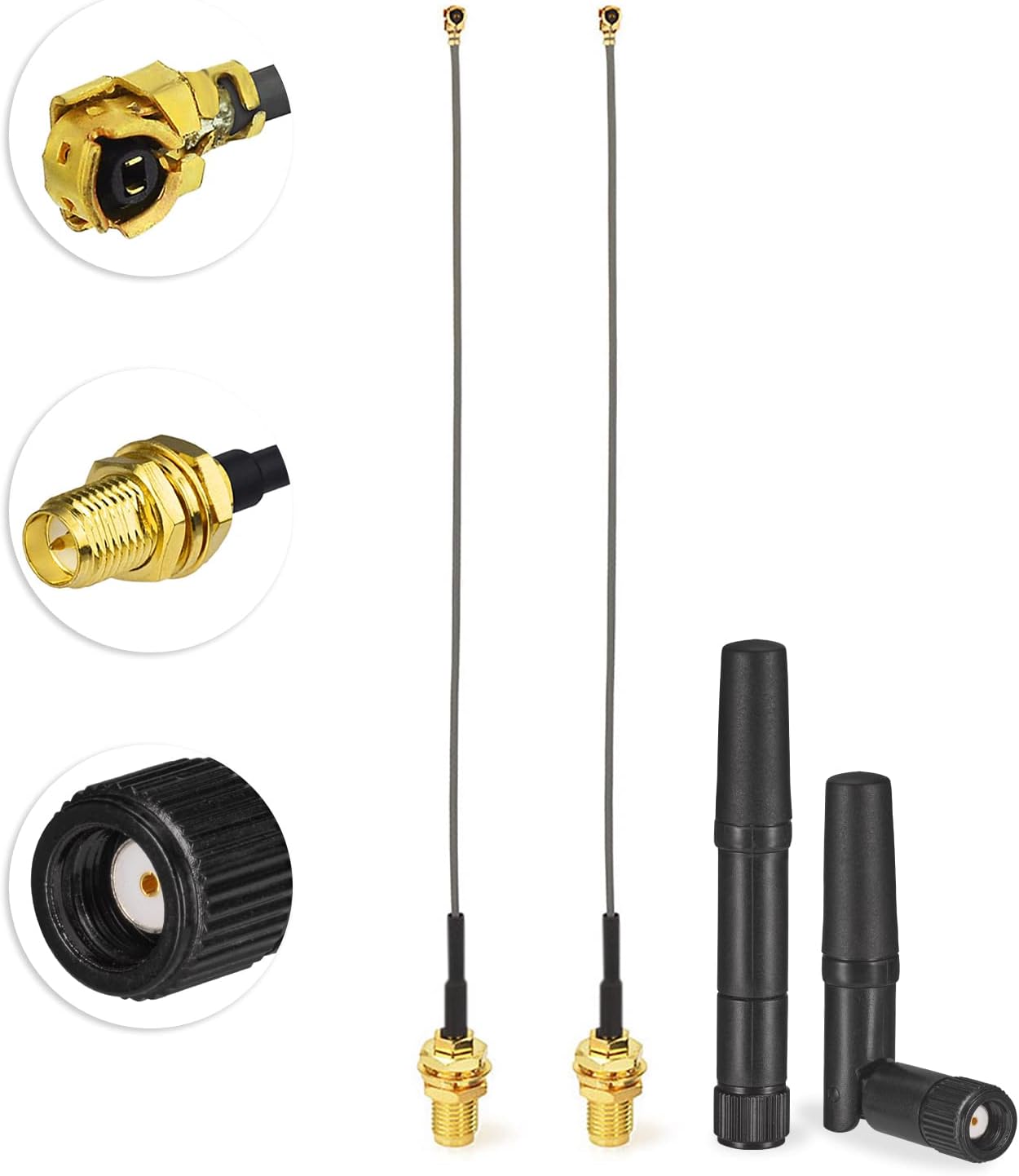

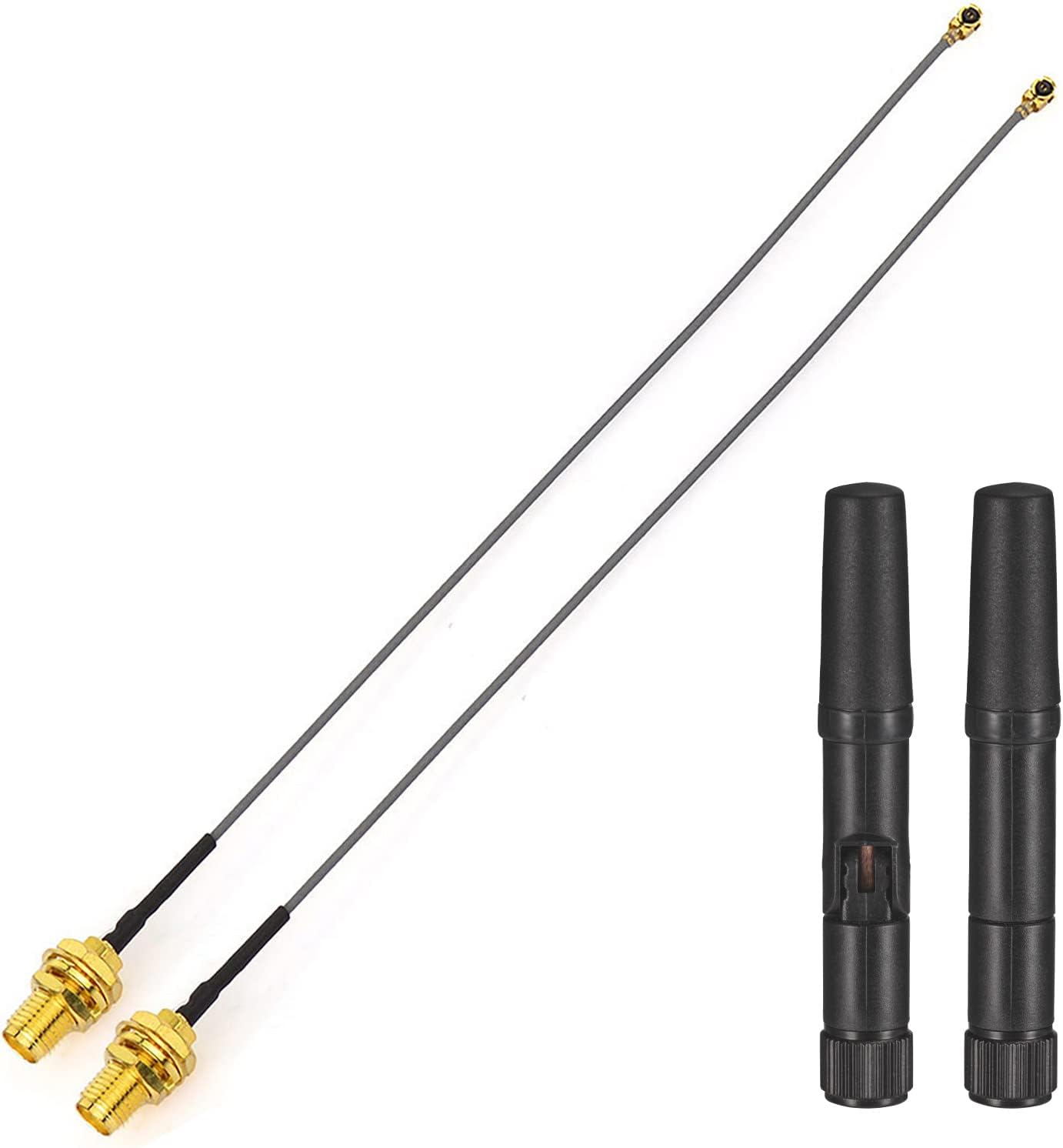

- Package Includes: 2pcs 2.4GHz 5GHz wifi antennas + 2pcs IPX U.FL to RP-SMA pigtail cables 15cm/6in
Product Information
| Package Dimensions | 6.93 x 4.25 x 0.35 inches |
| Item Weight | 0.634 ounces |
| Manufacturer | Eightwood |
| ASIN | B0B42G18JH |
| Country of Origin | China |
| Item model number | EWUA0167 |
| Customer Reviews | |
| Best Sellers Rank | |
| Is Discontinued By Manufacturer | No |
| Date First Available | June 14, 2022 |
