Description

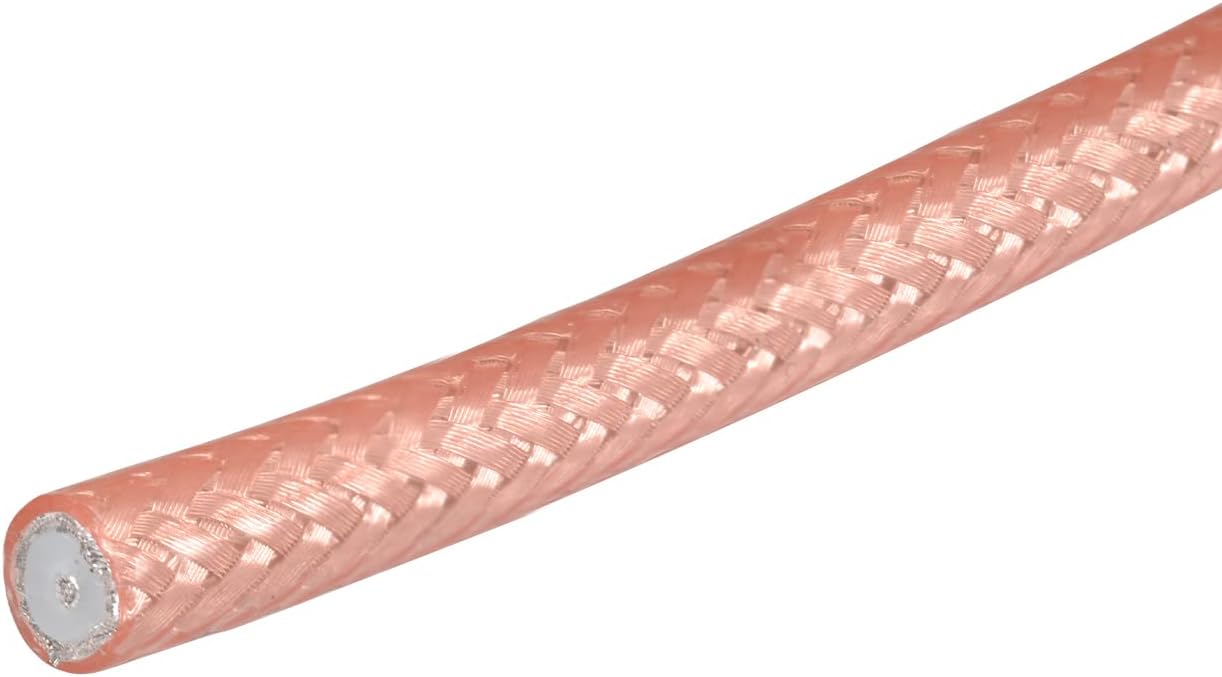

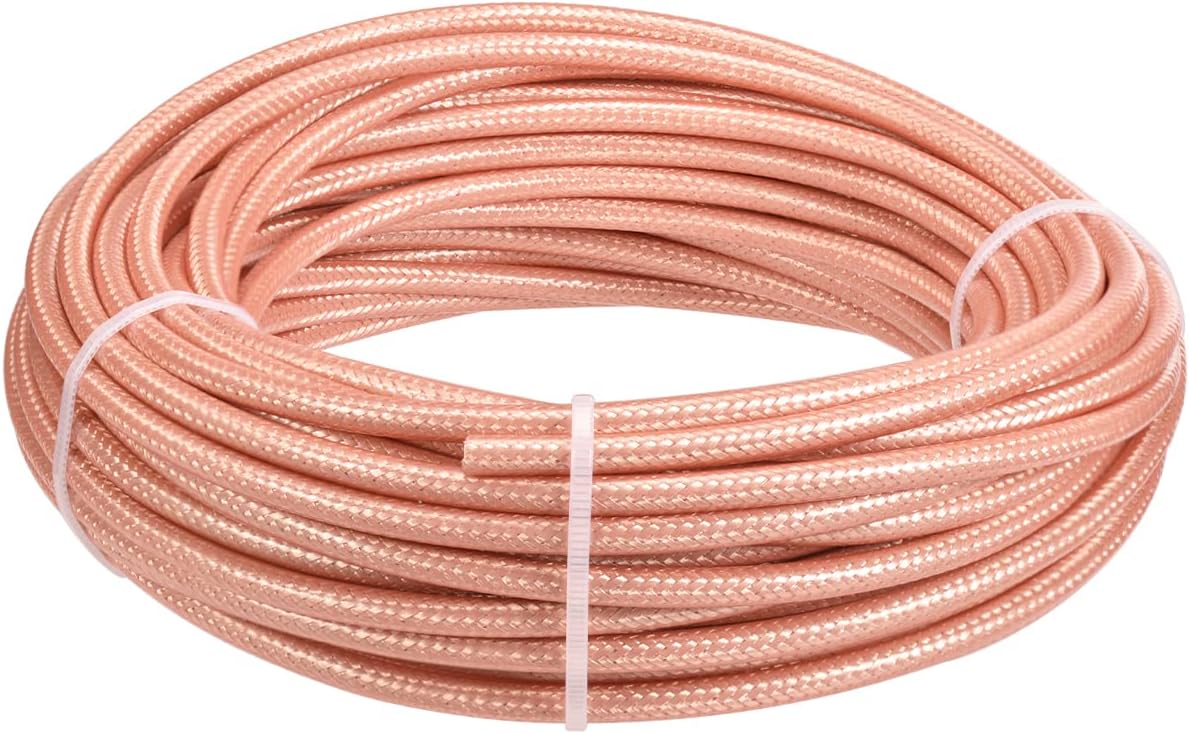

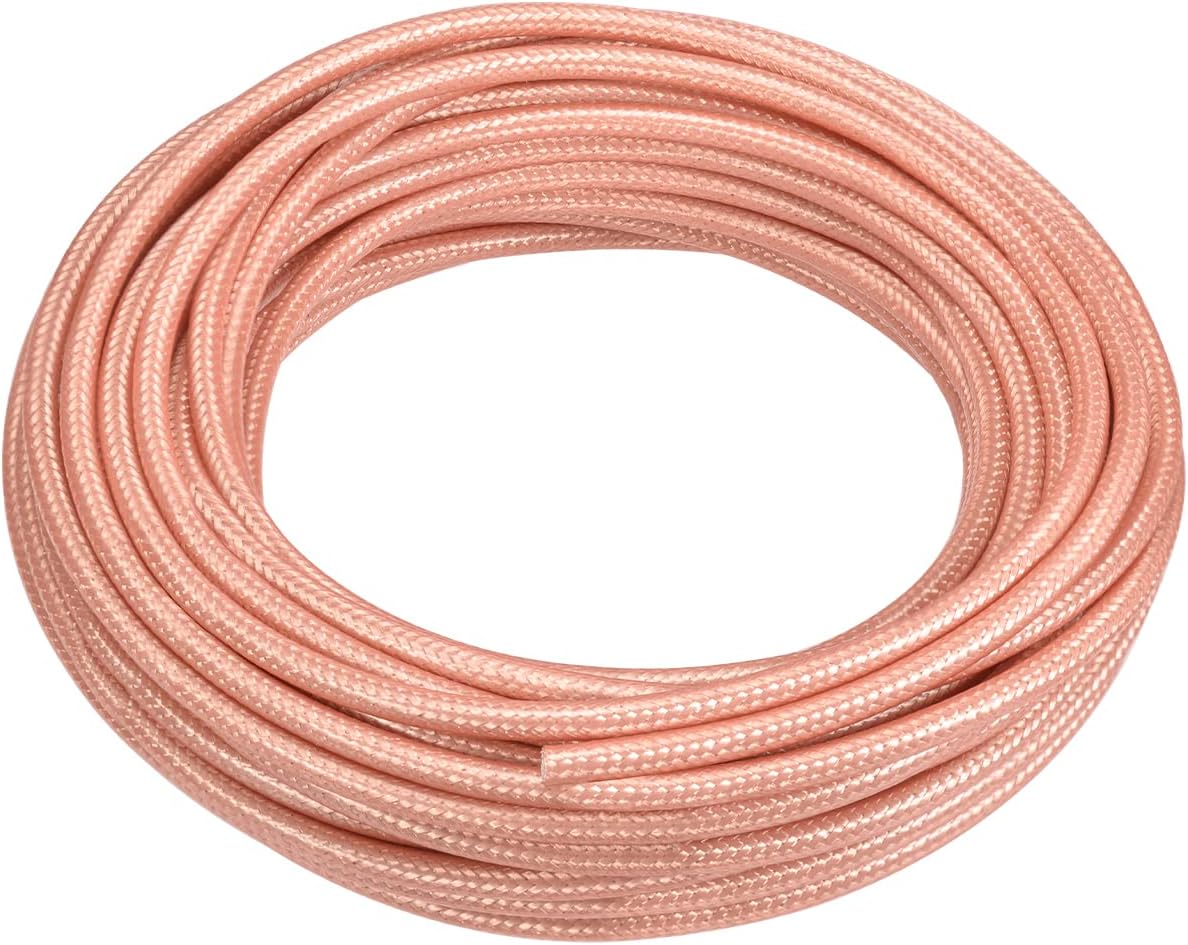

- RF double shielded RG400 coax cable 50 feet; Max. Operating Frequency: 12400MHz

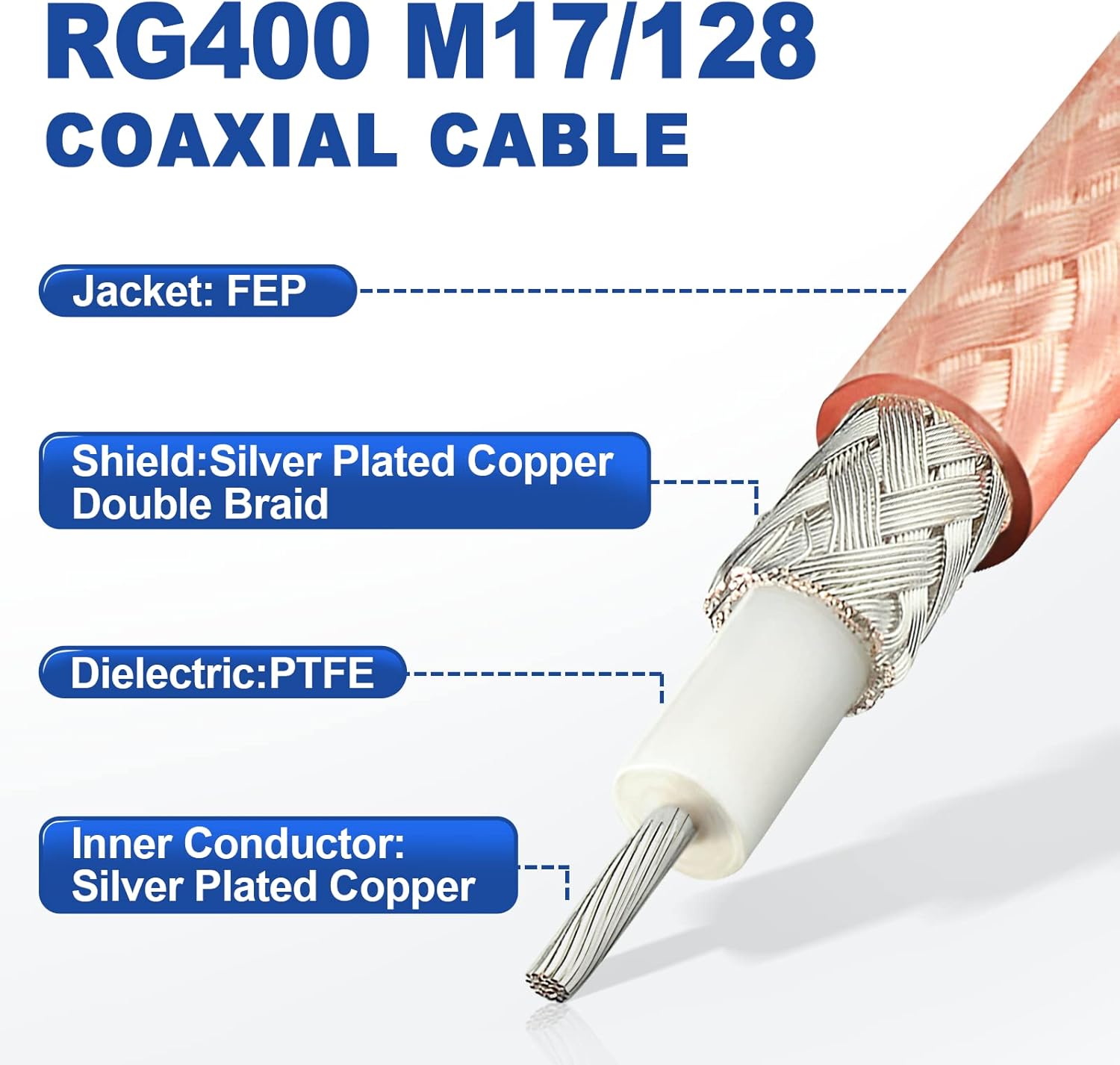

- Material--Inner conductor: silver plated copper | Insulator: PTFE (Teflon) | Outer conductor(shield) : silver plated copper double braid | Jacket: FEP
- Double Shielding: RG400 is with a double silver-plated copper braided shield, providing excellent protection against EMI and RFI

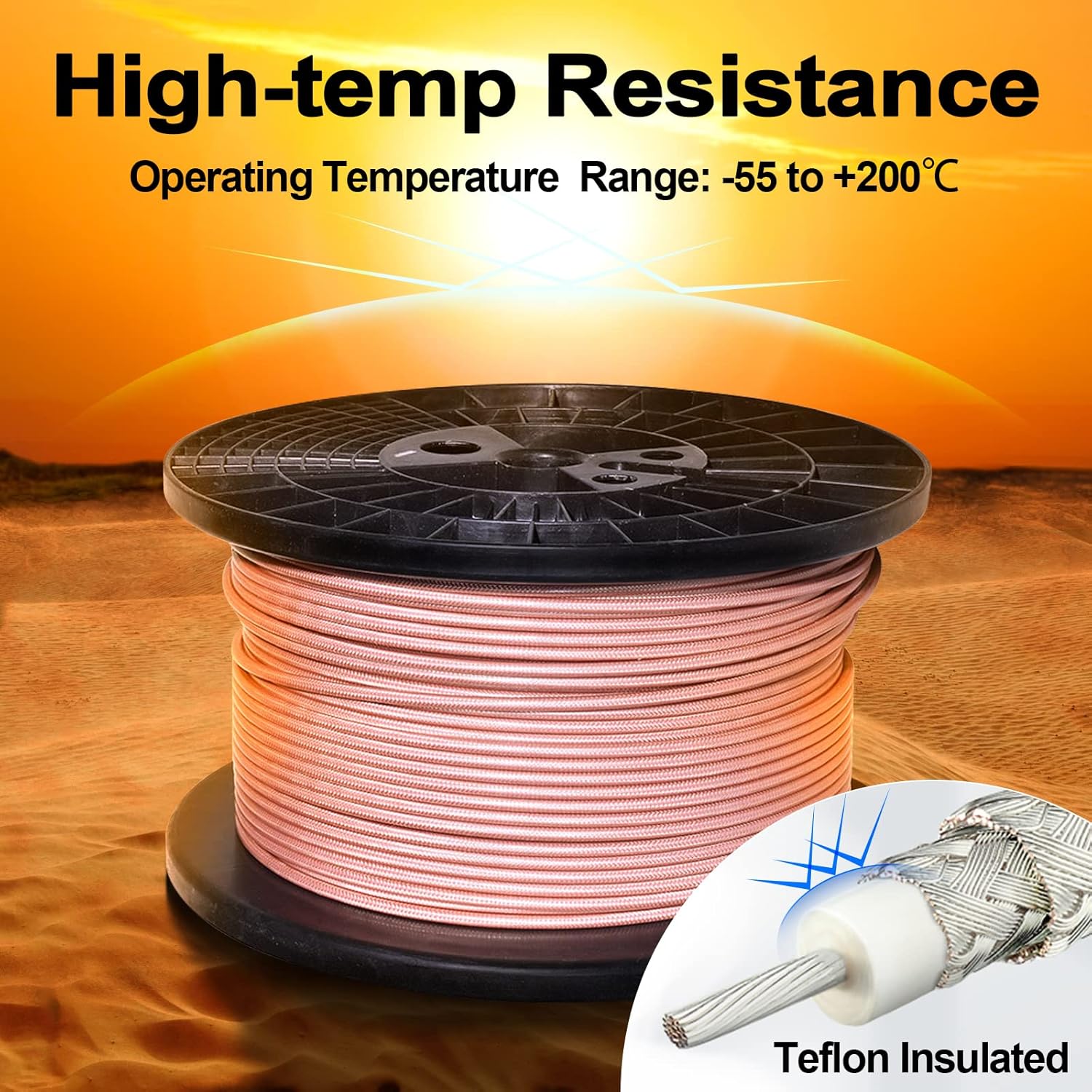

- High Temperature Resistance: featuring a PTFE dielectric and FEP jacket, the cable can withstand temperatures of up to 220℃
-
Application: base stations, mobile systems, radio systems, test cables. RG400 can be processed into jumpers with some 50-ohm connectors, including SO239, PL259, BNC, N-type, TNC, SMA, etc

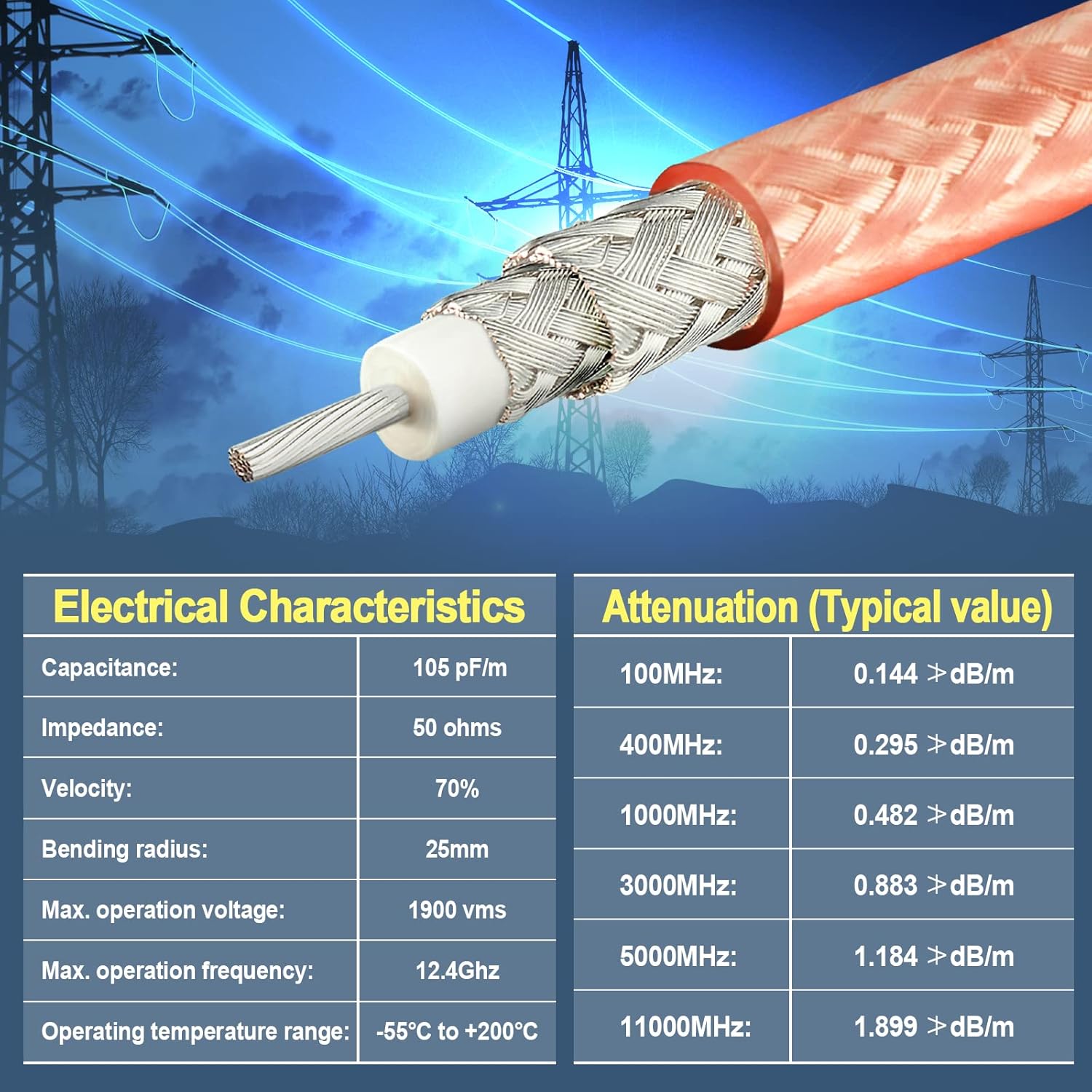

Specification:
Capacitance:105 (pF/m)
Impedance:50 ohms
Velocity:70%
Bending radius:25mm
Max. operation voltage:1900 vms
Max. operation frequency:12.4Ghz
Operating temperature range: -55°C to +200°C
Mil-Spec Equivalent: M17/128-RG400 Cable
