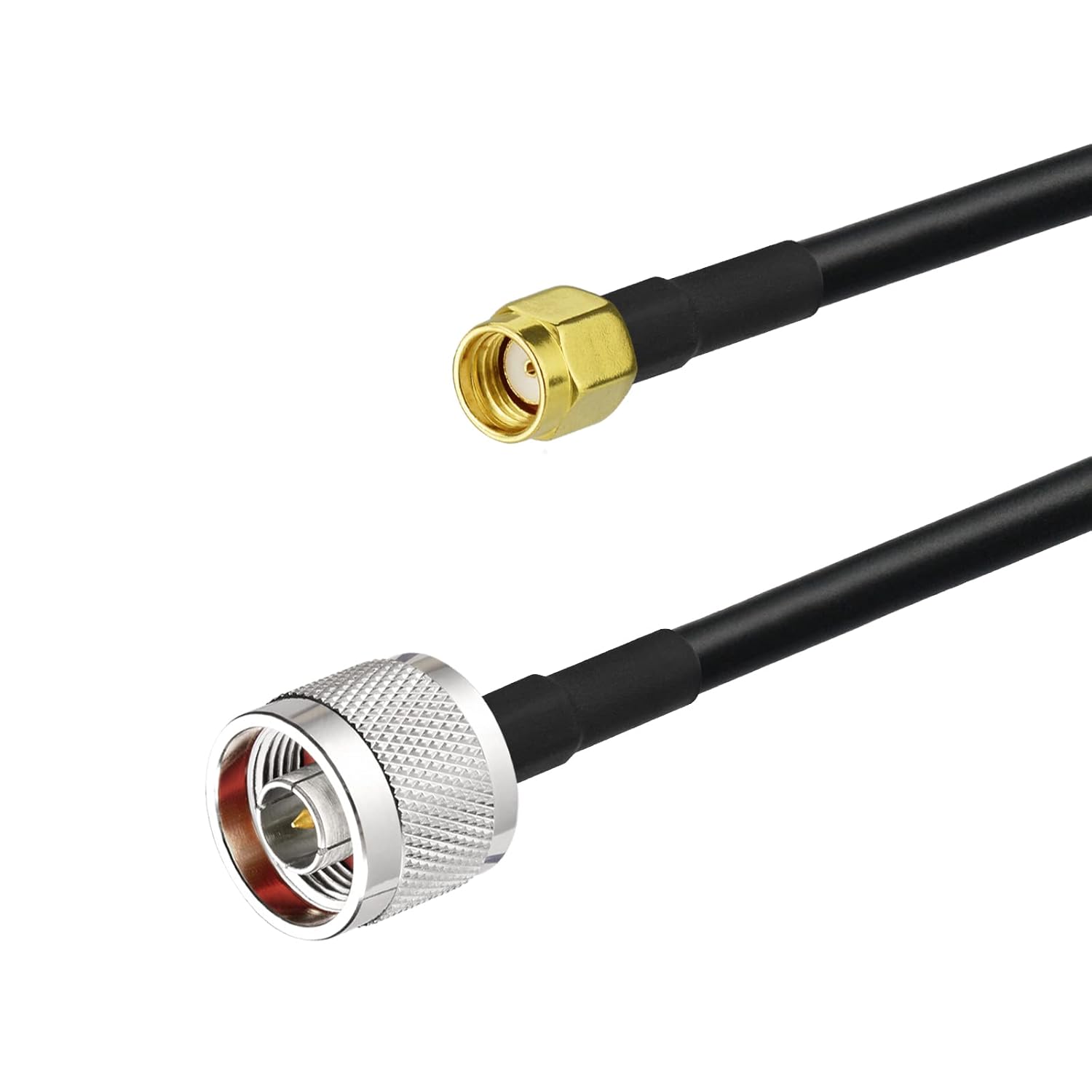

Cable Assembly:
Connector 1: RP-SMA male, material: brass, plated: gold
Connector 2: N male, material: brass, plated: nickel

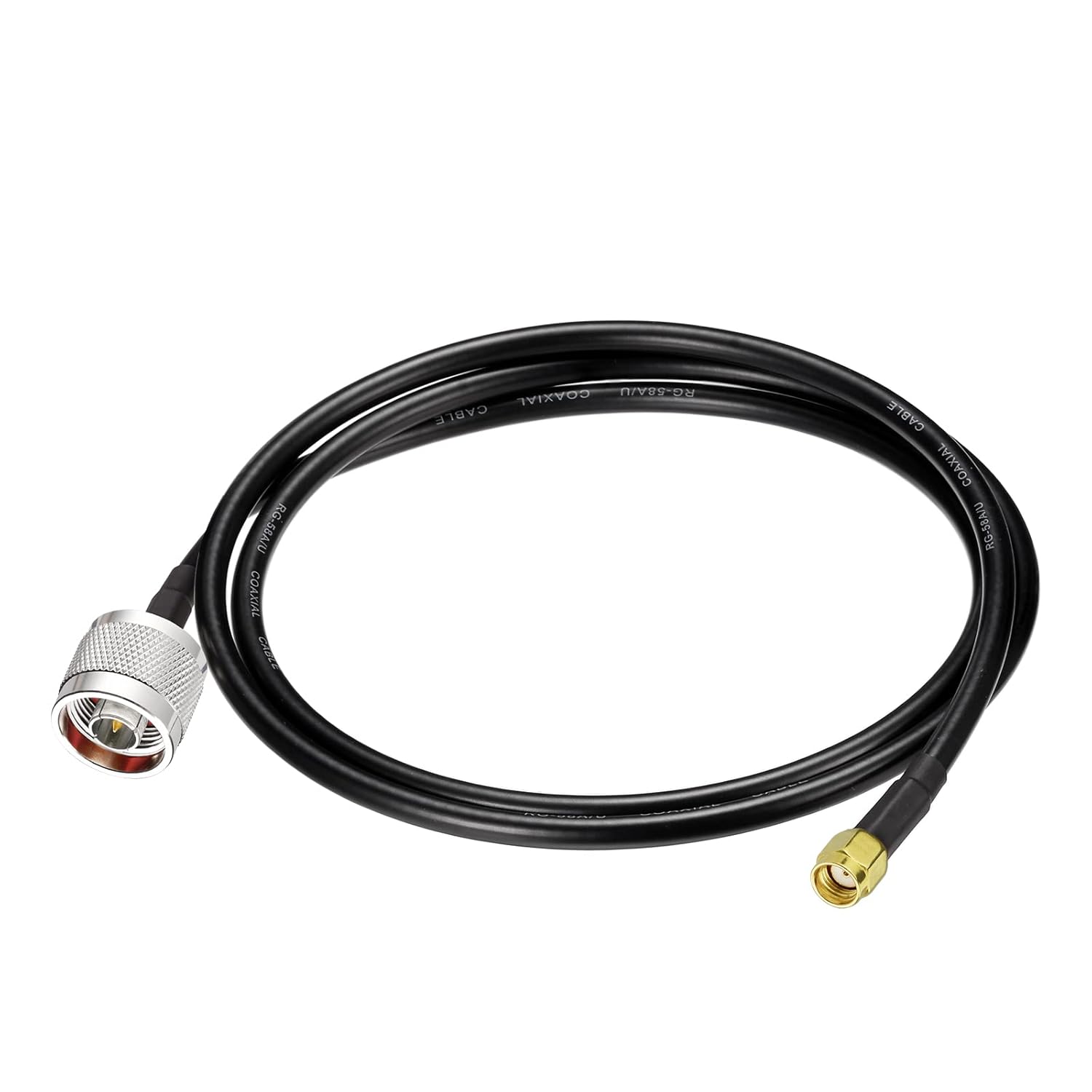

Cable type: RG58, Length: 100cm/ 3 feet
Adapter:

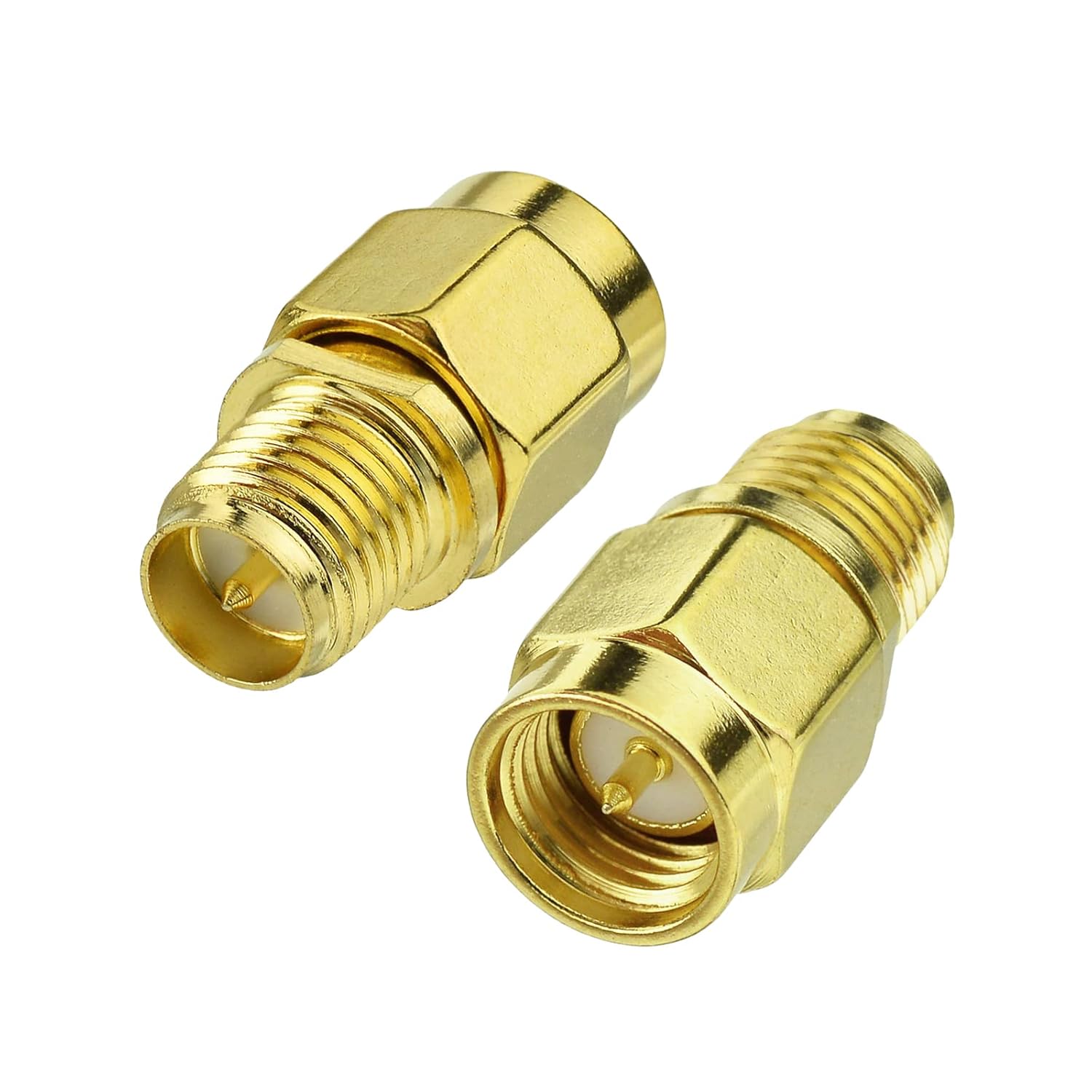

Adapter 1: RP-SMA female to SMA male, material: brass, plated: gold

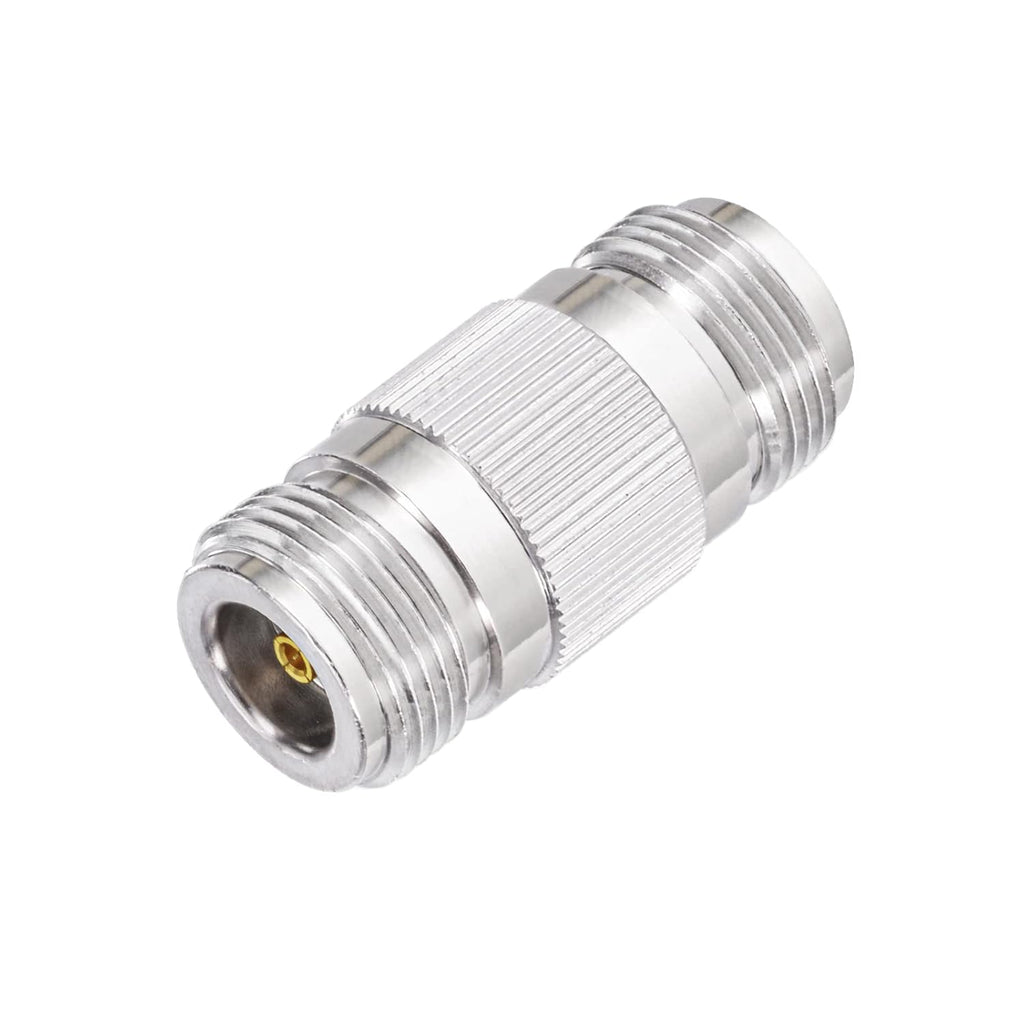

Adapter 2: N female to N female, material: brass, plated: nickel
The cable is compatible with the 2 adapters, so it’s available to make different connections for your different projects:
RP-SMA male to N male/ female is mostly used for WiFi
SMA male to N male for 3G 4G LTE or surge arrester
N female/male to SMA male for 915mhz Lora
Product Overview
- Brand: Eightwood
- Connector Type: RF Connector
- Cable Type: RG58
- Compatible Devices: Router, WiFi Antenna, 3G/4G LTE Device, LoRa Device
- Special Feature: Braided, Low Loss, Shielded
Product Features
- RP-SMA/ SMA to N extension cable kit, 50 ohms
- Package Includes: 1pc RP-SMA male to N male cable 3ft, 1pc SMA male to RP-SMA female adapter, 1pc N Female to N female adapter
- Application: 3G 4G LTE ADS-B antenna; yagi wifi antenna, wireless network router, PCIe network card; Helium hnt hotspot miner antenna
- Cable length:3 feet/100cm; Cable type: RG58 with flexibility, good V.S.W.R data and excellent shielding performance
- Connectors and adapters are made of quality copper to ensure reliable signal transmission and mechanically durability
