Description
Specification:
Working Voltage: DC 9V-16V
Working current: ≤60mA
FM/AM:
Frequency: 522-1710 kHz (AM), 87.5-108 MHz (FM)
Gain: 13±3 dB (AM), 16±3 dB (FM)
V.S.W.R: ≤2.5:1 (FM)

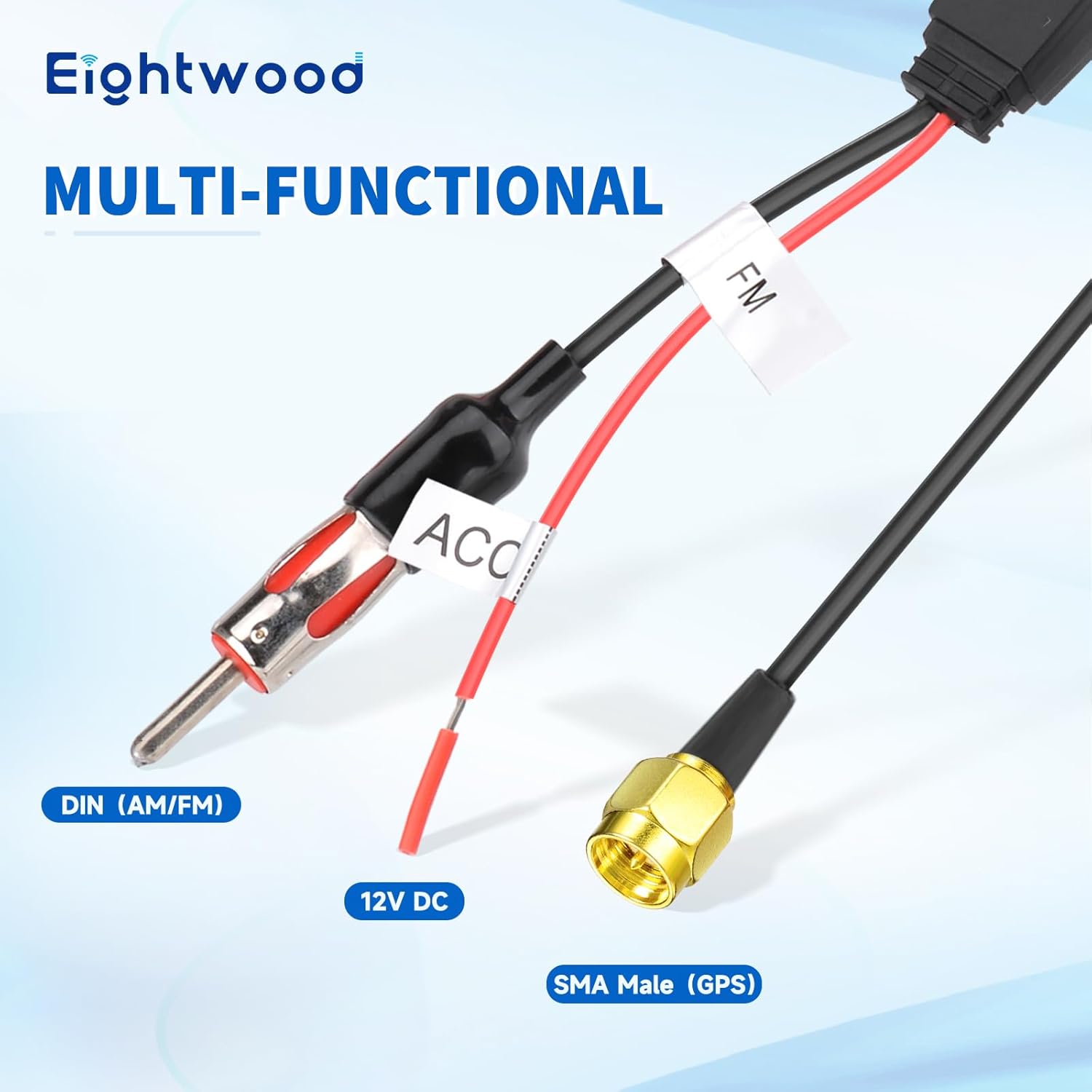

Connector: DIN plug, Cable:RG174, 5m/16.4 feet
GPS:
Frequency: 1575.42±1.023MHz
Gain: 28dB±3dB
Connector:SMA male, Cable:RG174, 5m/16.4 feet
Installation:Screwing through holes
Material:Weatherproof ABS

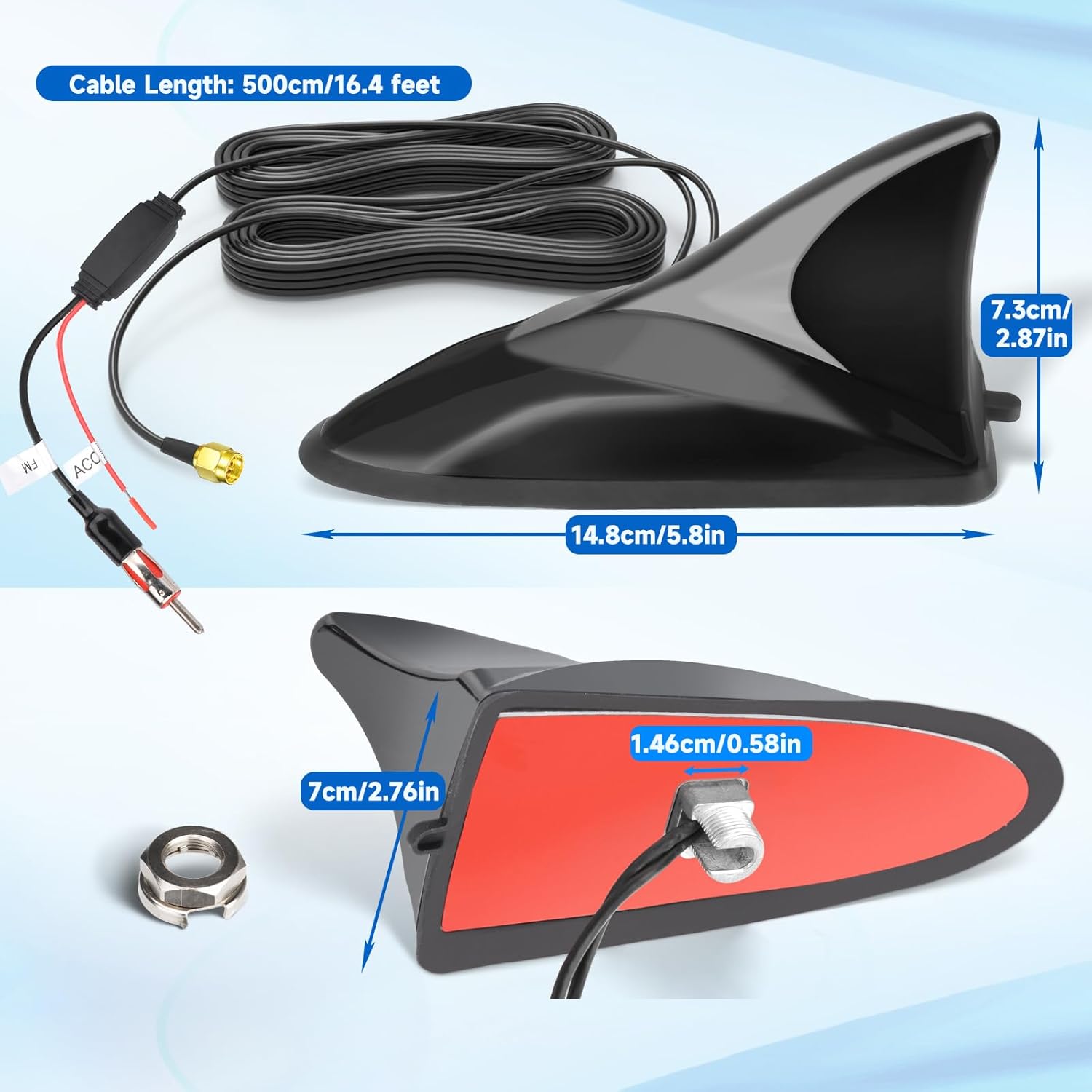

Antenna Dimensions:148*73*70mm/ 5.83*2.87*2.76in
Product Overview
- Antenna: Radio
- Brand: Eightwood
- Number of Channels: 5
- Impedance: 75 Ohm
- Maximum Range: 50 Feet
- Manufacturer: Eightwood
- Number of Items: 1
Product Features
- Multifunctional Antenna: This powered car antenna combines GPS, FM, and AM reception into a single design, delivering strong signal sensitivity and enhanced performance for your vehicle
- Application: Compatible with most cars, trucks, SUVs, and marine boats, this roof-mounted antenna works with radio receivers, stereo head units, CD radios, and navigation systems from brands like Pioneer, Sony, Alpine, Kenwood, Jensen, etc
- Enhanced Signal Reception: Features a built-in 12V amplifier to boost both FM/AM radio and GPS signals, ensuring clearer audio playback and more accurate GPS navigation
- Streamlined Design:the shark fin styling not only looks modern and fashionable on vehicles but also minimizes air resistance and reduces noise during your drive

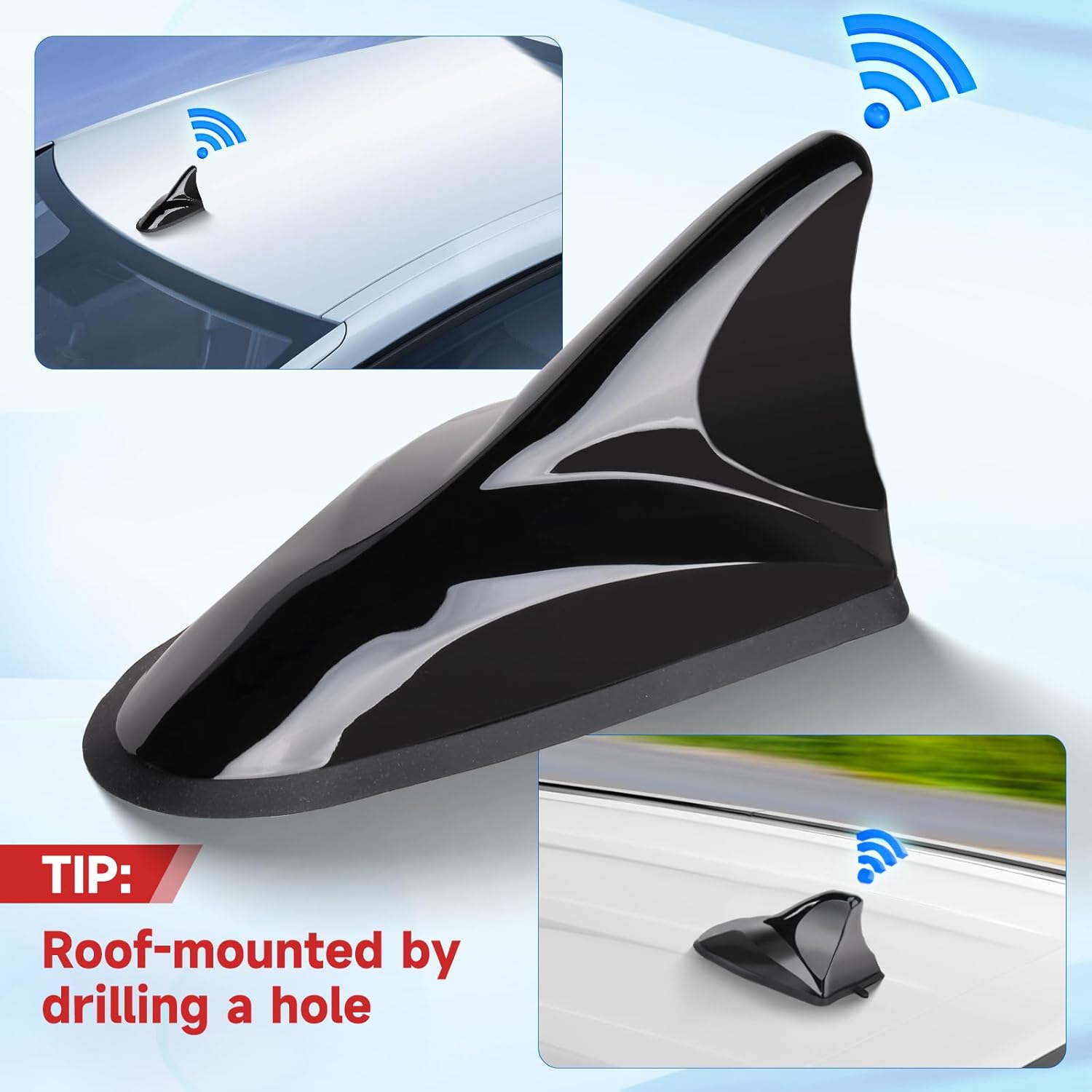

- Mounting Method: Requires hole drilling on the car roof. Package Includes: 1pc AM/FM GPS shark fin antenna
Product Information
| Package Dimensions | 9.25 x 3.15 x 2.76 inches |
| Item Weight | 11 ounces |
| Manufacturer | Eightwood |
| ASIN | B0DSG2TSG9 |
| Country of Origin | China |
| Item model number | EWUA0251 |
| Best Sellers Rank | |
| Date First Available | January 7, 2025 |
